26.5 GHz to 40.0 GHz WR-28 Ka-Band H-Plane Sectoral Horn Antenna
Model: HS-028-UBR-10-NA | Fan-Beam Radiation Pattern | 500W High Power

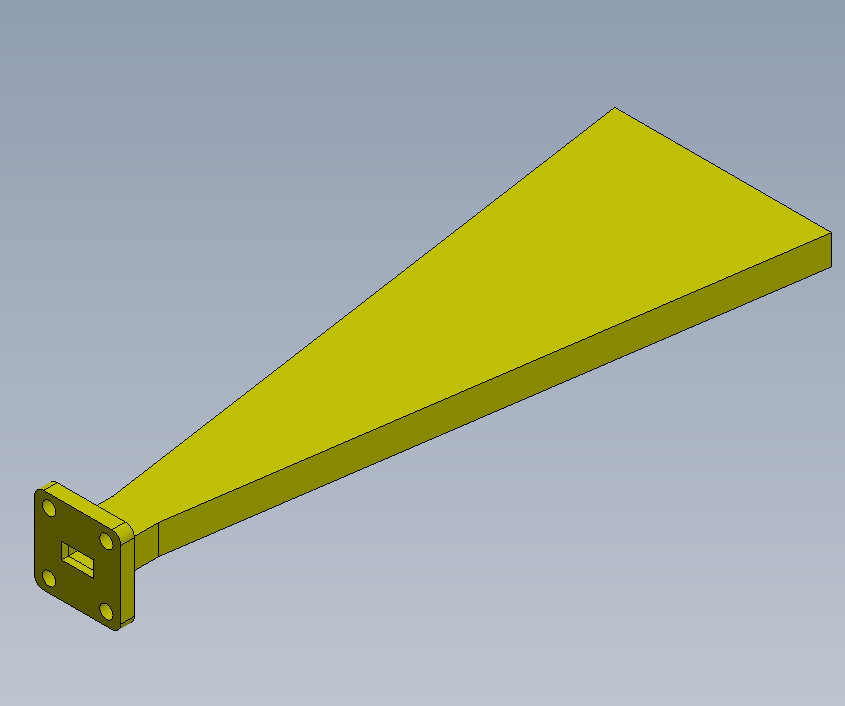

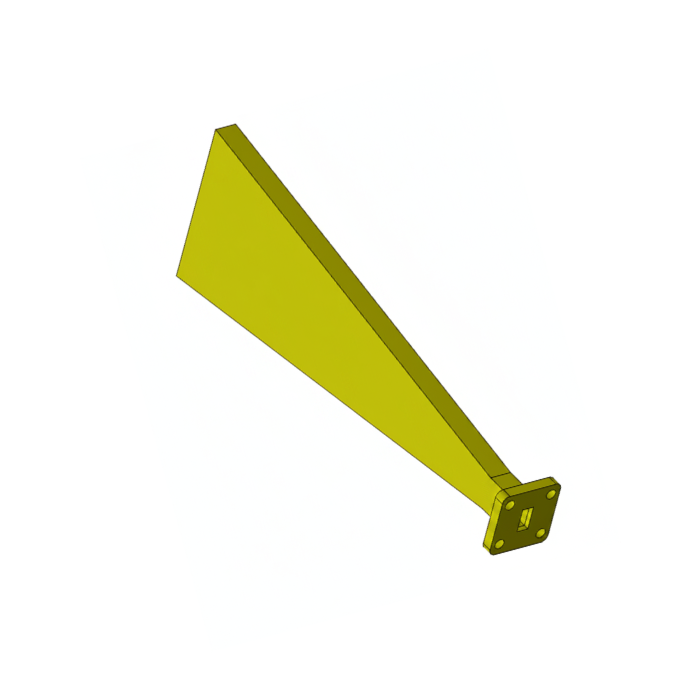

The HS-028-UBR-10-NA is a high-precision WR-28 H-Plane Sectoral Horn Antenna expertly engineered for precision wide-vertical illumination. Operating across the 26.5 GHz to 40.0 GHz spectrum, this antenna delivers a distinct Fan-Beam radiation pattern (17° H-plane x 99° E-plane). Equipped with a direct waveguide input and a standardized UG-599/U (UBR) flange, it ensures ultra-low-loss power transfer for high-intensity applications up to 500 Watts (CW). It is an essential instrument for EMI/EMC testing, broad-area surveillance, and precision antenna characterization in Ka-Band environments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 26.5 GHz to 40.0 GHz (Ka-Band) |
| Waveguide Standard | WR-28 / R320 / WG22 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 17° (Narrow Focused) |
| -3dB Beamwidth (E-Plane) | 99° (Expansive Fan-Beam) |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

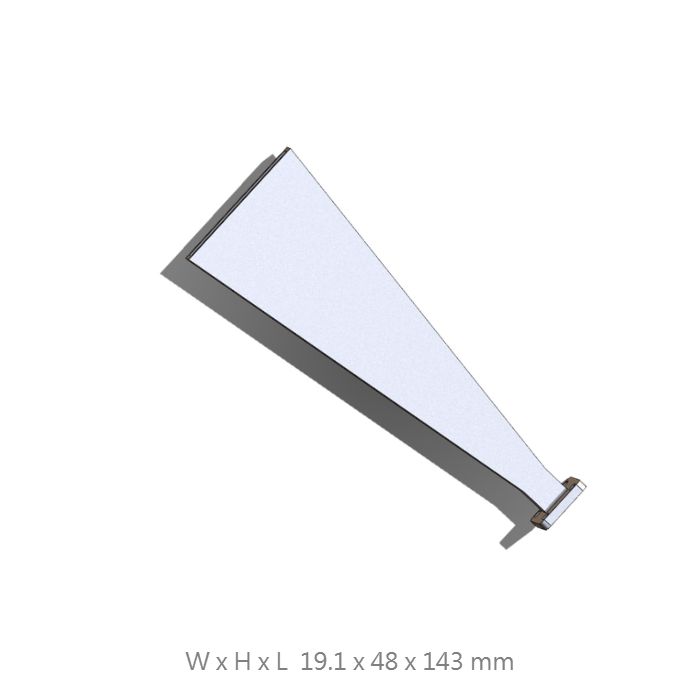

| Dimensions (W x H x L) | 19.1 x 48 x 143 mm |
| Waveguide Flange | UG-599/U (UBR Style) |
| Body Material | High-Grade Machined Aluminum |
| Input Interface | Direct Waveguide (No Adapter) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Expansive E-Plane Coverage
Specialized sectoral flare yields a massive 99° beamwidth in the vertical plane, ideal for broad-area illumination in EMC susceptibility testing and wide-vertical surveillance.
Direct Millimeter-Wave Integration
Designed with a direct WR-28 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-frequency setups.
500W Continuous Stability
Robustly machined from premium aluminum to handle high 500W CW power loads while maintaining structural integrity during high-intensity Signal Defense testing.
Precision Pattern Stability
Optimized for the 26.5-40.0 GHz band, ensuring gain flatness and pattern stability required for professional 5G research, Signal Management, and satellite link characterization.
Request a Professional Quote
Contact our engineering team to obtain individual radiation patterns, specialized PTZ control integration, or customized tripod mounting solutions.
