40 GHz to 60 GHz Wide Beam Standard Gain Horn Antenna

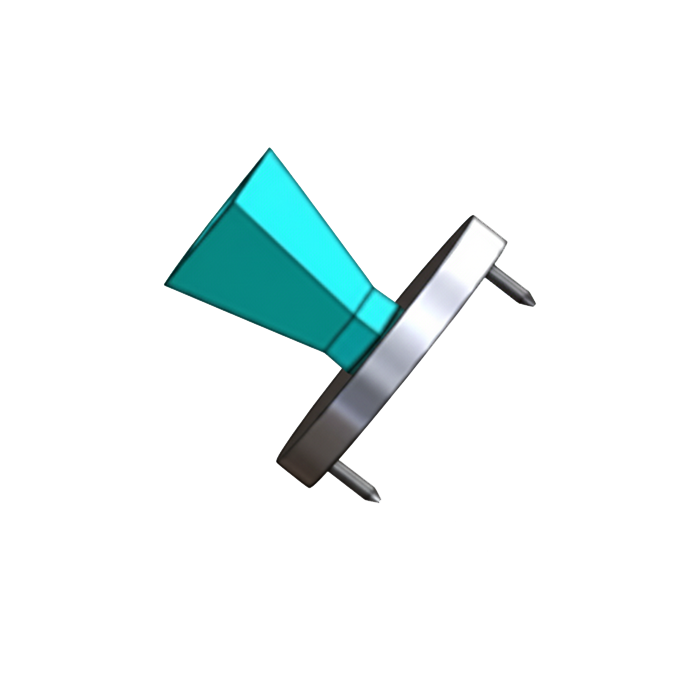

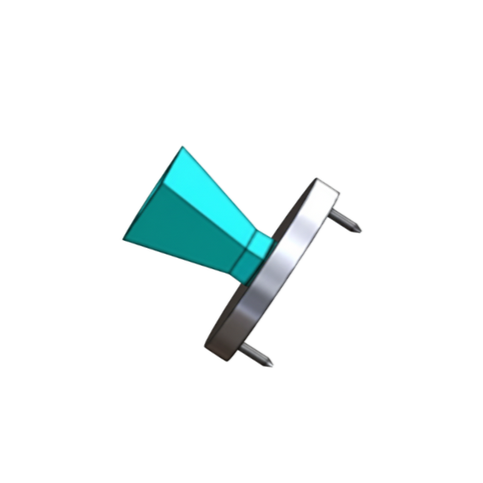

Model: WI-19-UG-10 | U-Band (WR-19) | 10 dBi Gain
The WI-19-UG-10 is a high-precision WR-19 Waveguide Horn Antenna specifically engineered for U-Band millimeter-wave applications. Delivering a 10 dBi gain with a specialized 54° wide beamwidth, it is optimized for professional Signal Security operations requiring broader area coverage. Precision-machined from aerospace-grade aluminum with a UG-compatible flange, it ensures maximum Signal Integrity and mechanical stability for advanced laboratory measurements and tactical Signal Defense deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 40 - 60 GHz (U-Band) |
| Waveguide Standard | WR-19 / WG24 / R500 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H/E Plane) | 54° / 54° (Wide Beam) |
| Maximum Power Handling | 150 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

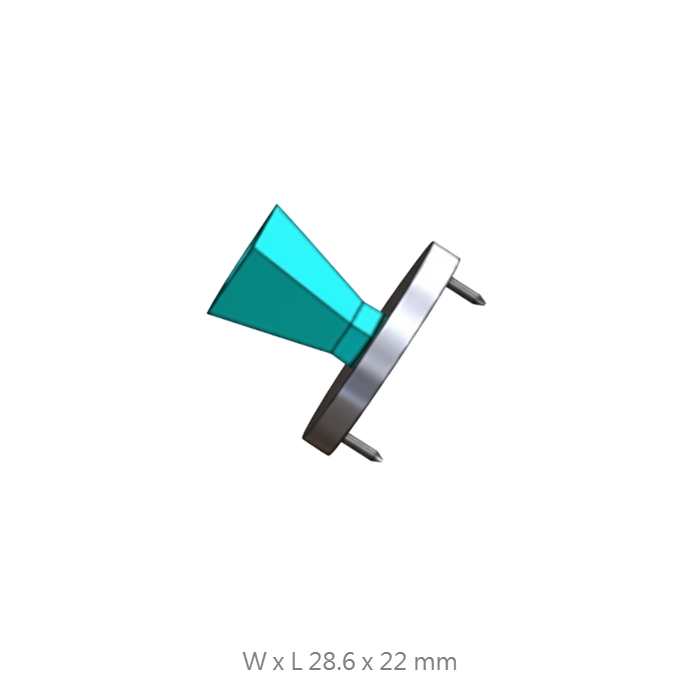

| Dimensions (W x L) | 28.6 x 22 mm |
| Net Weight | 10 g (Ultra-Lightweight) |
| Waveguide Flange | UG Compatible |
| Body Material | High-Grade Aluminum |
| Design & Manufacturing | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
Wide Beam Coverage
Features a specialized 54° beamwidth flare, ideal for broad-area Signal Security monitoring and tactical millimeter-wave surveillance.
Precision Signal Integrity
Optimized WR-19 geometry ensures low VSWR and predictable radiation patterns for mission-critical U-Band measurements.
Compact Aluminum Build
At only 10g, the aerospace-grade aluminum construction provides superior portability and rigid stability for complex lab setups.
Consolidated Performance Data
Supported by a comprehensive performance database for accurate system calibration and repeatable, traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, mechanical drawings, or customized U-Band solutions.
