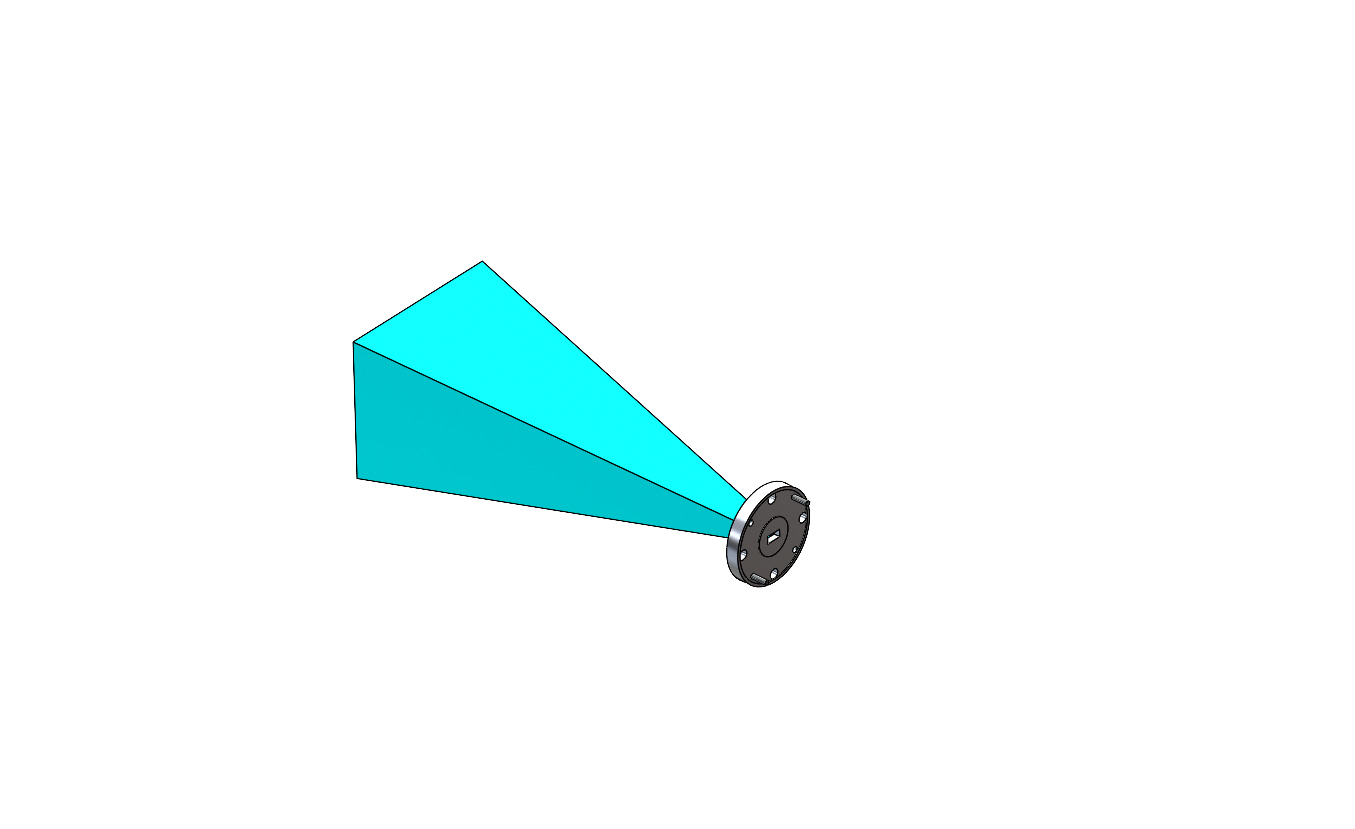

WR-19 High-Gain Standard Horn Antenna
Model: WI-19-UG-25 | 40 - 60 GHz | 25 dBi | U-Band Precision
The WI-19-UG-25 is a high-performance U-Band Waveguide Horn Antenna specifically engineered for precision measurement and high-frequency surveillance within the 40 GHz to 60 GHz spectrum. Optimized for Signal Security operations and advanced antenna range calibration, it ensures low VSWR and an exceptional 25 dBi gain. Precision-machined with a standardized UG Waveguide Flange and a lightweight form factor (60g), it serves as a definitive reference standard for EMI/EMC testing and professional Signal Defense infrastructure.
Electrical & RF Performance
| Waveguide Standard | WR-19 (U-Band) |
| Frequency Range | 40 - 60 GHz |
| Standard Gain | 25 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 150 Watts |
| 3dB Beamwidth (H/E Plane) | 12° / 12° |
Mechanical & Physical Specs

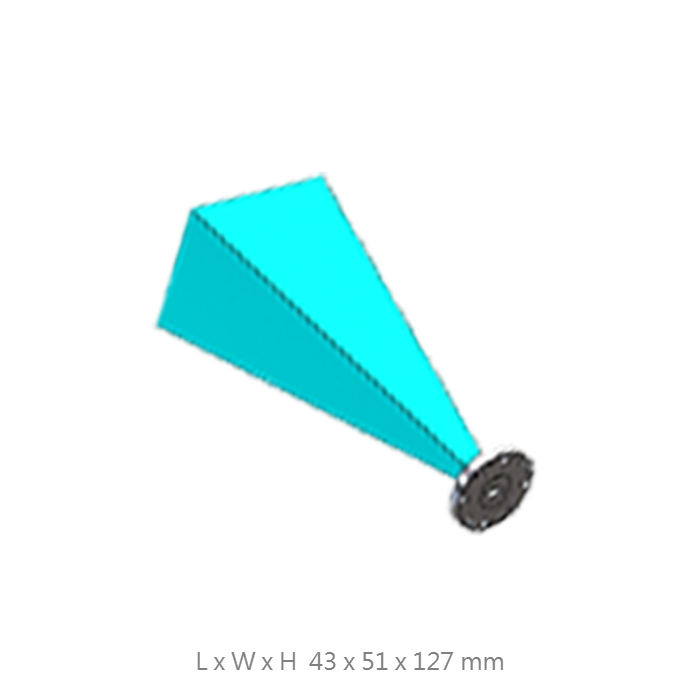

| Dimensions (LxWxH) | 43 x 51 x 127 mm |
| Net Weight | 60 g |
| Waveguide Flange | UG Flange |
| Material | Premium Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
U-Band Millimeter-Wave Ready
Engineered for the 40-60 GHz millimeter-wave spectrum, providing the stable radiation envelope necessary for precision chamber calibration and high-frequency signal management.
Superior Signal Security
The precision aluminum construction ensures low return loss and unwavering stability in professional Signal Defense and interference mitigation sub-systems.
Ultra-Lightweight Integration
Weighing only 60g, this radiator offers industrial-strength reliability with the portability required for field tactical deployments and integrated monitoring systems.
Standardized UG Interface
Features a standardized UG waveguide flange for secure, low-leakage connection to high-frequency distribution networks and communication sub-systems.
Get a Quote / Custom U-Band Solutions
Contact us for specialized gain configurations, alternative connector types, or customized mounting adapters.
