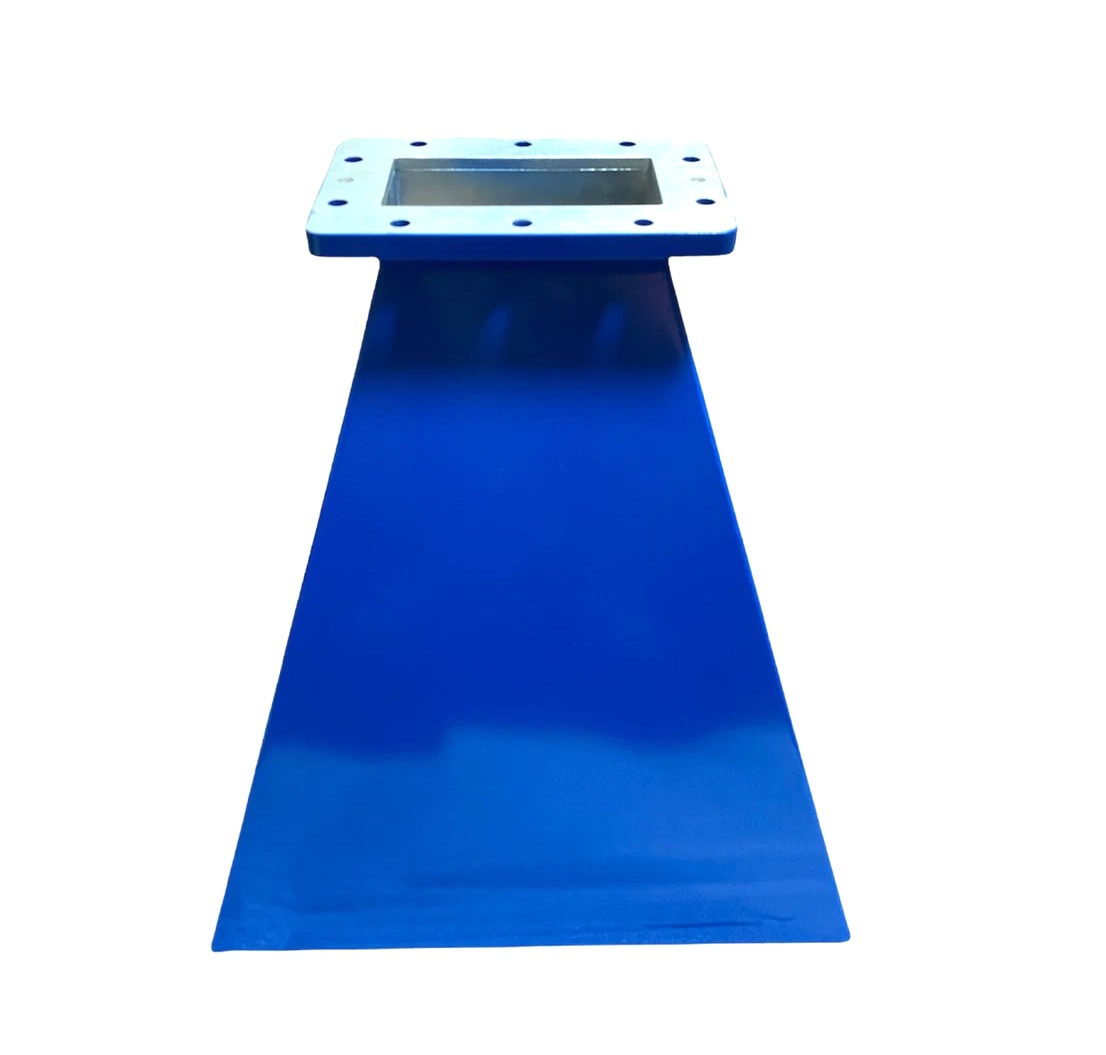

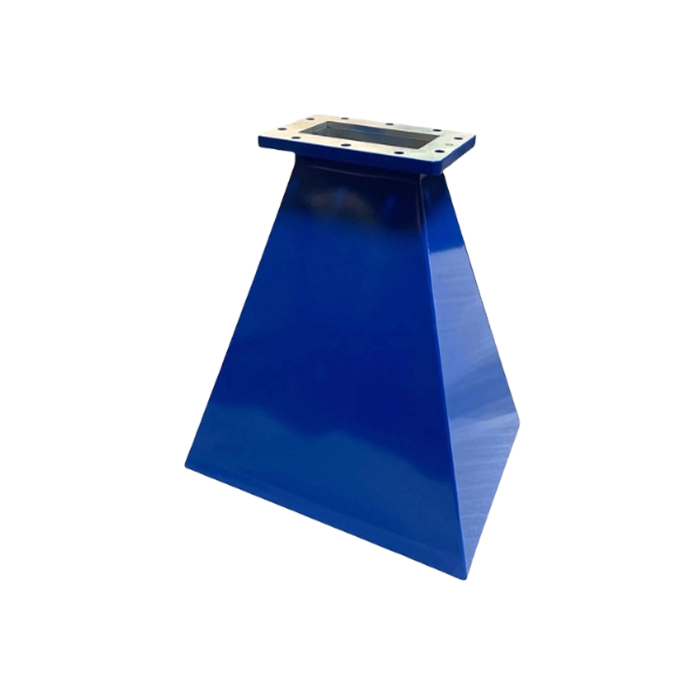

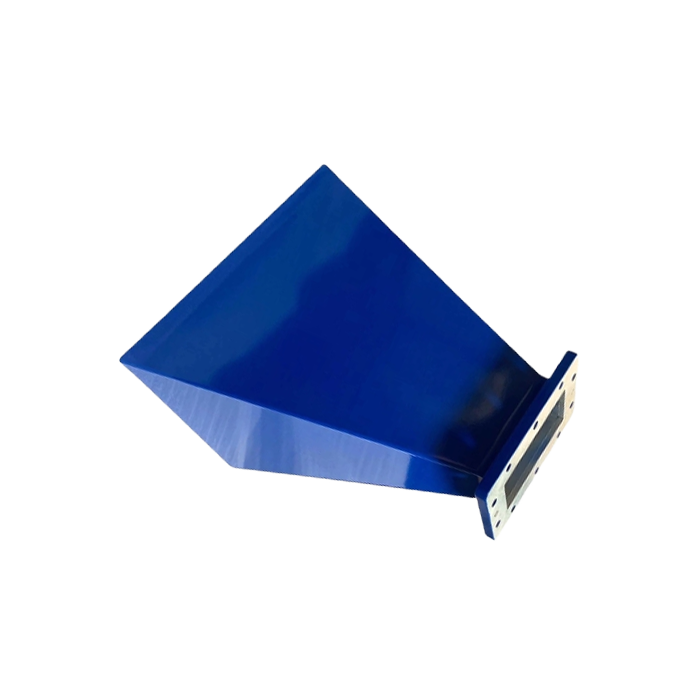

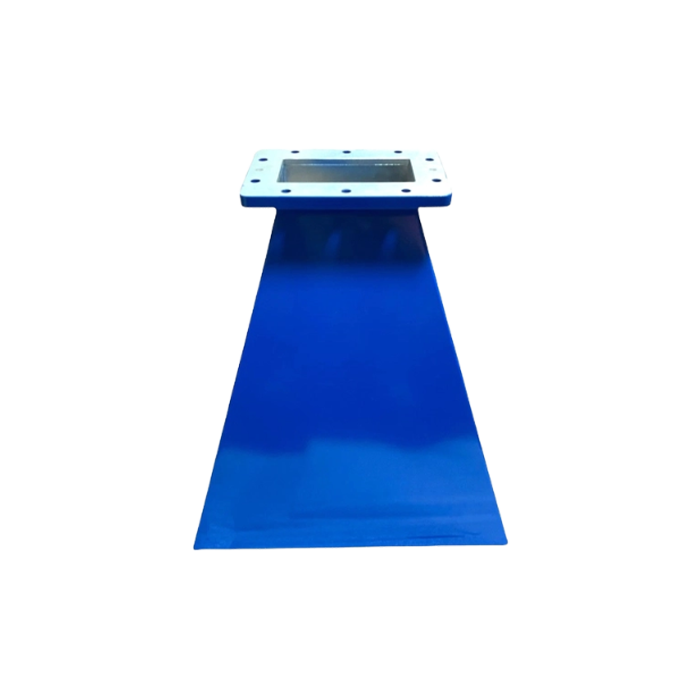

WI-430-A1-15 WR-430 Horn Antenna
1.72 - 2.60 GHz | 15 dBi Gain | 1kW Power Capacity
The WI-430-A1-15 is a high-performance WR-430 LS Band Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for precision electromagnetic measurements and high-power operations within the 1.72 GHz to 2.60 GHz spectrum. Meticulously designed for the LS Band, this antenna delivers an enhanced directionality with an impressive 15 dBi nominal gain, which provides a significant 5 dBi increase over traditional standard gain horns. This model features a direct WR430 waveguide input with a standardized UDR (CPR-430) flange layout, completely eliminating insertion loss from extra coaxial transitions and maximizing signal fidelity. Robustly machined from high-grade structural aluminum alloy in Taiwan, the specialized launch geometry generates highly focused 30° horizontal and 32° vertical beam envelopes, ensuring reduced side-lobe interference and precise targeting. Capable of handling extreme continuous wave power loads up to 1000 Watts (CW), this 1.65 kg manageable instrument serves as a critical asset for high-energy EMI/EMC testing setups, long-range surveillance arrays, chamber reflectivity measurements, and high-intensity transmission calibration grids demanding uncompromised RF performance parameters.
Electrical & RF Performance
| Frequency Range | 1.72 GHz - 2.60 GHz |
| Waveguide Interface | WR-430 (UDR Flange) |
| Nominal Gain | 15 dBi |
| Max Power Handling | 1000 Watts (CW) |
| Beamwidth (H/V) | 30° / 32° |

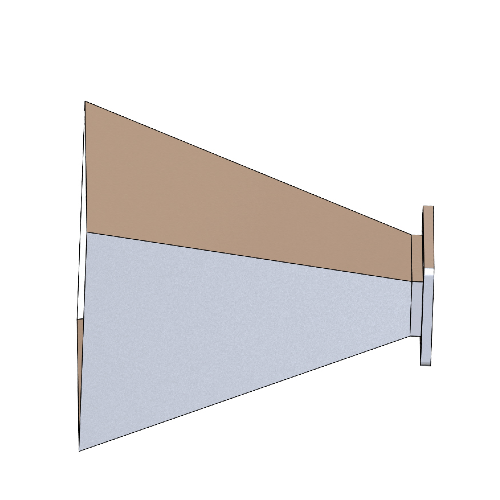

Mechanical & Physical

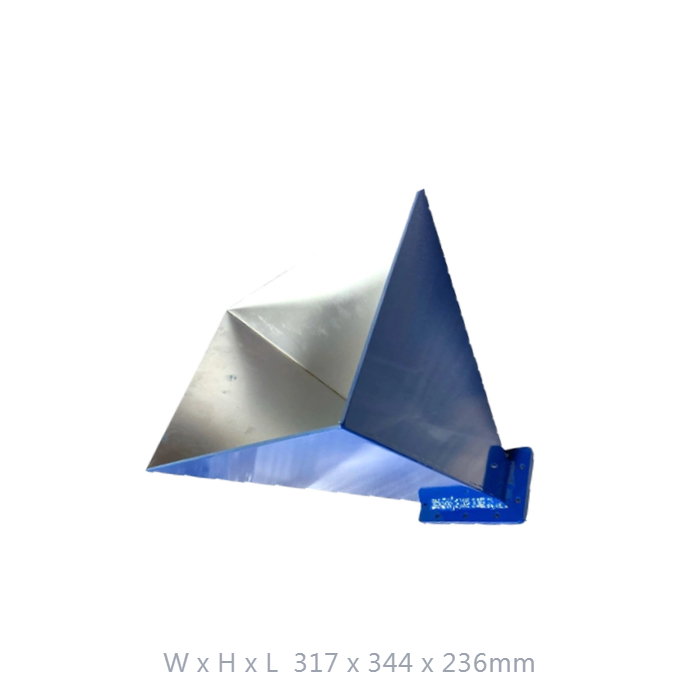

| Dimensions | 236 x 317 x 344 mm |
| Weight | 1.65 kg |
| Flange Style | UDR (CPR-430 Mating Layout) |
| Body Material | Precision Machined Aluminum Alloy |
Enhanced 15 dBi Gain
Provides a substantial 5 dBi increase over standard models, offering superior signal amplification for long-range weak signal detection matrices.
Focused Signal Control
Narrower beamwidths (30° H / 32° E) enable precise boresight targeting, essential for chamber reflectivity measurements and automated range validations.
1kW Power Capacity
Robust internal structural design effortlessly handles 1000 Watts CW power transmission, ideal for high-power jamming simulation or intense transmission tests.
Direct WR430 Interface
Utilizes a standard UDR flange for direct waveguide connection, minimizing mismatch reflections and insertion losses from extra coaxial adapters.
