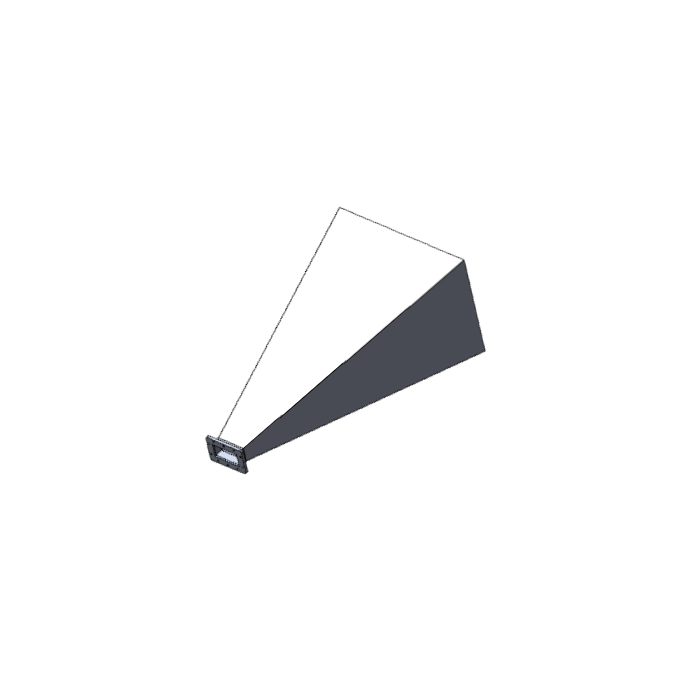

| Frequency Range Class | 1.72 GHz to 2.60 GHz (Continuous L/S-Band Spectral Support) |
| Waveguide Standard Size | EIA WR-430 Layout Geometry Profile Architecture |
| Nominal Gain (Typical) | 20 dBi (High-Gain Precision Reference) |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 1000 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H-Plane) | 20° (Focused Boresight Precision Horizon) |
| -3dB Beamwidth (E-Plane) | 18° (Precision Vertical Focus Elevation) |

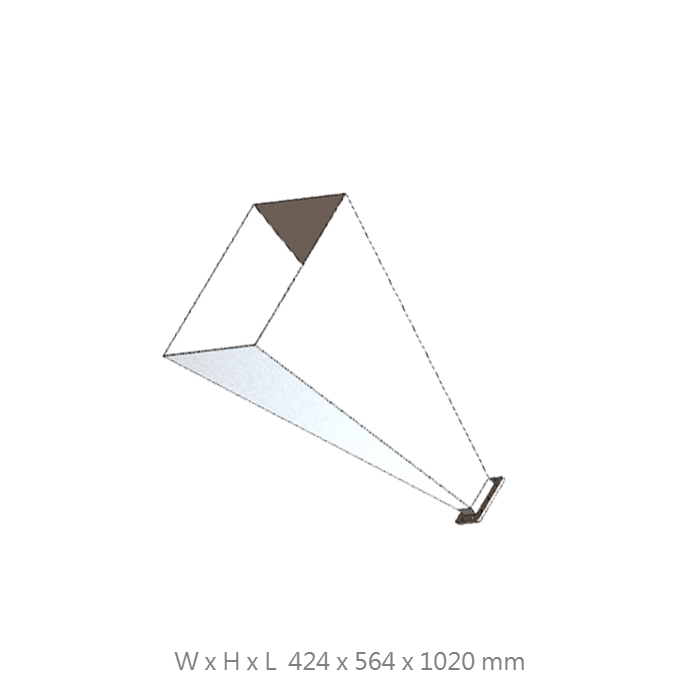

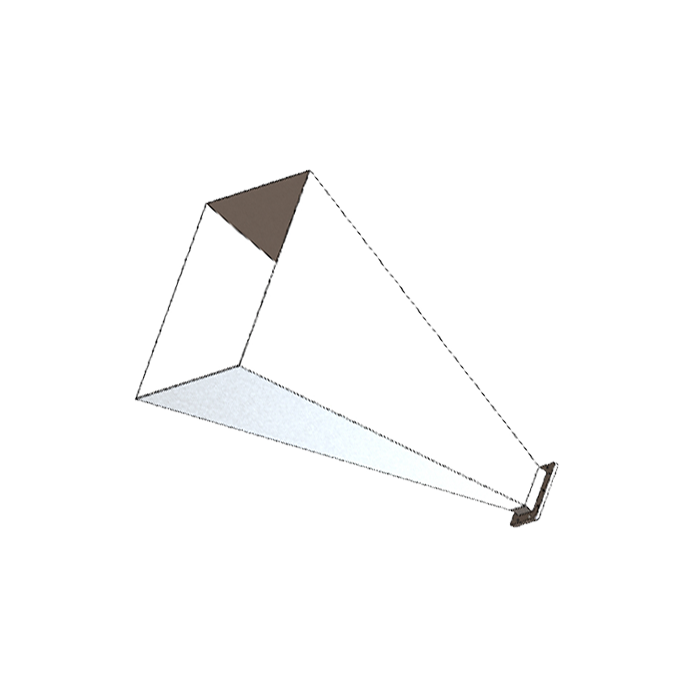

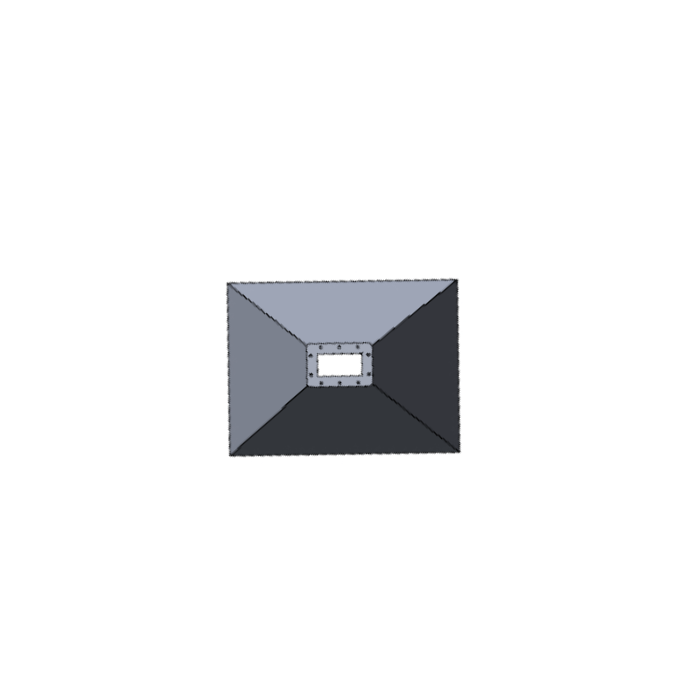

| Physical Dimensions (W x H x L) | 424 x 564 x 1020 mm |
| Net Weight Profile | 6800 g / 6.8 kg (Precision Rigid Solid Assembly) |
| Waveguide Connection Flange | Standardized UDR Style Waveguide Flange Interface |
| Structural Body Material | High-Grade Structural High-Conductivity Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Industrial Grade) |
Provides highly intensified signal amplification with highly narrow, focused beam envelopes, essential for long-range calibration and advanced boresight microwave traces.
Robust internal aluminum design effortlessly sustains high 1kW CW transmission, ideal for comprehensive radar simulation grids and high-field immunity testing.
Features a native WR-430 interface with a universal UDR flange layout, bypassing coaxial transitions to provide the lowest possible insertion loss and maximum trace reproducibility.
Meticulously manufactured from high-grade structural aluminum alloy in Taiwan, delivering superior thermal dissipation tracking coefficients and long-term electromechanical calibration longevity.
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized tripod mounting interfaces, or customized waveguide flange requirements.
