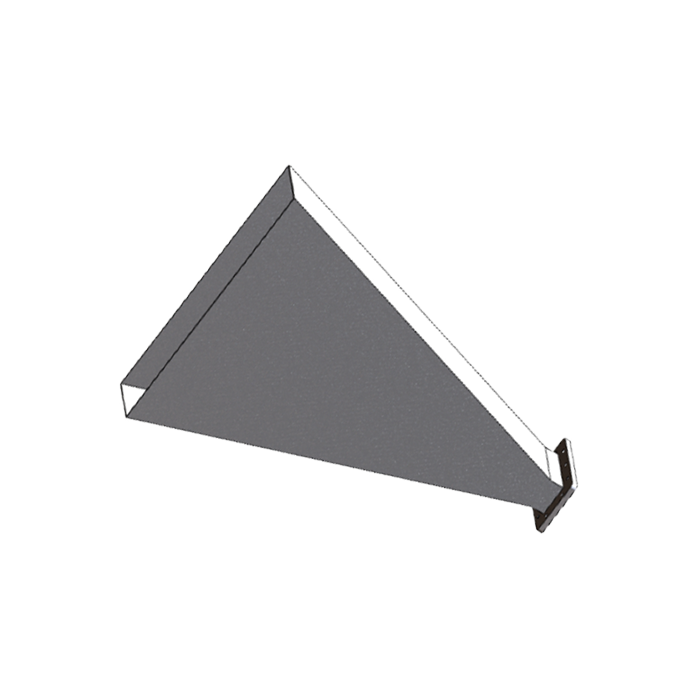

| Frequency Range Class | 1.72 GHz to 2.60 GHz (L/S-Band Continuous Optimization) |
| Waveguide Standard Size | EIA WR-430 Layout Geometry Architecture |
| Nominal Gain (Typical) | 15 dBi |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 1000 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H-Plane) | 112° (Expansive Sector Fan-Beam Optimization) |
| -3dB Beamwidth (E-Plane) | 18° (Narrow Focused Elevation Envelope) |
| Nominal System Impedance | 50 Ohms |

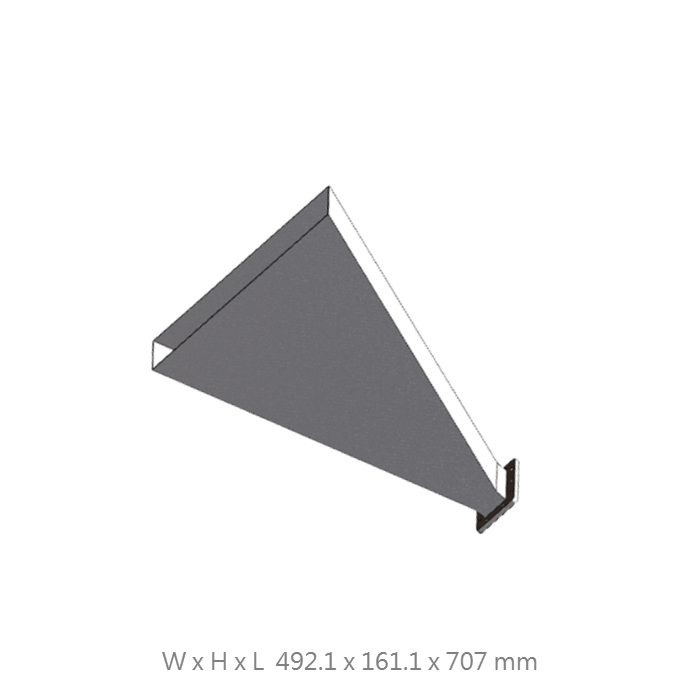

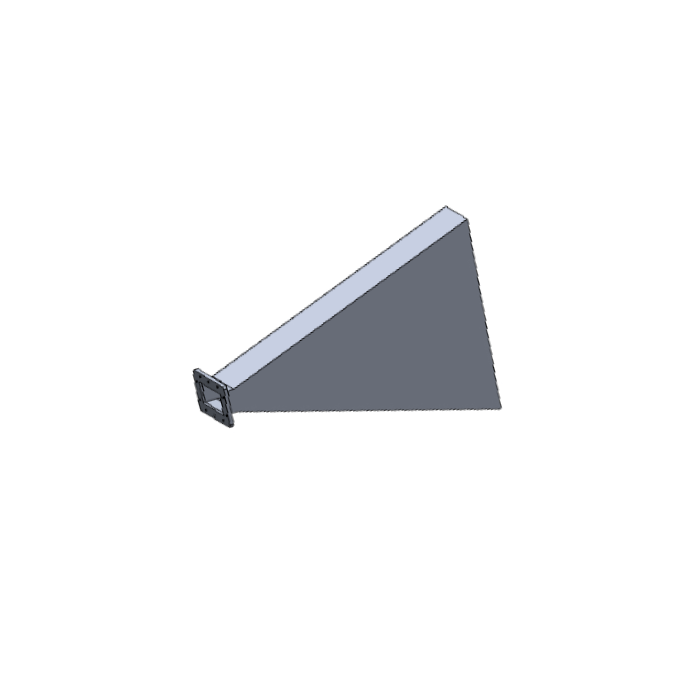

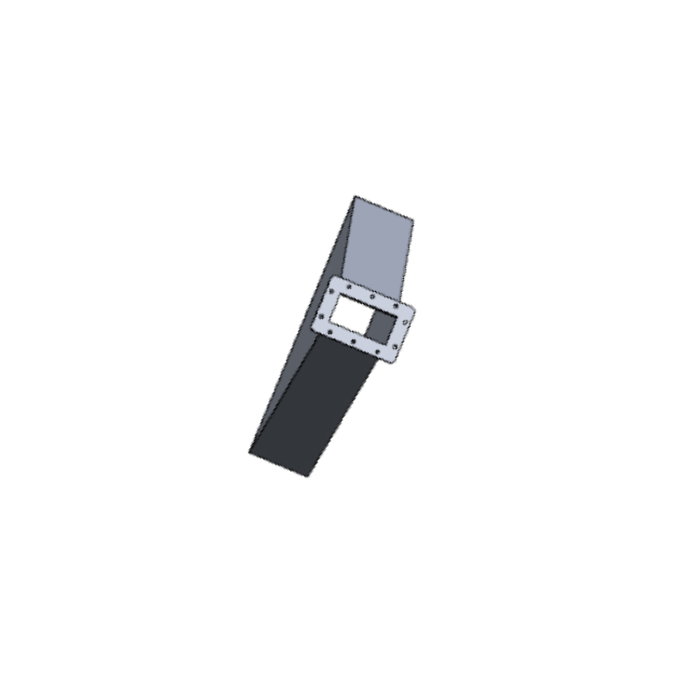

| Physical Dimensions (W x H x L) | 492.1 x 161.1 x 707 mm |
| Net Weight Profile | 3200 g / 3.2 kg (Precision Balanced Assembly) |
| Waveguide Connection Flange | Standardized UDR Style Flange Layout Interface |
| Input Interface Launcher | Direct Waveguide Input (No Adapter Power Loss) |
| Structural Body Material | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |

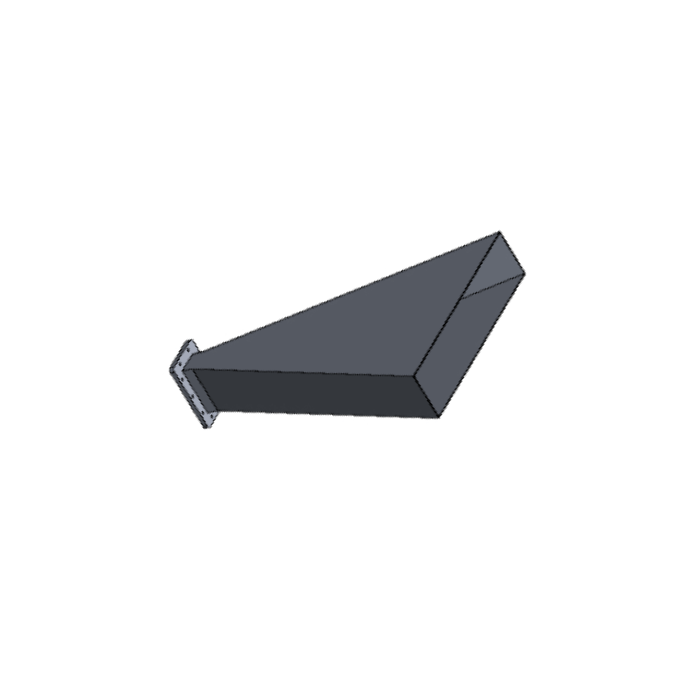

Specialized sectoral flare yields a massive 112° beamwidth in the horizontal plane, ideal for broad-area illumination in EMC susceptibility testing and multi-point Signal Defense surveillance fields.
Designed with a direct WR-430 interface for ultra-low-loss power transfer, eliminating transition losses associated with coaxial adapters in high-precision setups.
Robustly machined from premium aluminum to handle massive 1kW CW power loads while maintaining structural integrity during high-intensity Signal Management testing missions.
Optimized for the 1.72-2.60 GHz band, ensuring gain flatness and pattern stability required for advanced wireless research, satellite link characterization, and localized monitoring.
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, specialized PTZ control integration, or customized waterproof builds.
