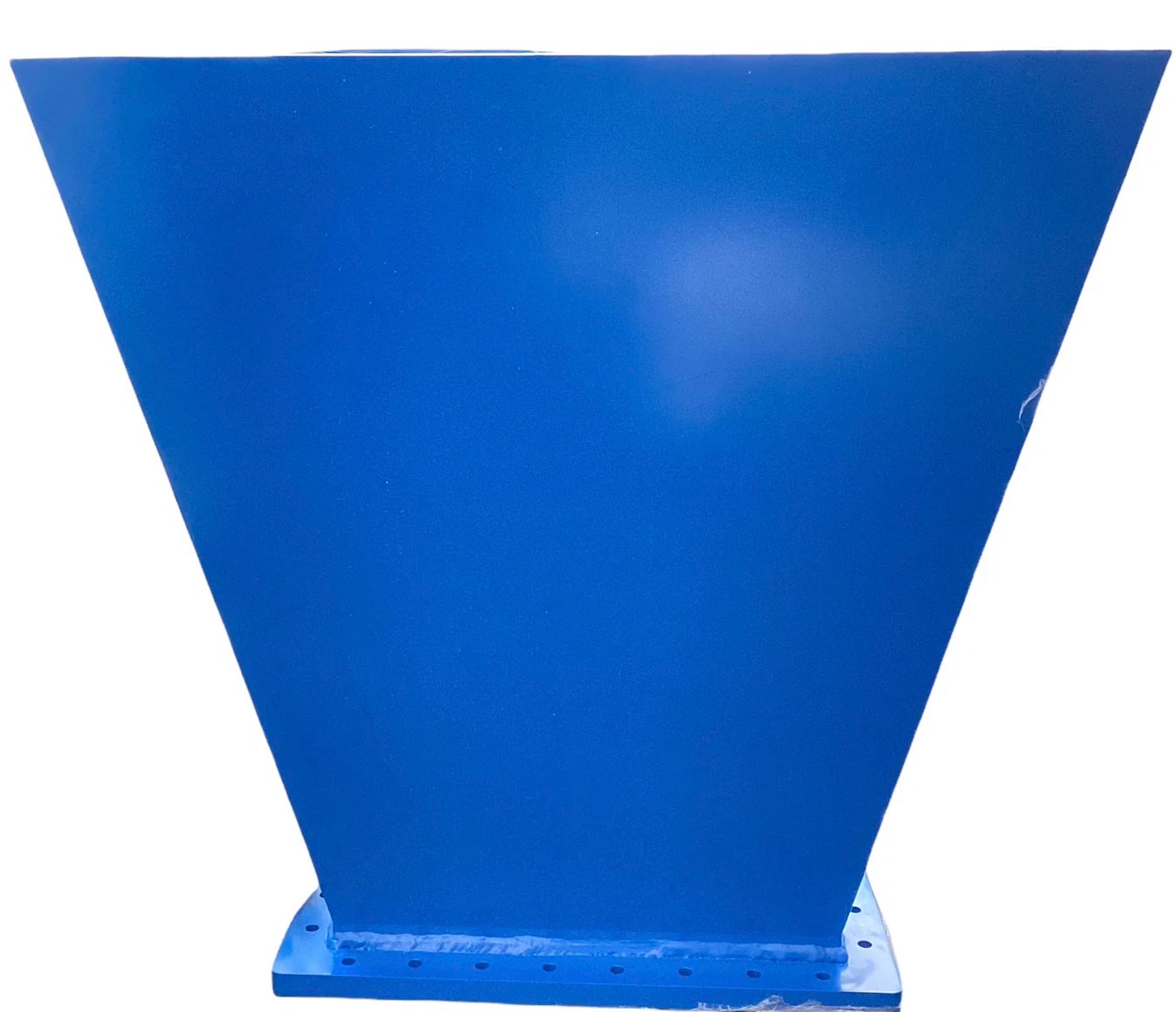

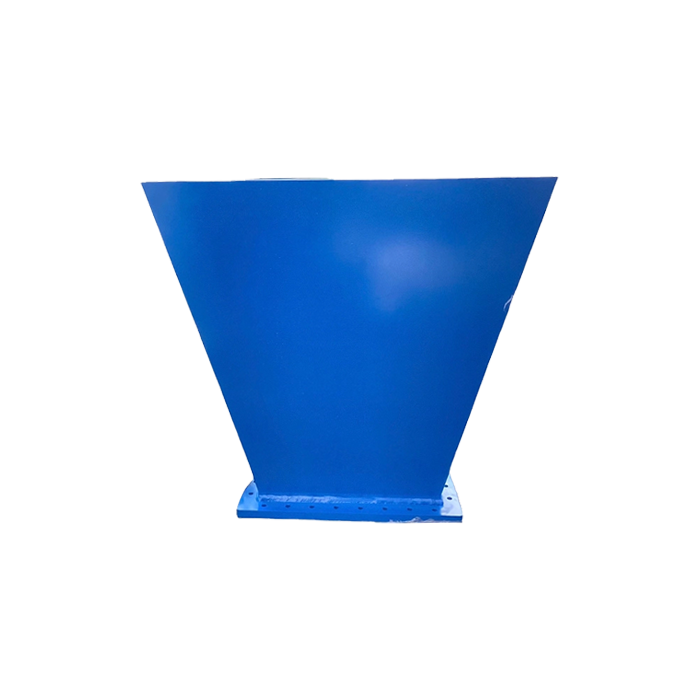

WI-1500-UDR-10 Standard Gain Horn
WR1500 UHF Waveguide Horn Antenna | 490 MHz – 740 MHz | 10 dBi
The WI-1500-UDR-10 is a heavy-duty standard gain horn antenna professionally engineered for UHF-band frequency applications. Operating within the 490 MHz to 740 MHz spectrum, it provides a stable and predictable nominal gain of 10 dBi with a massive power handling capability of up to 5000 Watts (5 KW). Utilizing the standardized WR1500 rectangular waveguide architecture and precision-machined UDR flange interface, it is an essential instrument for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing environments requiring high structural stability and high-intensity field strength.
Technical Specifications
Electrical RF Performance
[Image of UHF waveguide horn antenna radiation pattern]
| Frequency Range | 490 - 740 MHz (UHF-Band) |
| Waveguide Size | WR1500 (EIA Standard) |
| Nominal Gain | 10 dBi |
| Max Power Handling | 5000 Watts (CW) |
| -3dB Beamwidth | H-Plane: 54° | E-Plane: 54° |
| Antenna Design | Waveguide Input Horn (without Adapter) |
Mechanical & Interface Data
| Flange Designation | UDR (Standardized Waveguide Interface) |

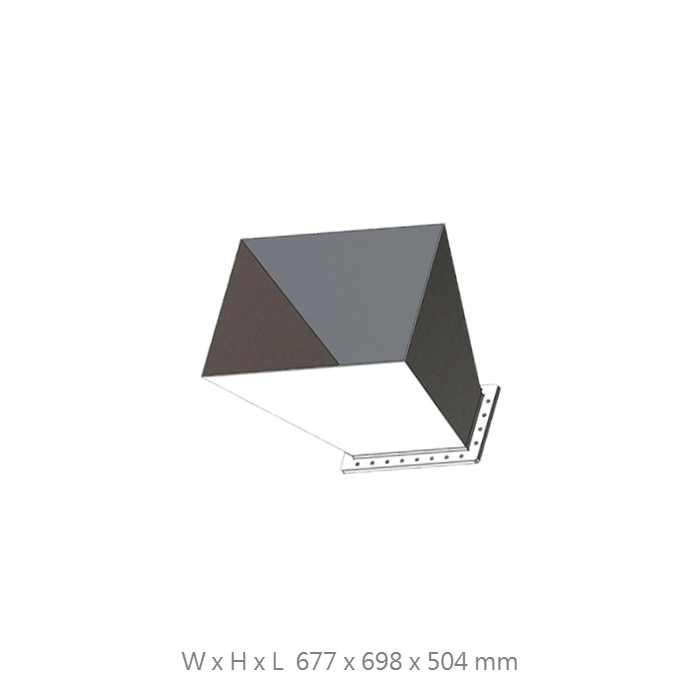

| Dimensions (L x W x H) | 677 x 698 x 504 mm |
| Net Weight | 15.65 kg (Industrial Build) |
| Material | High-strength Aluminum Alloy |
| Environmental | Waterproof Structure / Outdoor Capable |
Professional Tactical Features
High-Power Capacity
Engineered to handle a continuous wave (CW) input of 5000W, making it suitable for high-intensity field strength generation and rigorous Electronic Shielding procedures.
Stable UHF Performance
Consistently maintains a 10 dBi gain across the specified frequency band, ensuring highly accurate signal calibration and repeatable results for professional antenna testing.
Superior Signal Integrity
Designed for high-integrity electromagnetic acquisition, protecting high-value measurement instrumentation from reflected power in professional RF environments.
Precision Taiwan Build
Manufactured from aerospace-grade aluminum with reinforced structural design to ensure stable electrical performance under continuous industrial duty cycles.
Inquire About Professional UHF Solutions
Contact our engineering team for specialized gain calibration data, PTZ controlling functions, tripod mounting solutions, or custom color requirements.
