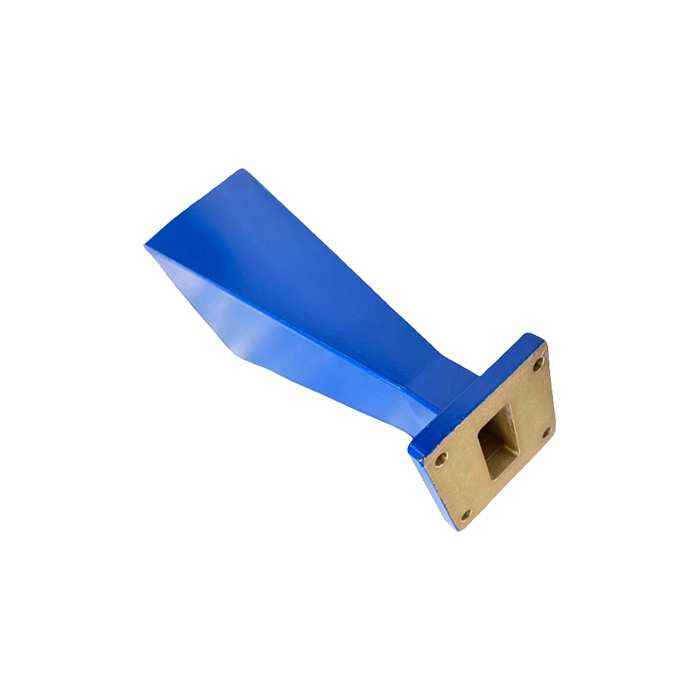

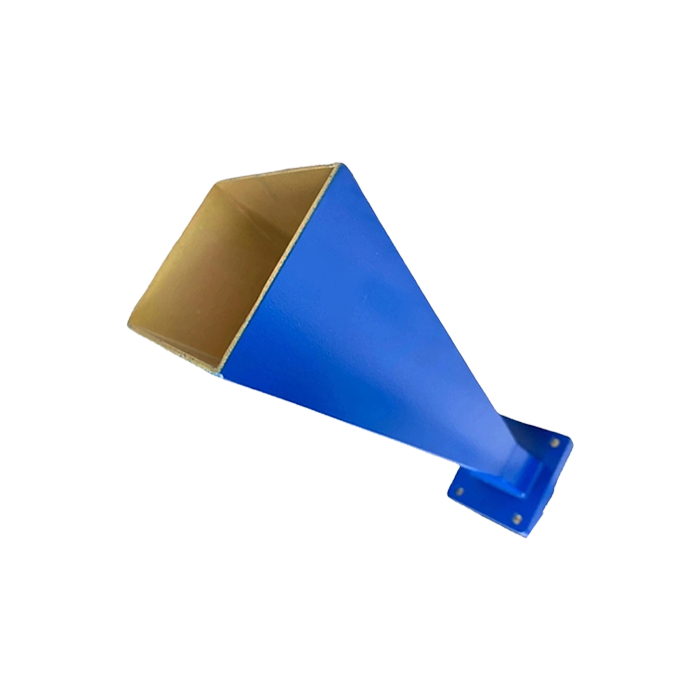

7.05-10.0 GHz WR112 Standard Gain Waveguide Horn Antenna
Model: WI-112-UBR-15 | 15 dBi Gain | 500W CW Power Handling
The WI-112-UBR-15 is a high-performance WR112 Waveguide Horn Antenna professionally engineered for precision applications in the 7.05 GHz to 10.0 GHz frequency range. Featuring a calibrated 15 dBi gain and a standardized UBR flange, this antenna ensures maximum stability and reliability for RF measurements. Its robust aluminum construction and Waterproof Structure make it ideal for both controlled laboratory environments and demanding field deployments, supporting high-intensity power handling up to 500W.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 7.05 GHz to 10.0 GHz |
| Waveguide Size | EIA WR112 / R84 / WG15 |
| Nominal Gain | 15 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H-Plane) | 32° |
| -3dB Beamwidth (E-Plane) | 31° |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |

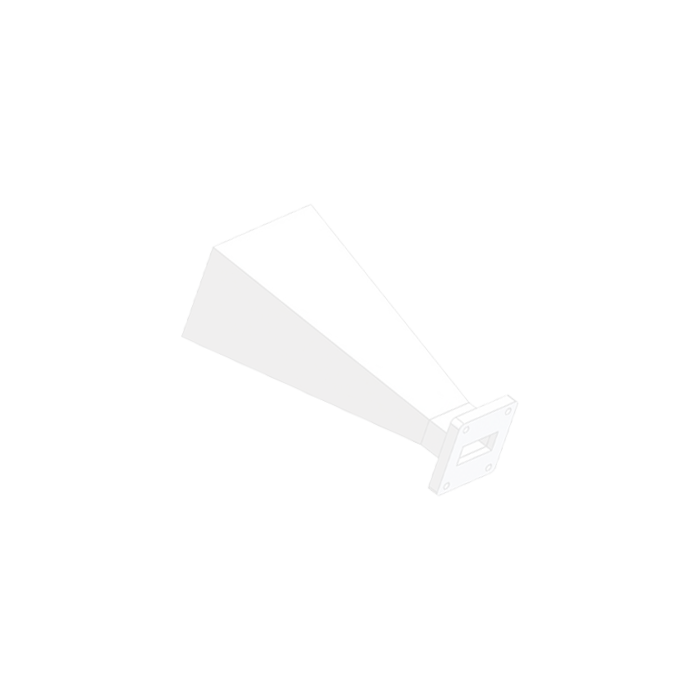

Mechanical & Construction

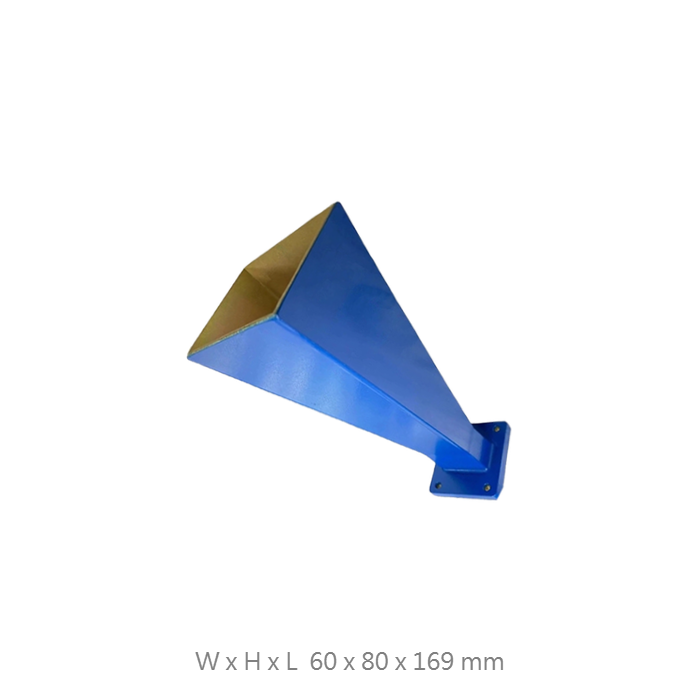

| Dimensions (W x H x L) | 60 x 80 x 169 mm |
| Net Weight | 190 g (Precision Lightweight) |
| Waveguide Flange | UBR Style (Square) |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
| Environmental Rating | Waterproof Structure Integrated |
Key Tactical Features
High Performance Reliability
Meets stringent international standards for Gain and VSWR, ensuring high-fidelity data acquisition and consistent boresight accuracy in professional RF measurements.
All-Weather Durability
Equipped with a robust waterproof structure and specialized coating for reliable Signal Management performance during outdoor tactical deployments.
Advanced Positioning
Supports full PTZ controlling functions for precision antenna orientation, tracking, and localized Signal Defense scanning across the H-band spectrum.
Fully Customizable Build
Flexible platform allowing for custom mechanical designs, specialized color coatings, and PTZ sub-system integrations to meet specific mission or project requirements.
Request a Professional Quote
Contact our engineering team to obtain specialized gain calibration reports, custom mounting solutions, or technical data regarding H-band surveillance setups.
