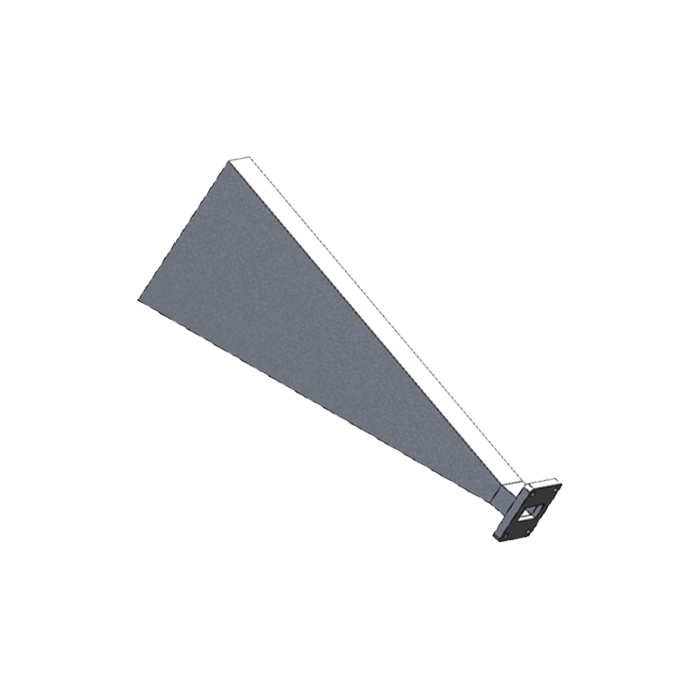

WR-112 E-Plane Sectoral Horn Antenna
Model: WI-112-UBR-15E | 7.05 - 10.0 GHz | 15 dBi | 500W
The WI-112-UBR-15E is a high-precision Waveguide Horn Antenna professionally engineered for specialized pattern shaping within the 7.05 GHz to 10.0 GHz X-Band spectrum. By flaring specifically in the E-plane, this sectoral antenna provides a massive 90° H-plane coverage while maintaining a focused 16° E-plane beamwidth. Precision-manufactured from high-grade aluminum with a standard UBR Flange, it manages power loads up to 500W, making it essential for EMI/EMC Testing, wide-area surveillance, and advanced Signal Defense operations.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-112 (R84) |
| Antenna Type | E-Plane Sectoral Horn |
| Frequency Range | 7.05 to 10.0 GHz |
| Standard Gain | 15 dBi |
| Maximum Power Handling | 500 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H / E Plane) | 90° / 16° |
Mechanical & Physical Specs

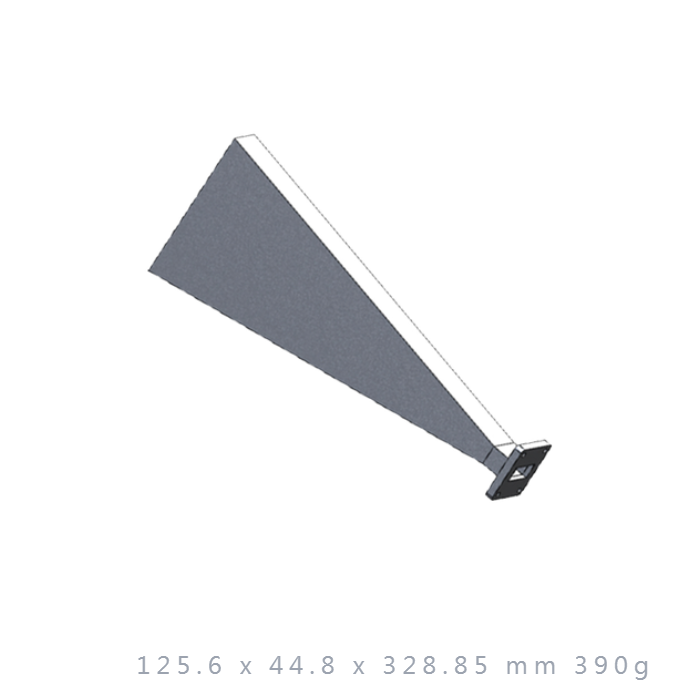

| Dimensions (WxHxL) | 125.6 x 44.8 x 328.85 mm |
| Net Weight | 390 g |
| Waveguide Flange | UBR Style |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
500W High-Power Stability
Engineered to handle robust continuous power loads, providing a reliable radiator for high-intensity laboratory testing and tactical signal dominance.
Sectoral Field Generation
The E-plane flare design creates a massive 90° coverage in the H-plane, ideal for broad-area illumination in EMC susceptibility testing or multi-point tactical links.
X-Band Signal Integrity
Optimized for the 7.05-10.0 GHz band, ensuring exceptional gain consistency and minimal signal leakage in mission-critical environments.
Customizable Infrastructure
Available with options for waterproof builds, PTZ control functions, and specialized mounting designs to meet specific outdoor tactical requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
