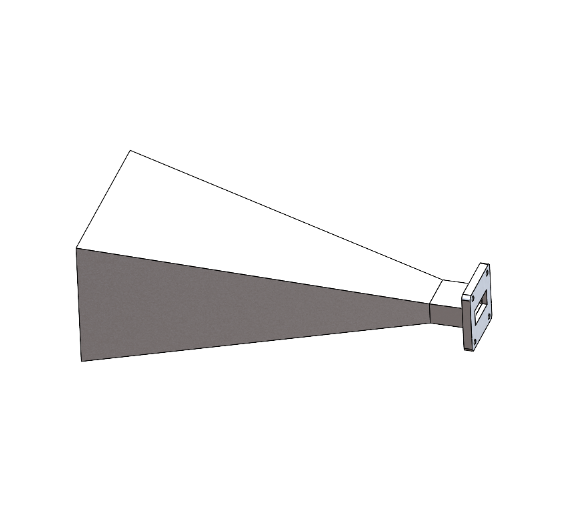

WR-112 Standard Gain Waveguide Horn Antenna
Model: WI-112-UBR-20 | 7.05 - 10.0 GHz | 20 dBi | 500W
The WI-112-UBR-20 is a high-performance Waveguide Horn Antenna specifically engineered for precision measurement and high-power operations within the 7.05 GHz to 10.0 GHz X-Band spectrum. Precision-manufactured from high-grade aluminum and featuring a standard UBR Waveguide Flange, it ensures low VSWR and consistent 20 dBi gain. This antenna is an essential component for EMI/EMC Testing, antenna calibration, and advanced Signal Defense infrastructure, offering exceptional Signal Integrity across the operating band.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-112 (R84) |
| Frequency Range | 7.05 to 10.0 GHz |
| Standard Gain | 20 dBi |
| Maximum Power Handling | 500 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H/E Plane) | 20° / 19° |

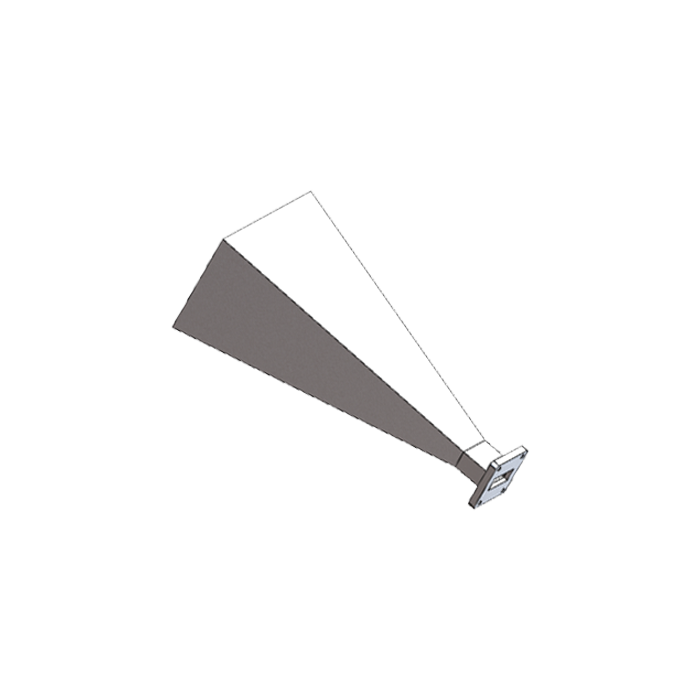

Mechanical & Physical Specs

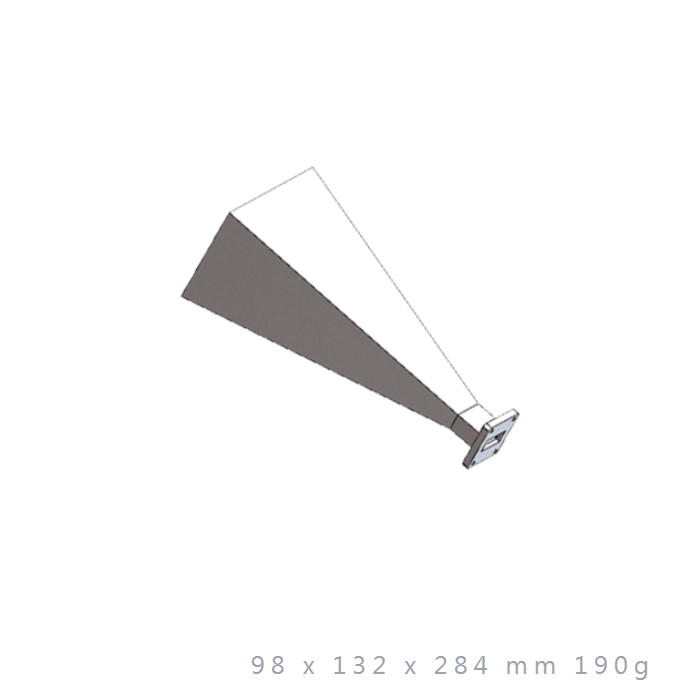

| Dimensions (WxHxL) | 98 x 132 x 284 mm |
| Net Weight | 190 g |
| Waveguide Flange | UBR Style |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
High-Gain Precision Pattern
Features a consistent 20 dBi gain with symmetrical beamwidths, providing the boresight accuracy necessary for mission-critical antenna calibration.
X-Band Signal Integrity
Optimized for the 7-10 GHz band, supporting advanced signal management and interference mitigation in professional RF networks.
Lightweight Aluminum Build
Weighing only 190g, this antenna ensures structural rigidity while remaining easy to deploy on tactical masts or laboratory positioners.
Customizable Infrastructure
Available with options for waterproof structures, PTZ control integration, and specialized tripod mounting to meet tactical field requirements.
Get a Quote / Custom Antenna Solutions
Contact us for specialized PTZ control, waterproof builds, or custom mounting interfaces.
