Description & Specification

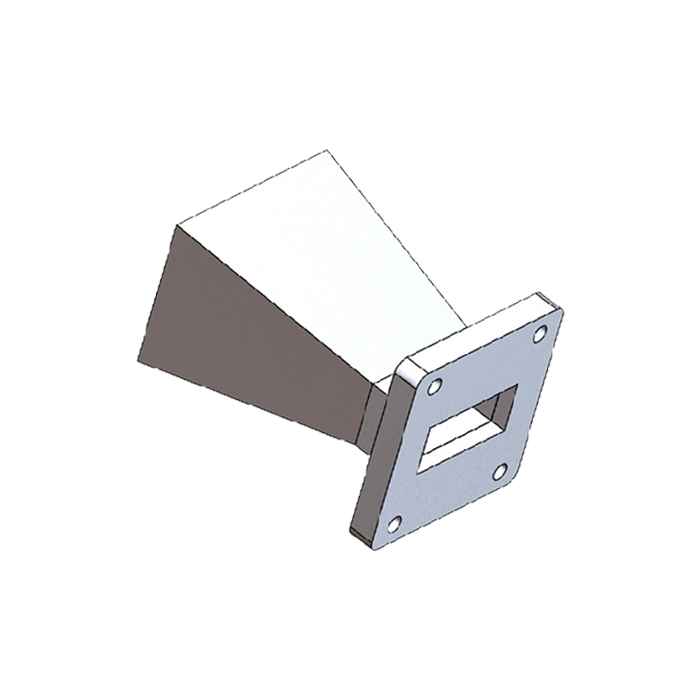

WR-112 Standard Gain Waveguide Horn Antenna
Model: WI-112-UBR-10 | 7.05 - 10.0 GHz | 10 dBi | 500W
The WI-112-UBR-10 is a compact, high-precision Waveguide Horn Antenna specifically designed for operations within the 7.05 GHz to 10.0 GHz X-Band spectrum. Precision-manufactured from high-grade aluminum and featuring a standard UBR Waveguide Flange, it ensures low VSWR and consistent 10 dBi gain. This radiator is an essential component for EMI/EMC Testing, antenna calibration, and professional Signal Defense infrastructure, offering high Signal Integrity and power handling up to 500W.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-112 (R84) |
| Frequency Range | 7.05 to 10.0 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 500 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H/E Plane) | 52° / 50° |
Mechanical & Physical Specs
| Dimensions (WxHxL) | 37 x 49 x 68.85 mm |
| Net Weight | 85 g |
| Waveguide Flange | UBR Style |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
X-Band Signal Integrity
Optimized for the 7.05-10.0 GHz band, delivering consistent gain and minimal signal leakage in mission-critical environments.
500W High-Power Stability
Engineered to handle robust continuous power loads, providing a reliable radiator for high-intensity laboratory testing and tactical signal dominance.
Ultra-Lightweight Build
Weighing only 85g, this compact aluminum antenna ensures minimal load on precision laboratory positioners while maintaining structural strength.
Customizable Infrastructure
Available with options for waterproof builds, PTZ control functions, and specialized mounting designs to meet specific field requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
