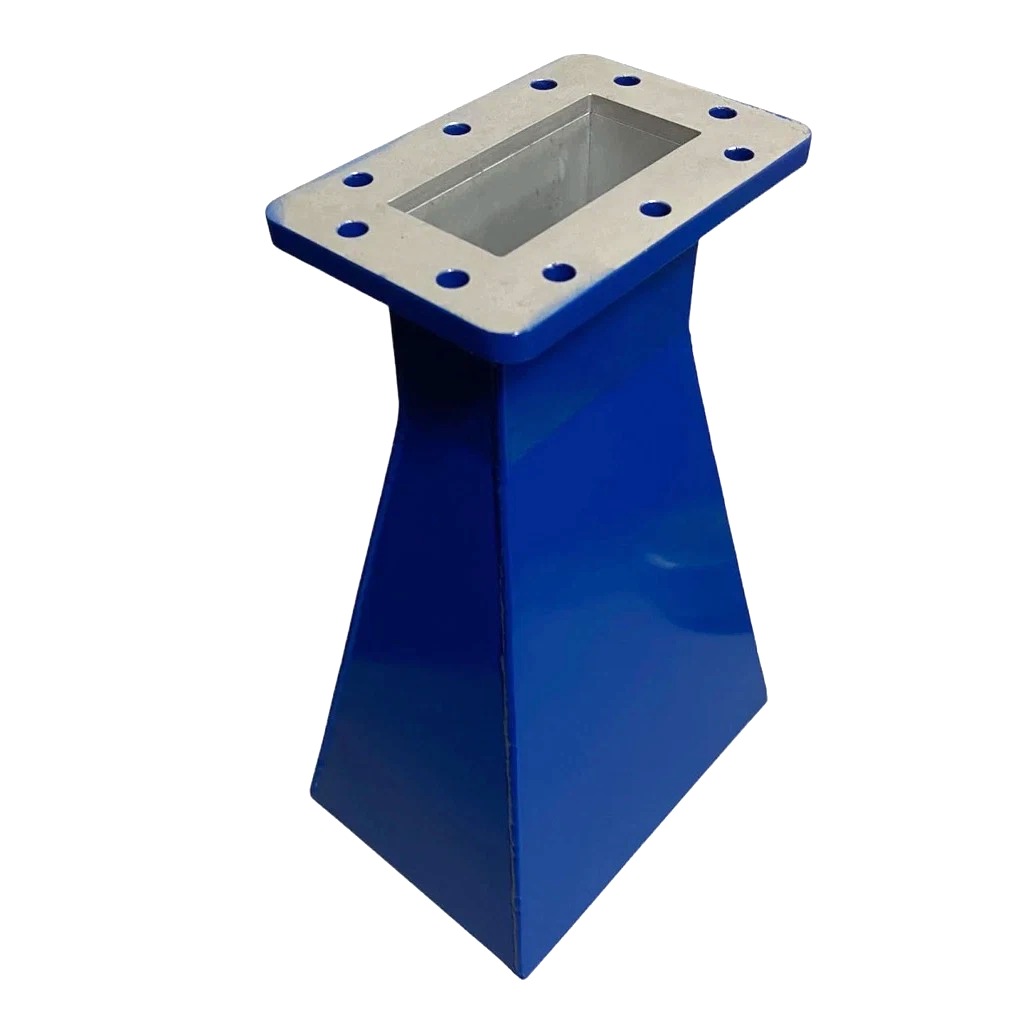

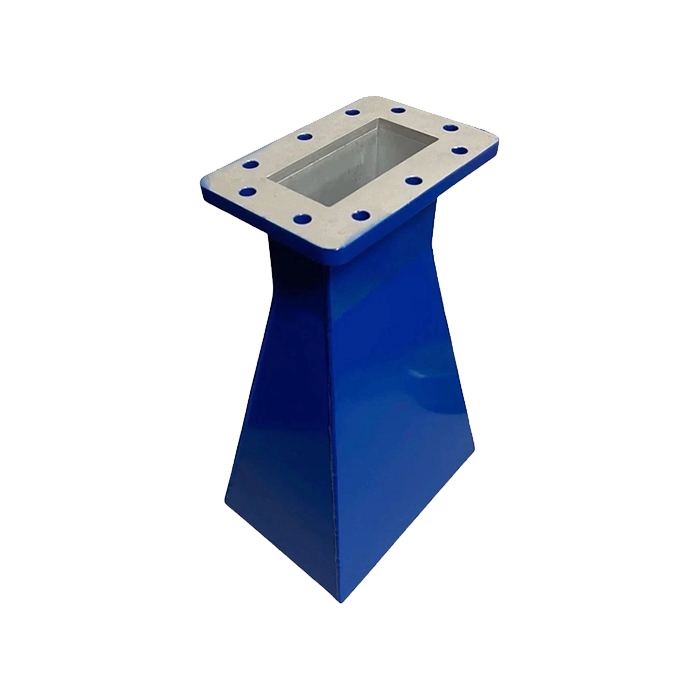

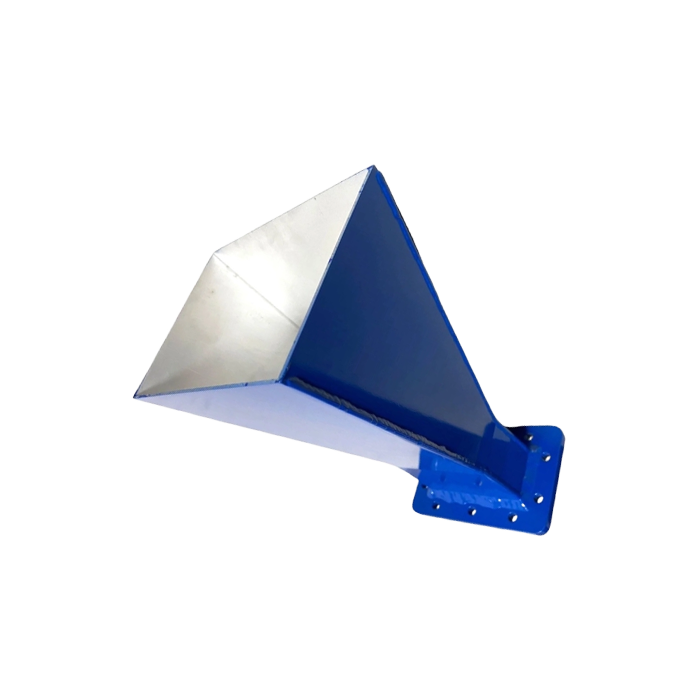

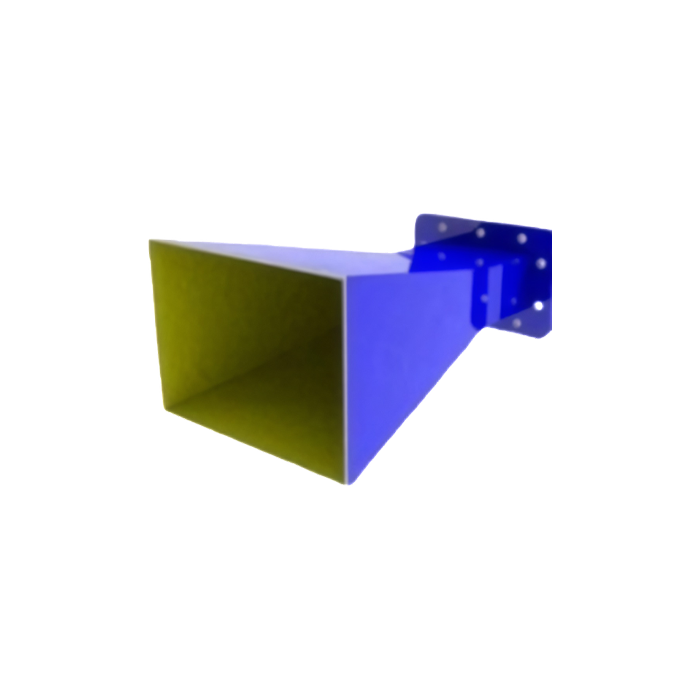

WI-284-UDR-10 WR284 S Band Waveguide Horn Antenna
Professional S-Band Solutions | WR284 Waveguide | Model: WI-284-UDR-10
The WI-284-UDR-10 is a robust, industrial-grade WR284 Waveguide Horn Antenna manufactured and professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating within the continuous S Band frequency range of 2.6 GHz to 3.95 GHz, it features a unique Bell-shaped geometry layout that optimizes structural radiation parameters. This premium antenna delivers a stable nominal gain of 10 dBi and is meticulously engineered for demanding high power applications, safely managing continuous power loads up to 800 Watts. Precision constructed from high-quality durable aluminum with a standard UDR flange interconnect interface, this instrument guarantees outstanding electromechanical longevity and minimal reflection coefficients. It stands as the definitive choice for precision antenna gain measurement, system integration grids, automated calibration setups, and industrial communication applications requiring exceptionally clean and reliable signal transmission profiles.
Electrical & RF Performance
| Frequency Range Class | 2.6 GHz to 3.95 GHz (S Band Continuous Support) |
| Waveguide Standard Size | EIA WR284 |
| Flange Interface Layout | UDR Style Flange |
| Nominal Gain (Typical) | 10 dBi |
| Maximum Power Handling | 800 Watts (High-Intensity Capacity) |
| -3dB Beamwidth (H-Plane) | 58 Degrees (Optimized Horizon Footprint) |
| -3dB Beamwidth (E-Plane) | 56 Degrees (Precision Elevation Envelope) |
Mechanical & Environmental Data
| Physical Dimensions (L x W x H) | 103 x 143 x 232 mm |
| Net Weight Profile | 560 g (Lightweight Precision Build) |
| Structural Body Material | High-Quality Structural Aluminum |
| Antenna Shape Style | Bell-shaped Horn Geometry Layout |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
High Power Capability
Robustly designed to handle up to 800 Watts of continuous wave power, making it perfectly suitable for highly demanding transmitter applications and diagnostic test environments.
S Band Performance
Provides highly effective spectral coverage from 2.6 GHz to 3.95 GHz with a stable 10 dBi gain profile, minimizing power expansion drift under continuous operations.
Robust Construction
Meticulously structured from premium aluminum with a standard UDR flange interface, ensuring exceptional mechanical reliability and consistent co-polarization signal integrity.
Taiwan Made Quality
Manufactured under strict factory quality control parameters in Taiwan by FT-RF, featuring an outstanding appearance engineering design and full compliance with international standards.
Contact FT-RF Engineering Team
Contact our technical division today to request official quote sheets, custom gimbal control functions, individual certified calibration records, tripod mounting hardware options, or alternative color schemes.
