Description & Specification
Professional S-Band Solutions

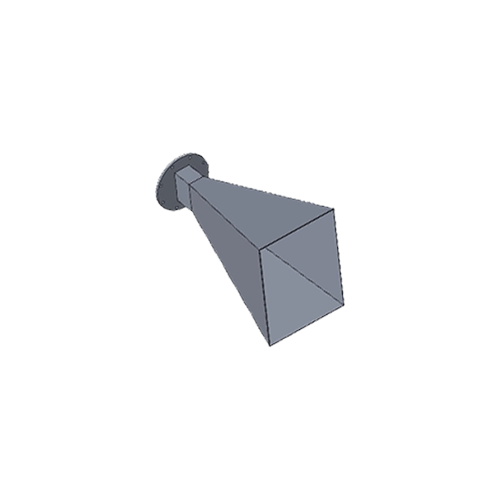

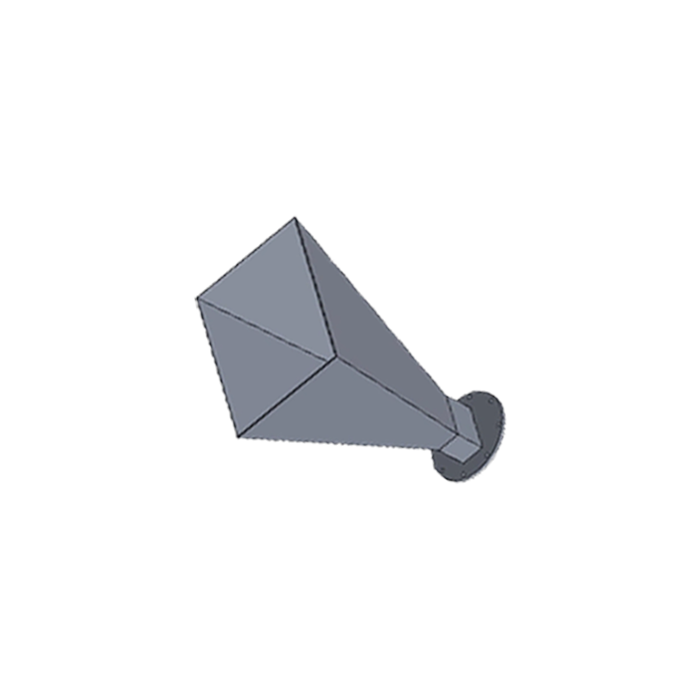

WI-284-UAR-15 Standard Gain Horn Antenna
High-power WR-284 S-band antenna (2.6 - 3.95 GHz). Precision-engineered with a balanced 32° radiation pattern for consistent 15 dBi gain in mission-critical (800W) signal security and laboratory test environments.
Technical Specifications
| Frequency Range | 2.6 - 3.95 GHz |
| Gain (Typical) | 15 dBi |
| Peak Power (CW) | 800 Watts |
| 3dB Beamwidth (H/E) | 32° / 31° |
| Waveguide / Flange | WR-284 / UAR |

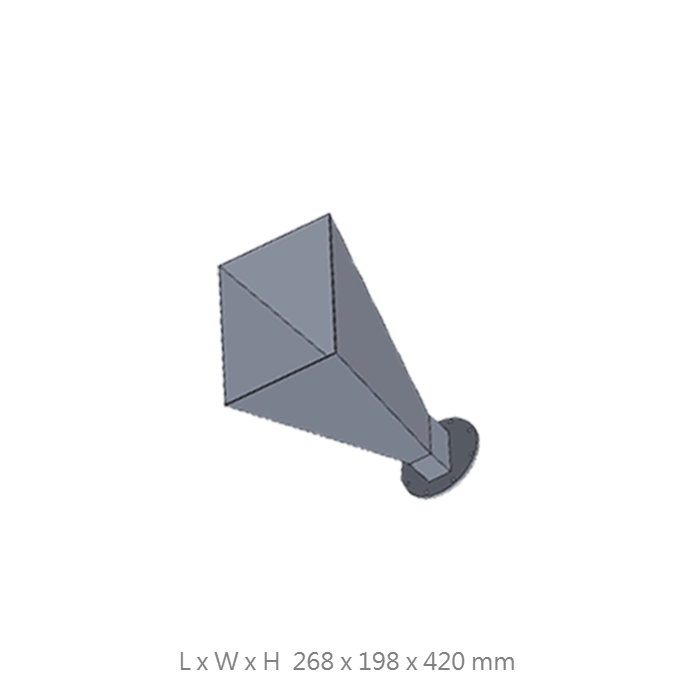

| Dimensions / Weight | 268 x 198 x 420 mm / 1450g |
Industrial Design Highlights
800W High-Intensity Capacity
Robust aluminum architecture engineered for continuous high-power operations with superior thermal dissipation and structural integrity.
Symmetrical Radiation Pattern
Balanced 32°/31° beamwidth ensures uniform signal distribution and exceptional measurement accuracy for S-band tactical deployments.
Aerospace-Grade CNC Integrity
Precision-machined from high-grade aluminum alloy to guarantee mechanical reliability and stable 15 dBi gain across the spectrum.
Customized mounting solutions or specialized calibration certificates are available upon request.
