WR284 (2.6 to 3.95GHz)10dbi H-Plane Sector Waveguide Horn Input, Flange: UDR

Model No: WI-284-UDR-10H

Made in Taiwan
Frequency Range: 2.6 - 3.95 GHz
Waveguide size / Flange: EIA WR-284 / Standard UDR
Gain / Wide Pattern Beam: 10 dBi Typical / 92° Sector
Max CW Power / Weight: 800 Watts / 1600g Core Build
Lead Time: 📩 info-tw@ft168.com.tw
Stock: 0
2026/06/18
Quantity:
INQUIRY

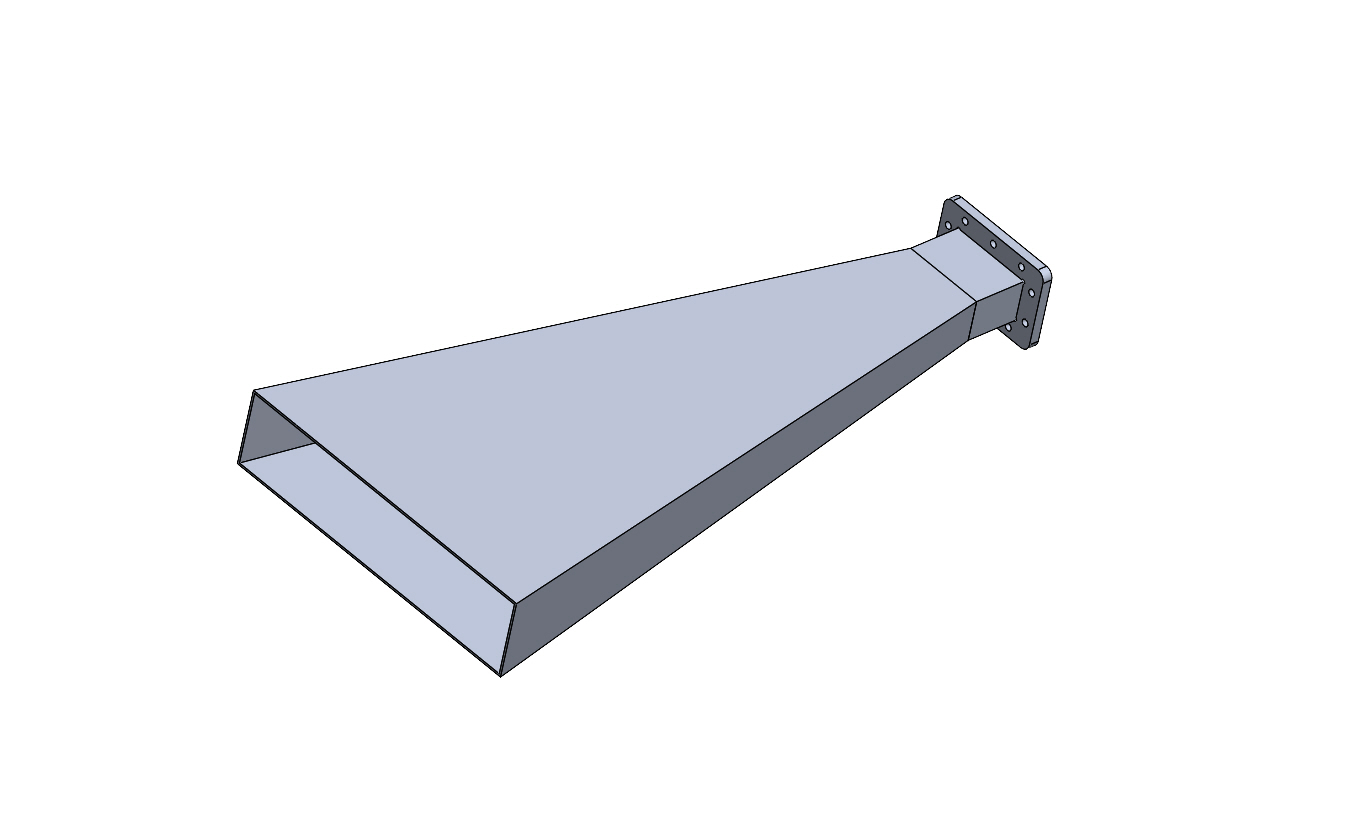

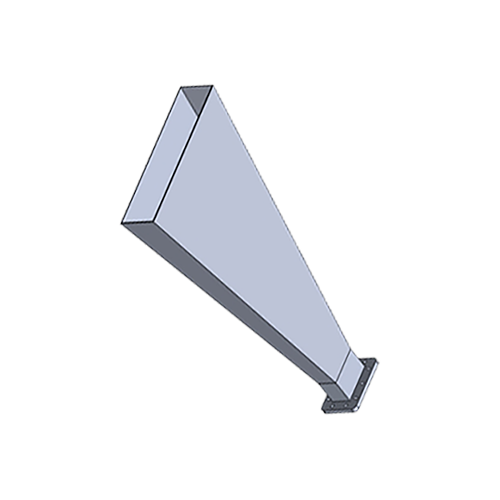

WI-284-UDR-10H WR-284 Horn Antenna

Professional S-Band Solutions | WR-284 Waveguide | Model: WI-284-UDR-10H
The WI-284-UDR-10H is an advanced, industrial-grade S-Band Sectoral Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for comprehensive altitude monitoring, wide-elevation signal security, and professional RF laboratory environments across the continuous 2.6 to 3.95 GHz frequency spectrum. Meticulously optimized to enforce exceptional spatial coverage accuracy, this premium horn antenna delivers a predictable nominal gain profile of 10 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Precision CNC machined from high-grade aerospace aluminum alloy in Taiwan, the specialized sectoral launch geometry establishes a wide vertical footprint, providing a 92° E-plane -3dB beamwidth paired with a focused 28° H-plane horizon envelope. Equipped with a standardized precision UDR Waveguide Flange mating face with a standard WR-284 interface layout, this robust 1600g instrument ensures flawless, leak-free electromechanical coupling and safely manages continuous wave power loads up to 800 Watts (CW) with outstanding structural thermal stability. Its optimized structural integrity avoids destructive field distortion modes under complex tracking layouts, rendering it the definitive choice for altitude scanning matrices, automated antenna calibration setups, radar validation deployments, and mission-critical RF infrastructure arrays.



Electrical & RF Performance
Frequency Range Class 2.6 - 3.95 GHz (Continuous S-Band Spectral Optimization)
Waveguide Standard Size EIA WR-284 (R32 Geometry Profile Layout)
Nominal Gain (Typical) 10 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1 (Precision Minimal Reflection Performance)
Maximum Power Handling 800 Watts (CW Continuous Wave Thermal Limit)
-3dB Beamwidth (H-Plane) 28° (Precision Path Focus)
-3dB Beamwidth (E-Plane) 92° (Specialized Wide Vertical Sector Optimization)
Mechanical & Environmental Data

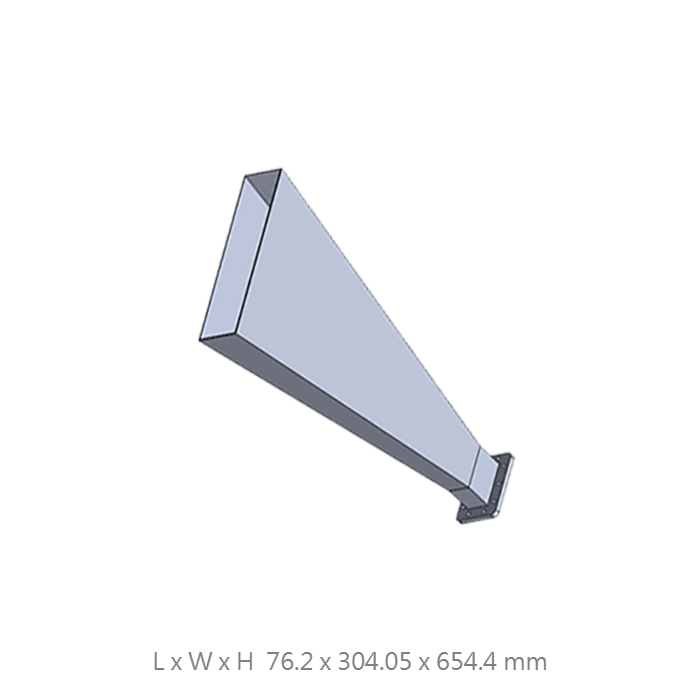

Physical Dimensions (L x W x H) 76.2 x 304.05 x 654.4 mm
Net Weight Profile 1600g / 1.6 kg (Precision Rigid Assembly Build)
Waveguide Connection Flange Standardized UDR Style Flange Layout Interface
Structural Construction Material Aerospace-Grade High-Conductivity Aluminum Alloy Core
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF Professional Series)



92° Vertical Sector Coverage

Specialized E-plane radiation pattern optimized for altitude scanning and broad wide-elevation monitoring in S-band tactical deployments.

800W High-Power Build

Robust aluminum construction and precision-machined paths effortlessly survive high continuous wave (CW) transmitter fields with exceptional structural thermal stability.

Premium CNC Integrity

Meticulously shaped under strict factory quality control parameters in Taiwan from aerospace-grade aluminum, guaranteeing a uniform radiation profile and robust mechanical durability.

Customizable Infrastructure

Highly adaptive mechanical baseline optimized for specialized multi-axis pan-tilt control positioning units (PTZ), customized weatherized anechoic assemblies, individual calibration certificates, or custom tripod mounts.

Contact FT-RF Engineering Team

Contact our technical engineering division today to request official quote sheets, individual certified calibration records, certified individual V.S.W.R plot sheets, or specialized mounting hardware solutions.
