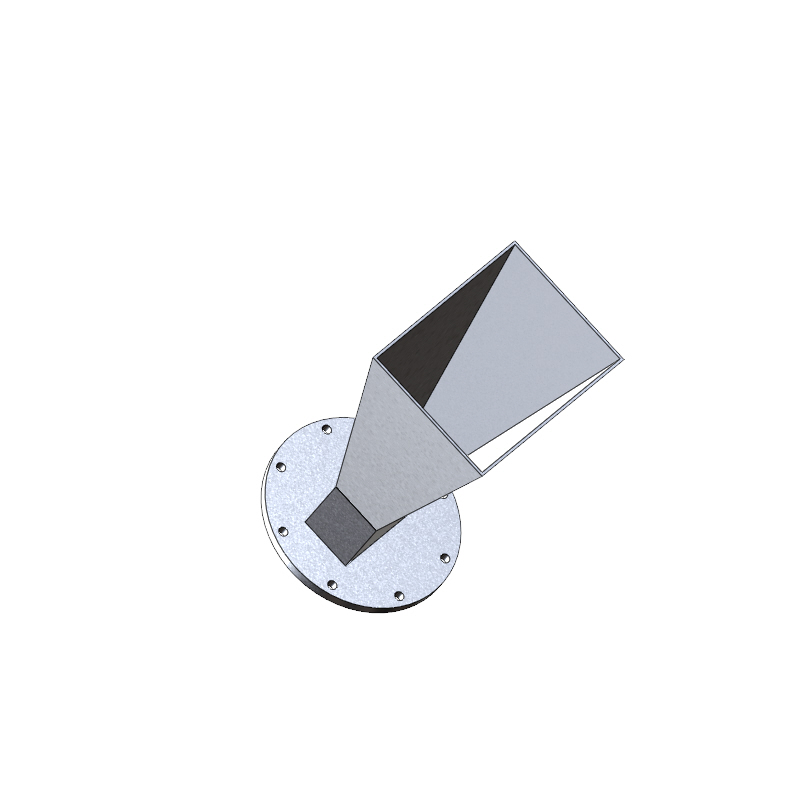

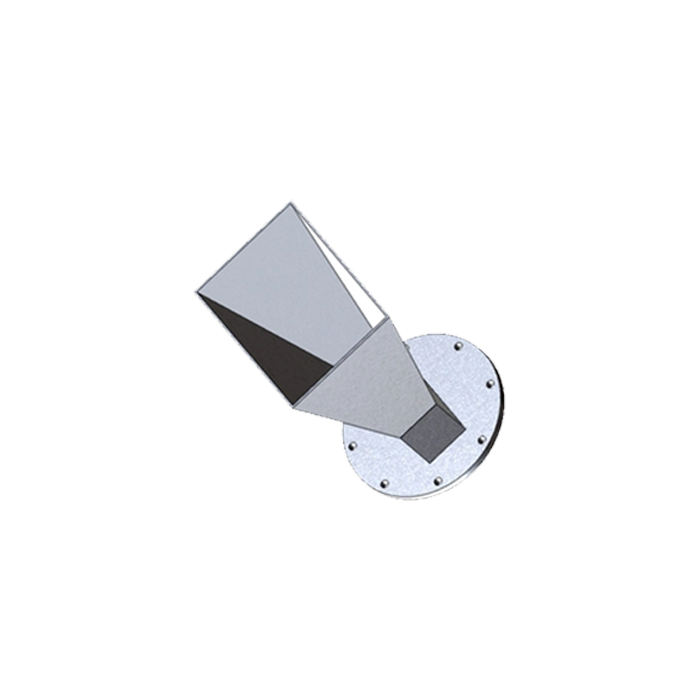

WR-284 Standard Gain Waveguide Horn Antenna
Model: WI-284-UAR-10 | 2.6 - 3.95 GHz | 10 dBi | 800W
The WI-284-UAR-10 is a high-power Waveguide Horn Antenna professionally engineered for precision measurement and high-intensity RF operations within the 2.6 GHz to 3.95 GHz S-Band spectrum. Precision-manufactured from high-grade aluminum and featuring a standard UAR Flange, it ensures exceptional Signal Integrity and beam stability. Managing power loads up to 800W, this antenna is an essential component for Antenna Gain Measurements, EMI/EMC testing, and professional Signal Defense infrastructure.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-284 (R32) |
| Frequency Range | 2.6 to 3.95 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 800 Watts (CW) |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H / E Plane) | 58° / 56° |
Mechanical & Physical Specs

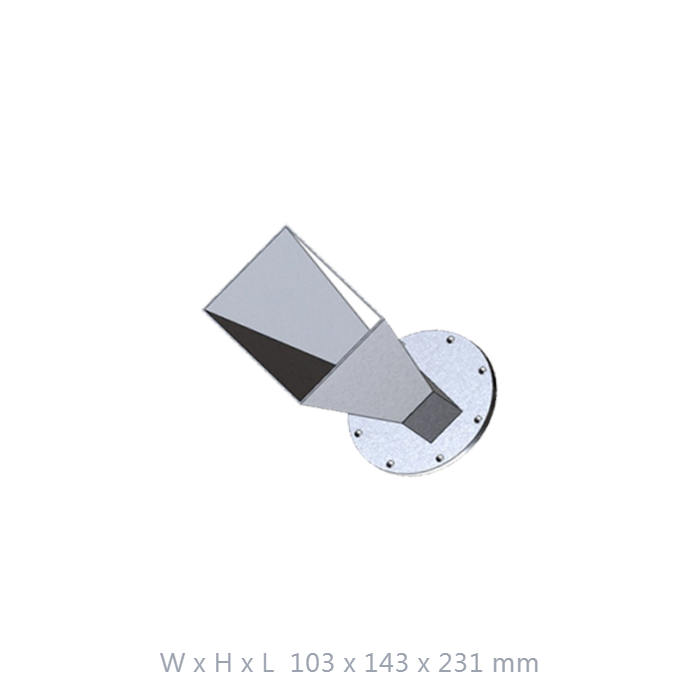

| Dimensions (WxHxL) | 103 x 143 x 231 mm |
| Net Weight | 650 g |
| Waveguide Flange | UAR Style |
| Material | High-Grade Aluminum |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
800W High-Power Stability
Engineered to handle high continuous power loads, providing a reliable radiator for robust laboratory testing and tactical signal protection.
S-Band Signal Integrity
Optimized for the 2.6-3.95 GHz band, delivering consistent gain and minimal signal leakage in mission-critical environments.
Precision Aluminum Build
Weighing 650g, this high-fidelity horn antenna ensures mechanical stability and structural rigidity for both lab and outdoor tactical mast deployments.
Customizable Infrastructure
Available with options for waterproof structures, PTZ control functions, and specialized tripod mounting designs to meet specific field requirements.
