Professional S-Band Sector Solutions

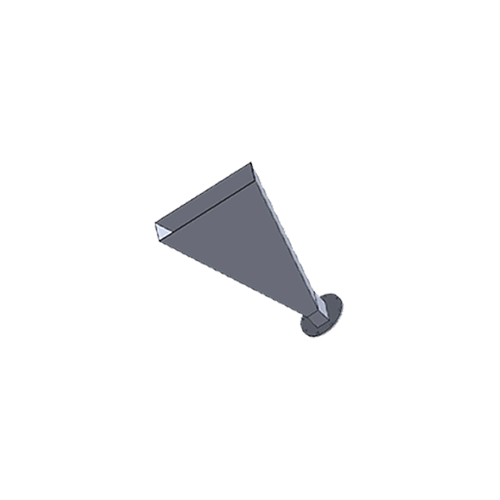

WI-284-UAR-15E WR-284 Sector Horn Antenna
Advanced S-band standard gain horn antenna (2.6 - 3.95 GHz) featuring a specialized 80° wide H-plane beamwidth. Engineered for mission-critical surveillance, tactical monitoring, and high-power 300W RF deployments.
Technical Specifications
| Frequency Range | 2.6 - 3.95 GHz |
| Gain (Typical) | 15 dBi |
| Peak Power (CW) | 300 Watts |
| V.S.W.R (Max) | 1.25 : 1 |
| 3dB Beamwidth (H/E) | 80° / 12° |
| Waveguide / Flange | WR-284 / UAR |

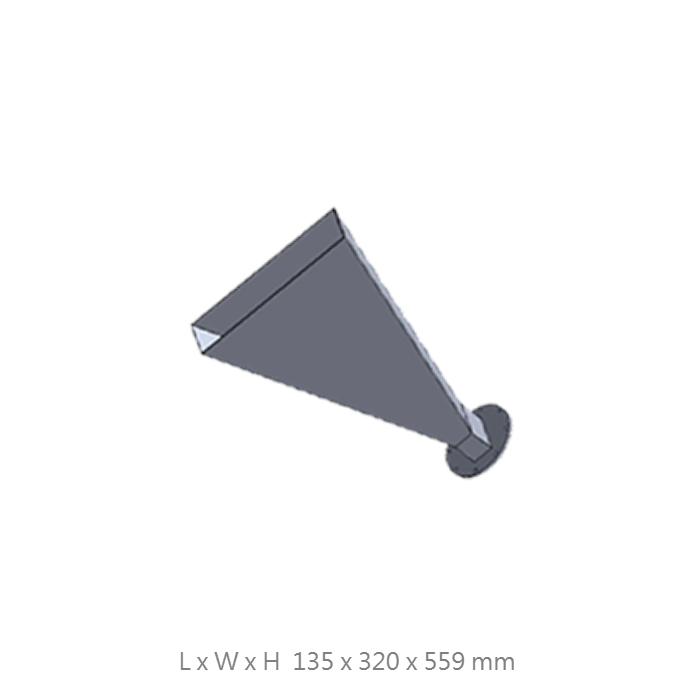

| Dimensions / Weight | 135 x 320 x 559 mm / 1900g |
Design Highlights
80° Horizontal Sector
Specialized sectoral radiation pattern optimized for broad horizontal area monitoring while maintaining precise vertical focus (12°).
Aerospace CNC Build
Precision-machined from high-grade aluminum with stainless steel interfaces, ensuring uniform 15 dBi gain and exceptional durability.
Tactical Reliability
Robust structural design handles high-power 300W continuous wave transmission with minimal thermal drift in outdoor environments.
Customized mounting solutions or specialized calibration data available upon request.
