WR284 (2.6 to 3.95GHz) 20dbi Waveguide Horn Input, Flange: UAR

WR284 (2.6 to 3.95GHz) 20dbi Waveguide Horn Input, Flange: UAR

Model No: WI-284-UAR-20

Made in Taiwan
Frequency Range 2.6 - 3.95 GHz
Gain (Typical) 20 dBi
Peak Power (CW) 600 Watts
Stock:
📖 DATASHEET
Quantity:
INQUIRY

  • Description & Specification

High-Gain S-Band Antennas

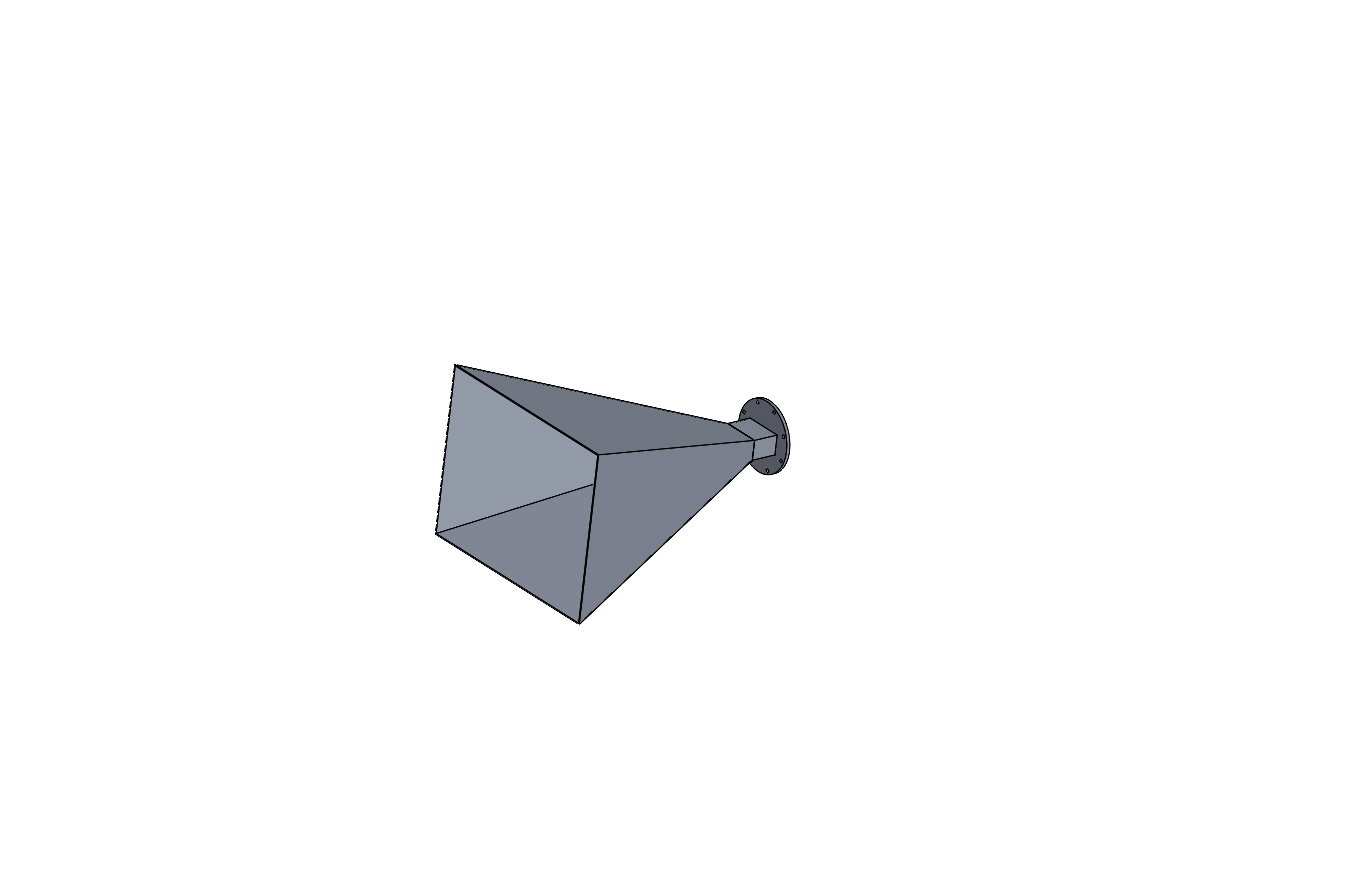

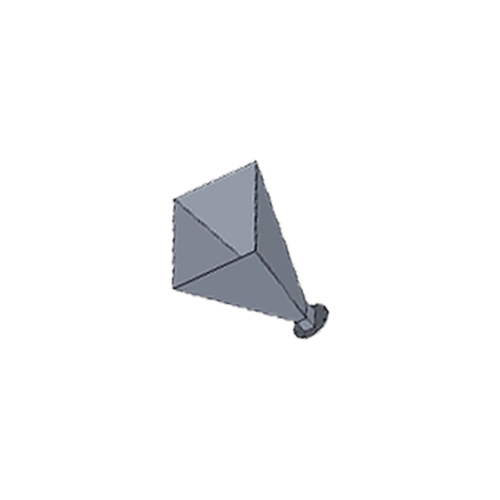

WI-284-UAR-20 WR-284 High-Gain Horn Antenna

Professional high-gain S-band horn antenna (2.6 - 3.95 GHz) featuring a 20 dBi directional profile. Engineered for long-range signal security and precision laboratory measurements requiring high 600W stability.

Technical Specifications
Frequency Range 2.6 - 3.95 GHz
Gain (Typical) 20 dBi
Peak Power (CW) 600 Watts
3dB Beamwidth (H/E) 18° / 17°
Waveguide / Flange WR-284 / UAR

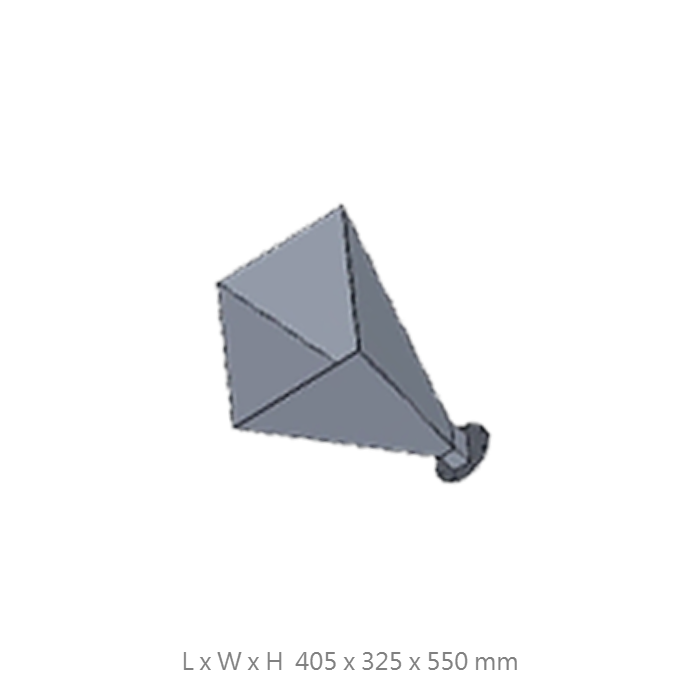

Dimensions / Weight 405 x 325 x 550 mm / 2650g
Material High-Grade Aerospace Aluminum
Key Performance Features

20 dBi High Directionality

Tight beamwidth control (18°/17°) provides superior focal performance for long-range spectrum monitoring and directional testing.

Robust 600W Stability

Engineered to handle high-intensity signal security and CW transmission tasks with minimal thermal expansion or electrical drift.

Premium CNC Build

Constructed from lightweight, aerospace-grade aluminum for exceptional mechanical durability and electrical integrity in harsh tactical environments.

Customized mounting solutions or specific calibration certificates are available upon request.
