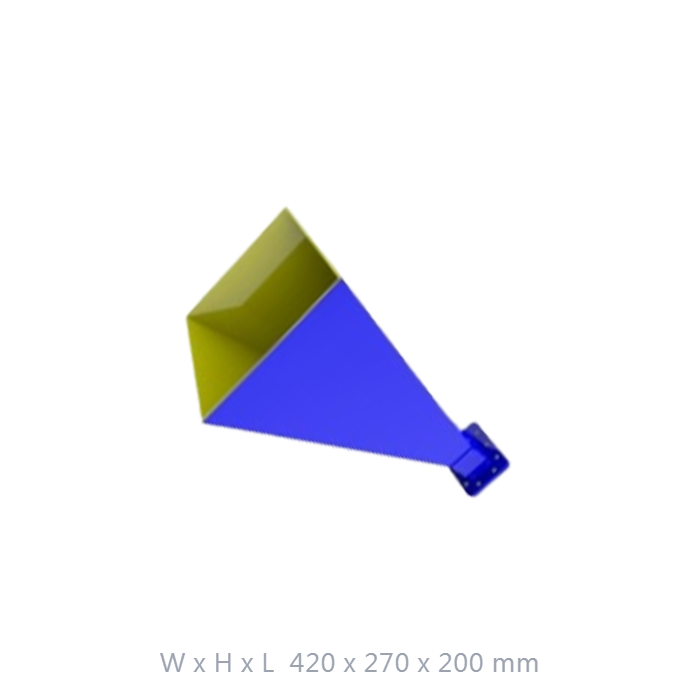

WR284 2.6GHz to 3.95GHz, 15dBi Standard Gain Waveguide Horn Antenna
This professional Standard Gain Horn Antenna is meticulously engineered for S-Band frequency applications, operating precisely from 2.6 GHz to 3.95 GHz. Designed with a robust WR284 waveguide structure, it provides a stable 15 dBi gain and exceptional Signal Integrity. Featuring a Type01 flange interface, it supports both Vertical and Horizontal polarization for mission-critical RF testing and Signal Security. Proudly Made in Taiwan by FT-RF, this Industrial Grade antenna is the definitive choice for radar systems and high-accuracy laboratory measurements.
Technical Specifications
| Frequency Range | 2.6 GHz - 3.95 GHz (S-Band) |
| Waveguide Size | WR284 Standard |
| Nominal Gain | 15 dBi |
| Beamwidth (-3dB) | Horz. 25° / Vert. 24° |
| Connector / Flange | Type01 Interface |
| Dimensions / Weight | 420 x 270 x 200 mm / 2.2 kg |
| Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Optimized for the 2.6-3.95 GHz range to maintain high Signal Integrity and minimal reflection loss.
Precisely machined to WR284 standards, providing stable electrical performance and structural longevity.
Delivers predictable 15 dBi gain and focused beamwidth, ideal for professional Signal Management.
Designed and manufactured in Taiwan, ensuring repeatable and high-accuracy measurement results.
