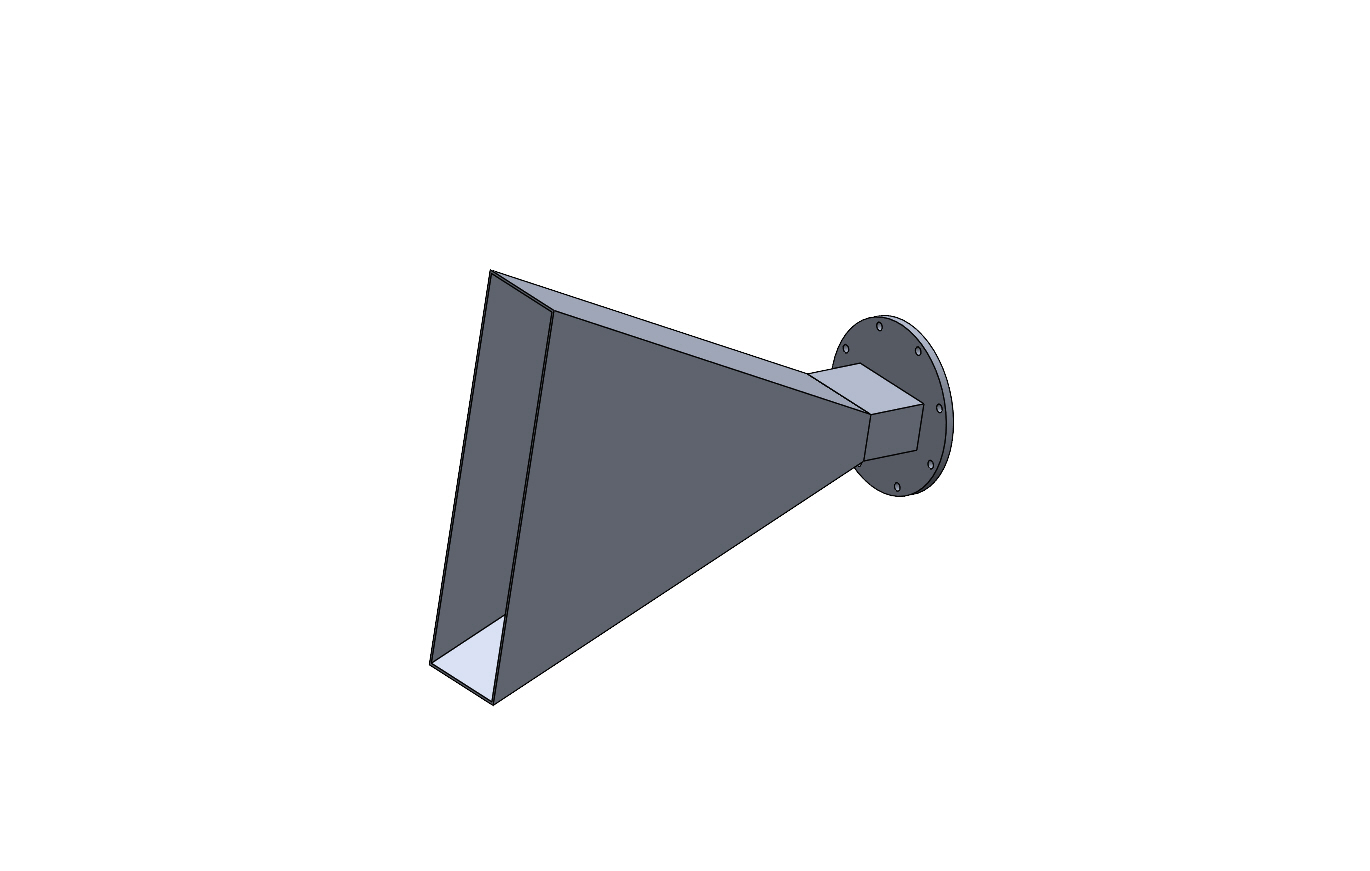

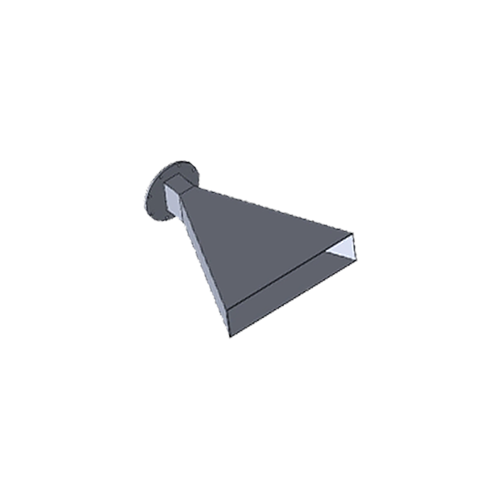

WR284 (2.6 to 3.95GHz) 10dbi E-Plane Sector Waveguide Horn Input, Flange: UAR

WR284 (2.6 to 3.95GHz) 10dbi E-Plane Sector Waveguide Horn Input, Flange: UAR

Model No: WI-284-UAR-10E

Mechanical Drawing: Download

  • Waveguide:WR-284
  • Frequency:5.85 to 8.2GHz
  • Gain:10
Quantity:
INQUIRY

  • Description & Specification

  • Model:WI-284-UAR-10E
  • Waveguide:WR-284
  • Frequency:5.85 to 8.2GHz
  • Gain:10
  • Max Power(W):800W
  • H-plane(-3db):112
  • E-plane(-3db):28

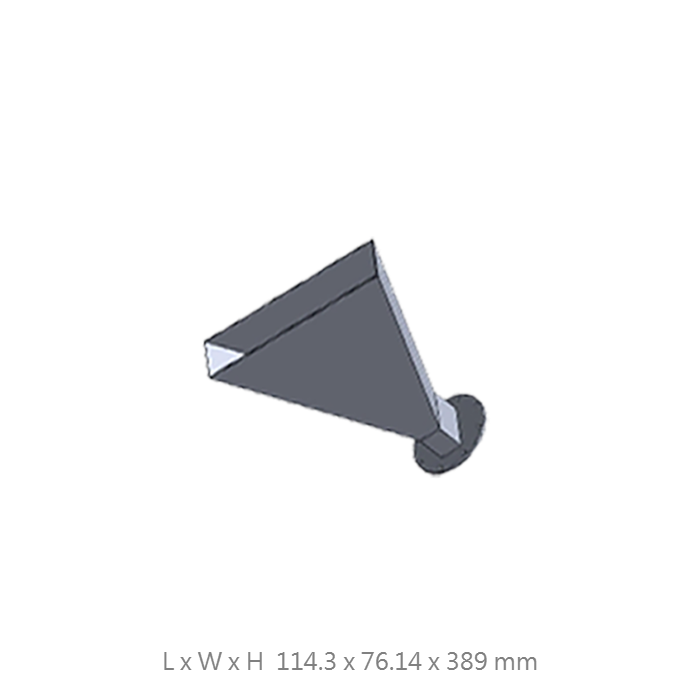

  • Size(mm):114.3x76.14x389
  • Weight(g):1250
  • Waveguide Flange:UAR
  • V.S.W.R:1.3
  • Material: Aluminum
