WR187 Waveguide Horn Antenna
3.95 - 5.85 GHz | 10 dBi Gain | 1KW Power Handling | UDR Flange | Model: WI-187-UDR-10H
The WI-187-UDR-10H is a high-performance C-band waveguide horn antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating across the frequency range of 3.95 GHz to 5.85 GHz, this horn antenna delivers a nominal 10 dBi gain and accommodates high power handling up to 1KW (CW). Featuring a standard UDR waveguide flange with a low VSWR of 1.25, it provides tailored radiation directivity with a 12° H-plane and 110° E-plane (-3dB) beamwidth. Precision-machined for outstanding RF efficiency and structural reliability, it is ideally suited for high-power wireless communications, radar systems, and EMC/EMI testing setups requiring Taiwanese engineering precision.
Electrical & RF Performance
| Frequency Range | 3.95 GHz to 5.85 GHz |
| Antenna Gain | 10 dBi |
| Maximum Power Handling | 1 KW (CW) |
| -3dB Beamwidth (H-Plane) | 12° |
| -3dB Beamwidth (E-Plane) | 110° |
| Waveguide Type | WR-187 |
| V.S.W.R Performance Profile | 1.25 : 1 |
Mechanical & Physical Data

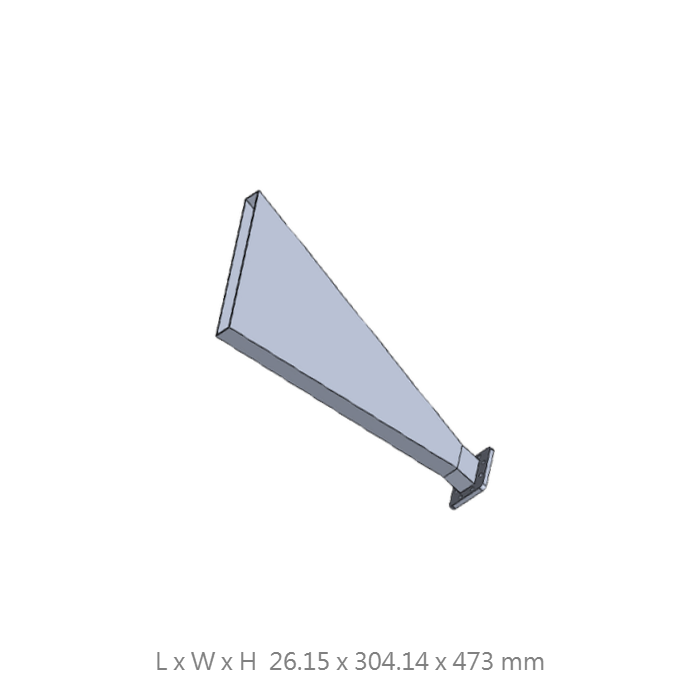

| Physical Dimensions (H x W x L) | 26.15 x 304.14 x 473 mm |
| Antenna Net Weight Profile | 1100 g (1.1 kg) |
| Waveguide Flange Type | UDR |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
1KW High Power Capacity
Engineered to handle high continuous power levels up to 1KW CW, suitable for demanding transmitter and RF immunity testing.
Wide E-Plane Coverage
Provides a broad 110° E-plane coverage paired with a narrow 12° H-plane beamwidth for optimized directional illumination.
Low VSWR Matching
Maintains an average VSWR of 1.25 across 3.95 to 5.85 GHz to ensure efficient RF power transmission and minimal signal reflections.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan under strict quality control standards for professional RF measurement and critical testing setups.
Contact FT-RF Engineering Division
Contact our technical engineering subdivision today to request official quote sheets, individual traceable gain calibration plots, certified documentation data packets, or customized mounting interface solutions.
