WR187 3.95GHz to 5.85GHz 25dbi Waveguide Input Flange UDR

Model No: WI-187-UDR-25

Made in Taiwan
Frequency Range: 3.95 - 5.85 GHz
Gain (Typical): 25 dBi
Beamwidth (H/V): 12° / 12°
Quantity:
INQUIRY

WR-187 High-Gain Standard Horn Antenna

Precision C-Band Reference Radiator | Standard UDR Flange Layout | 3.95 GHz – 5.85 GHz
The WI-187-UDR-25 is a laboratory-grade microwave Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for ultra-high performance directional transmission, satellite communications, and anechoic calibration routines across the continuous 3.95 GHz to 5.85 GHz C-Band spectrum. Meticulously optimized to enforce exceptional boresight path stability, this premium horn antenna delivers a commanding nominal directive gain profile of 25 dBi combined with an exceptionally low return reflection max VSWR profile. Precision CNC machined from high-grade structural aluminum alloy in Taiwan, the large-scale horn flare geometry establishes an ultra-focused and symmetric radiation footprint, providing narrow -3dB beamwidths of 12° in both the horizontal and vertical planes. Equipped with a standardized rectangular square UDR Flange layout, this robust 6.3 KG instrument ensures flawless leak-free electromechanical coupling and supports long-range point-to-point microwave links with zero boundary degradation. Its optimized microscopic structural tolerances avoid destructive field distortion modes, rendering it the definitive choice for precision radar calibration benchmarking, high-capacity terrestrial wireless backhaul testing, intensive EMI/EMC profiling, and mission-critical laboratory Signal Integrity verification setups.



Electrical & RF Performance
Frequency Range 3.95 GHz to 5.85 GHz (Continuous C-Band Optimization)
Gain Performance (Typical) 25 dBi
-3dB Beamwidth (Horizontal) 12° (Ultra-Narrow Spot Resolution Focus)
-3dB Beamwidth (Vertical) 12° (Symmetrical Radiation Footprint Envelope)
Signal Polarization Class Linear (Vertical or Horizontal Deployment Capable)
Mechanical & Physical Specs
Waveguide Styling Size EIA WR-187 (R48 / WG12 Standard Layout Architecture)
Waveguide Flange Designation UDR Flange Standard Layout Interface

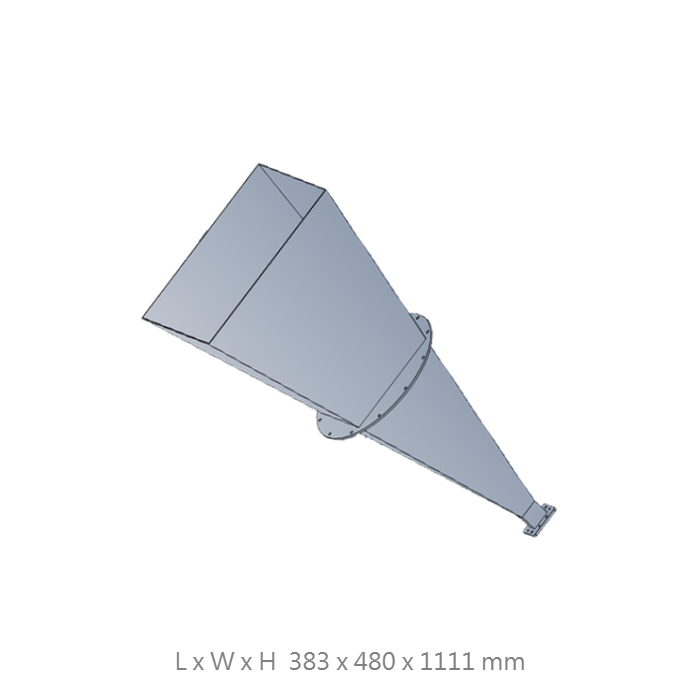

Physical Dimensions (L x W x H) 383 x 480 x 1111 mm
Net Weight (N.W.) 6.3 KG (Heavy-Duty Reinforced Structural Build)
Body Material Profile High-Grade Structural Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF)



Ultra-Narrow 12° Focus

Matched 12° horizontal and vertical beamwidths provide the highly concentrated, narrow radiation envelope necessary for extreme long-range point-to-point links and sharp radar target calibrations.

High-Gain Precision

Consistently maintains a stable, highly calibrated 25 dBi directive gain reference profile across the entire C-band spectrum, ensuring superior signal integrity and high-performance energy transfer paths.

Taiwanese Engineering Excellence

Precision designed and manufactured in Taiwan under strict industrial quality control parameters, providing highly accurate internal flare alignments, exceptional surface coplanarity, and traceable reference criteria.

Versatile Polarization Focus

Engineered to facilitate native vertical or horizontal linear polarization setups depending on installation orientation, offering maximum deployment flexibility for diverse microwave link architectures.

Industrial Grade Durability

Meticulously structured from high-grade structural aluminum alloy blocks to enforce superior mechanical rigidity and long-term dimensional constancy, mitigating physical sagging under severe field operations.

Get a Quote / Custom RF Solutions

Contact our specialized engineering division today to request tailored mounting frames, specialized laboratory calibration reports, individual certified V.S.W.R plot sheets, or unique coaxial adapter setups.
