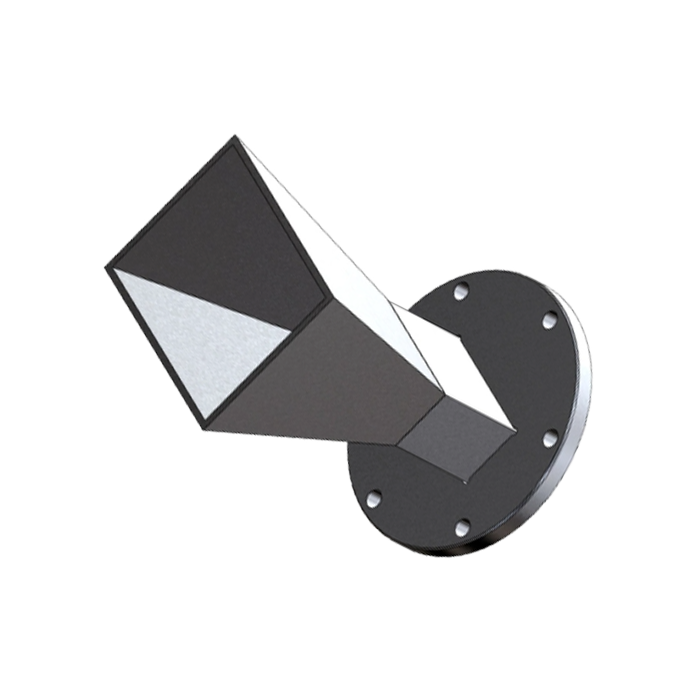

WR137 5.85 GHz to 8.2 GHz 10dbi Waveguide Horn Antenna without Adapter

WR137 5.85 GHz to 8.2 GHz 10dbi Waveguide Horn Antenna without Adapter

Model No: WI-137-UAR-10

Mechanical Drawing: Download

  • Original Model:  WI-137-A1-10
  • Waveguide: WR-137
  • Frequency: 5.85 to 8.2GHz
  • Gain: 10 dbi
Quantity:
INQUIRY

  • Description & Specification

Application:

  • WR137 5.85 GHz to 8.2 GHz 10dbi Waveguide Horn Antenna without Adapter
  • EMI/EMC testing
  • Antenna gain measurements.

Feature:

  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Customize Color

Specifications:

  • Original Model:  WI-137-A1-10
  • Model: WI-137-UAR-10
  • Waveguide: WR-137
  • Frequency: 5.85 to 8.2GHz
  • Gain: 10 dbi
  • Max Power(W): 800W
  • H-plane(-3db):56
  • E-plane(-3db):54

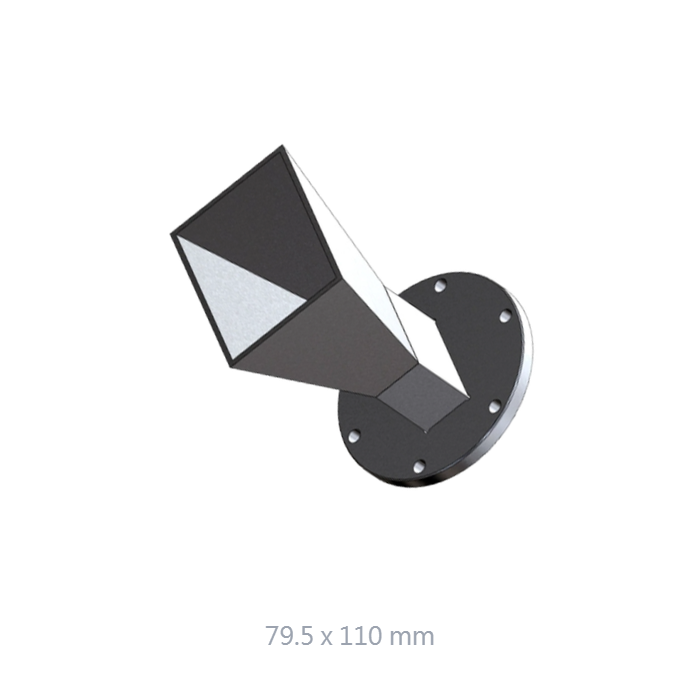

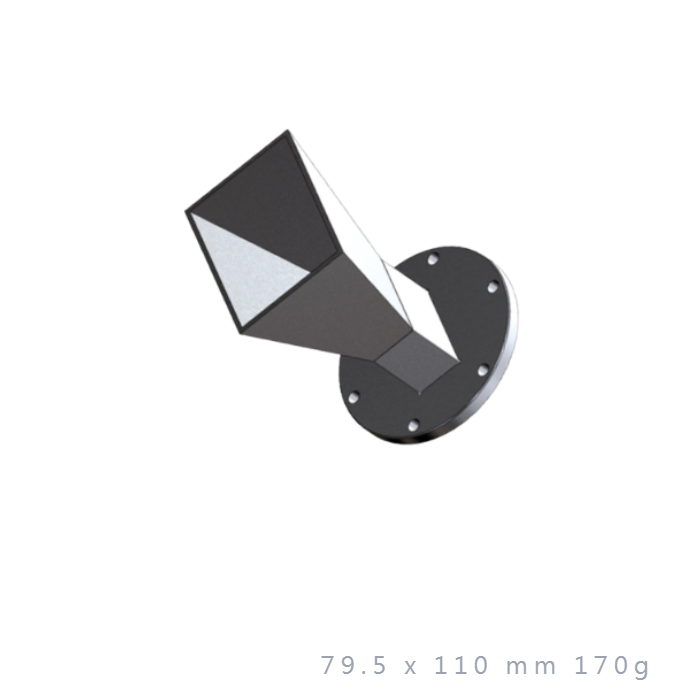

  • Size(mm):79.5x110
  • Wieght(g):170
  • Waveguide Flange:UAR
  • V.S.W.R:1.3
  • Material: Aluminum
