Description & Specification
WR-137 H-Plane Sectoral Horn Antenna
Precision C-Band Sectoral Radiator | Standard UDR Flange Layout | 5.85 GHz – 8.2 GHz
The WI-137-UDR-10H is a laboratory-grade microwave H-Plane Sectoral Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for specialized radiation pattern shaping and calibration routines across the 5.85 GHz to 8.2 GHz C-Band spectrum. By flaring specifically within the horizontal H-plane geometries, this premium sectoral horn enforces an asymmetric illumination path, delivering an ultra-wide 105° E-plane spatial coverage envelope while simultaneously preserving a focused 15° H-plane beamwidth aperture. Precision CNC machined from high-grade structural aerospace aluminum alloy in Taiwan, the radiator maintains a flat nominal directive gain profile of 10 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Equipped with a standardized rectangular square UDR Style cover flange layout, this robust 580 g component ensures flawless electromechanical coupling and safely manages continuous wave power loads up to 800 Watts (CW). This optimized structural architecture avoids destructive field distortion modes, rendering it the definitive choice for wide-area electromagnetic susceptibility sweeps, EMI/EMC testing, multi-point communication links, tactical area protection, and mission-critical Signal Defense field installations.
Electrical & RF Performance
| Frequency Range | 5.85 GHz to 8.2 GHz (Continuous C-Band Support) |
| Antenna Type Class | H-Plane Sectoral Horn |
| Standard Nominal Gain | 10 dBi |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 |
| Maximum Power Handling | 800 Watts (CW Continuous Wave) |
| -3dB Beamwidth (H-Plane) | 15° (Focused Azimuth Control) |
| -3dB Beamwidth (E-Plane) | 105° (Ultra-Wide Sectoral Envelope Coverage) |
| Signal Polarization Class | Linear |
| Nominal Interconnect Impedance | 50 Ohms (Coaxial Launch Mating Dependent) |
Mechanical & Physical Specs
| Waveguide Size Standard | EIA WR-137 (R70 / WG14 Layout) |
| Waveguide Flange Designation | UDR Style Flange Layout Interface Standard Layout |

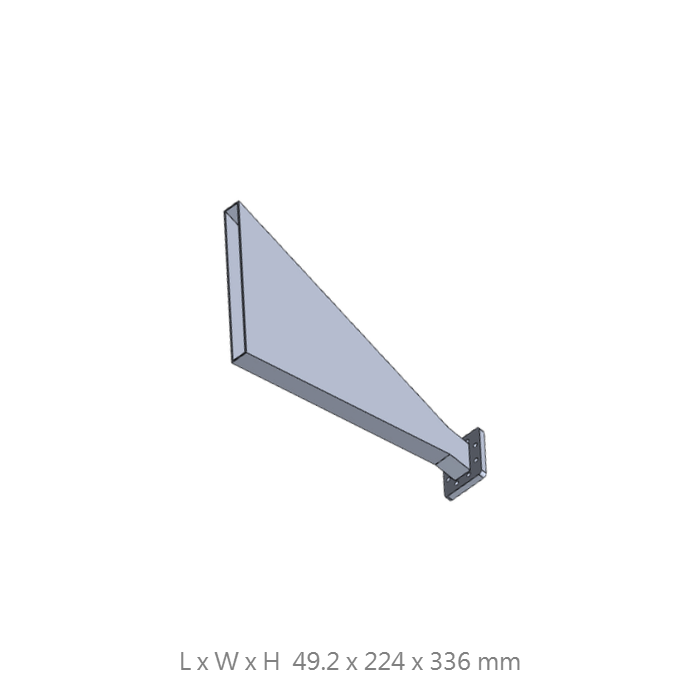

| Physical Dimensions (L x W x H) | 49.2 x 224 x 336 mm |
| Net Weight | 580 g (Precision Lightweight Build) |
| Body Material Profile | High-Grade Structural Aerospace Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Ultra-Wide Sectoral Coverage
The specialized flared H-plane design creates an extensive 105° illumination swath in the E-plane, ideal for broad-area monitoring, elevation tracking arrays, or multi-point communication links.
800W High-Power Domination
Robustly engineered structural core effortlessly manages up to 800 Watts of continuous wave (CW) power loads without experiencing thermal variation or mechanical breakdown during high-energy testing sweeps.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, providing highly accurate internal flare geometries and absolute flat surface profiles.
High-Fidelity Signal Integrity
Precision WR-137 geometry elements neutralize mode field distortion across the 5.85–8.2 GHz spectrum, ensuring minimal path return loss and stable, predictable radiation patterns for mission-critical deployments.
Tactical Lightweight Build
Precision-machined aerospace-grade aluminum construction provides exceptional structural rigidity while establishing an optimized 580 g body footprint that remains easy to deploy on tactical masts or mobile platforms.
Request a Professional Quote
Contact our technical engineering team today to request certified individual calibration data, individual radiation charts, specialized waterproof enclosures, or customized E-plane sectoral layouts.
