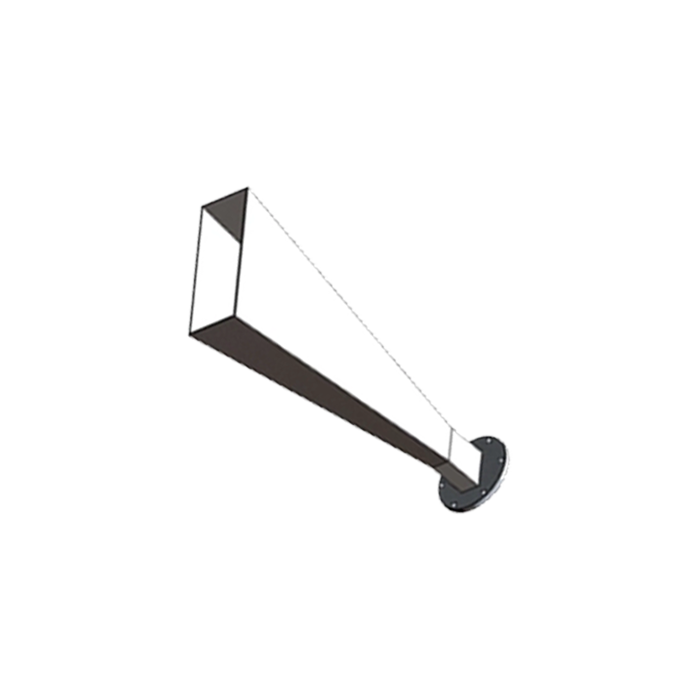

WR-137 H-Plane Sectoral Horn Antenna
Precision C-Band Sectoral Radiator | Standard UAR Flange Layout | 5.85 GHz – 8.2 GHz
The WI-137-UAR-12H is a laboratory-grade microwave H-Plane Sectoral Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for specialized radiation pattern control and calibration routines across the 5.85 GHz to 8.2 GHz C-Band spectrum. By flaring specifically within the horizontal H-plane geometries, this premium sectoral horn enforces an asymmetric illumination path, delivering a broad 86° E-plane spatial coverage envelope while simultaneously preserving a focused 28° H-plane beamwidth aperture. Precision CNC machined from high-grade structural aerospace aluminum alloy in Taiwan, the radiator maintains a flat nominal directive gain profile of 12 dBi combined with an exceptionally low maximum V.S.W.R threshold of 1.3 : 1. Equipped with a standardized rectangular square UAR Style cover flange layout, this robust 580 g component ensures flawless electromechanical coupling and safely manages continuous wave power loads up to 800 Watts (CW). This optimized structural architecture avoids destructive field distortion modes, rendering it the definitive choice for broad-area monitoring, EMI/EMC testing, high-capacity communication links, tactical area protection, and mission-critical Signal Defense field installations.
Electrical & RF Performance
| Frequency Range | 5.85 GHz to 8.2 GHz (Continuous C-Band Support) |
| Standard Nominal Gain | 12 dBi |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 |
| Maximum Power Handling | 800 Watts (CW Continuous Wave) |
| -3dB Beamwidth (H-Plane) | 28° (Focused Azimuth Resolution) |
| -3dB Beamwidth (E-Plane) | 86° (Wide Sectoral Envelope Coverage) |
| Signal Polarization Class | Linear |
| Nominal Interconnect Impedance | 50 Ohms (Coaxial Launch Mating Dependent) |
Mechanical & Construction Parameters
| Waveguide Size Standard | EIA WR-137 (R70 / WG14 Layout) |
| Waveguide Flange Designation | UAR Style Flange Layout Interface Standard Layout |
| Physical Dimensions (L x W x H) | 79.5 x 150 x 384 mm |
| Net Weight | 580 g (Precision Lightweight Build) |
| Body Material Profile | High-Grade Structural Aerospace Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
86° Sectoral Coverage
The specialized flared H-plane mechanics form an extensive 86° sectoral illumination swath in the E-plane, ideal for broad-area surveillance monitoring or high-capacity tactical communication links.
800W High-Power Domination
Robustly engineered structural core effortlessly manages up to 800 Watts of continuous wave power loads without experiencing thermal variation, providing a highly reliable radiator for active defense installations.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring absolute flange coplanarity, exact interior launcher tolerances, and traceable reference criteria.
High-Fidelity Signal Integrity
Precision-optimized WR-137 throat elements eliminate mode path anomalies across the 5.85–8.2 GHz spectrum, ensuring exceptionally low return loss parameters and stable radiation footprints.
Consolidated Performance Data
Backed by a traceable and comprehensive engineering performance database, delivering accurate system calibration factors and completely repeatable measurement data logs.
Request a Professional Quote
Contact our technical engineering division today to obtain certified individual calibration records, certified individual radiation patterns, alternative coaxial launch transitions, or custom mounting hardware profiles.
