WR137 5.85 to 8.2GHz 25 dbi Waveguide Input Horn Antenna, Flange: UDR

Model No: WI-137-UDR-25

Made in Taiwan
Frequency Range: 5.85 - 8.2 GHz
Standard Gain: 25 dBi
Waveguide Size: WR-137 (UDR)
Max Power (W): 800 Watts
Stock: 0
2026/06/17
Quantity:
INQUIRY

5.85 GHz to 8.2 GHz WR-137 High-Power Horn Antenna

Modular Multi-Segment Build | High Gain Directivity | Model: WI-137-UDR-25
The WI-137-UDR-25 is an industrial-grade, large-scale microwave Standard Gain Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for ultra-high performance directional transmission and precision calibration routines across the 5.85 GHz to 8.2 GHz C-Band spectrum. Optimized to deliver a commanding and highly calibrated directive gain profile of 25 dBi, this high-fidelity instrument achieves an exceptionally narrow and focused directional radiation footprint with a -3dB beamwidth of only 10° horizontal and 11° vertical. High-precision manufactured from structural aluminum alloy in Taiwan, the antenna features an advanced, divisible Modular Multi-Segment Structure that addresses transportation challenges for large C-band apertures while guaranteeing flawless mechanical stability and a maximum V.S.W.R threshold of 1.3 : 1. Equipped with a standardized rectangular square UDR Style Flange interface, this heavy-duty 11 kg radiator efficiently manages massive continuous power loads up to 800 Watts (CW) with zero electromechanical boundary degradation. It stands as the definitive choice for intense high-field EMI/EMC compliance testing, long-range transmitter calibration, professional wireless chambers, and mission-critical Signal Defense infrastructure arrays.



Electrical & RF Performance
Frequency Range 5.85 GHz to 8.2 GHz (C-Band Continuous Support)
Standard Nominal Gain 25 dBi
V.S.W.R Profile (Max) ≤ 1.3 : 1
Maximum Power Handling 800 Watts (CW Continuous Wave)
-3dB Beamwidth (H-Plane) 10° (Sharp Spot Resolution)
-3dB Beamwidth (E-Plane) 11° (Highly Directional Pattern Alignment)
Nominal System Impedance 50 Ohms (Coaxial Launch Mating Dependent)
Mechanical & Physical Specs
Waveguide Size Standard EIA WR-137 (R70 / WG14 Layout)
Waveguide Flange Designation UDR Style Flange Standard Layout Interface

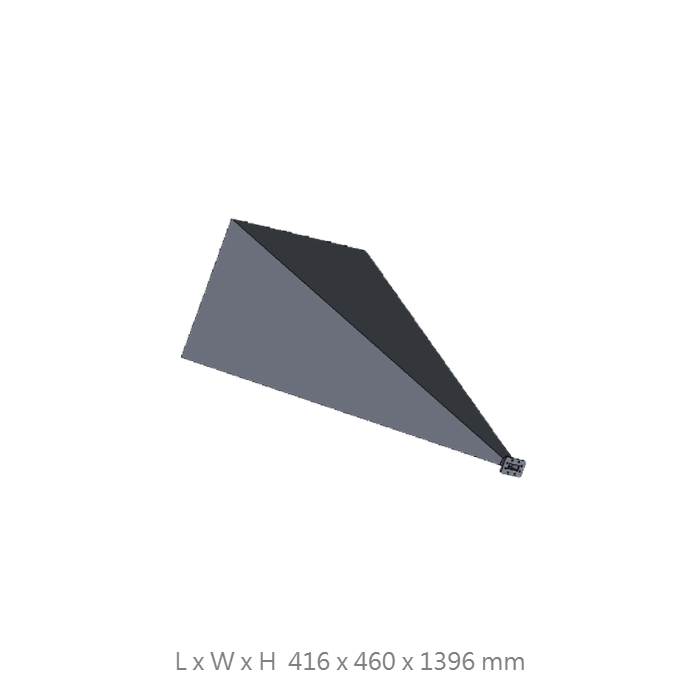

Physical Dimensions (L x W x H) 416 x 460 x 1396 mm
Net Weight 11000 g / 11 kg (Heavy-Duty Large-Scale Build)
Structural Construction Profile Modular Multi-Segment Design Format Available
Body Material Profile High-Grade Structural Machined Aluminum
Manufacturing Origin Taiwan Design & Made in Taiwan (FT-RF)



800W High-Power Domination

Robustly engineered structural core effortlessly manages massive continuous power loads up to 800W CW, providing a highly reliable radiator for high-intensity protection operations and long-range transmitter calibration.

High-Gain Sharp Directivity

Delivers an ultra-focused 25 dBi gain profile mated to highly concentrated beamwidths (10° H-plane / 11° E-plane), providing the stringent boresight accuracy necessary for mission-critical antenna calibration and precise signal management.

Modular Multi-Segment Design

Divisible into a highly accurate modular multi-segment structure to facilitate easier field transportation, convenient laboratory storage, and premium alignment consistency on deployment sites.

Taiwanese Engineering Excellence

Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring absolute flange coplanarity, exact interior launcher tolerances, and traceable reference criteria.

Superior Structural Signal Integrity

Large-scale high-grade aluminum block construction completely avoids mode field distortion across the full 5.85–8.2 GHz spectrum, maintaining low return loss and maximum mechanical stability in demanding tactical deployments.

Request a Professional Quote

Contact our technical engineering division today to request specialized gain configurations, modular segment requirements, individual certified V.S.W.R plots, or alternative waveguide flange patterns.
