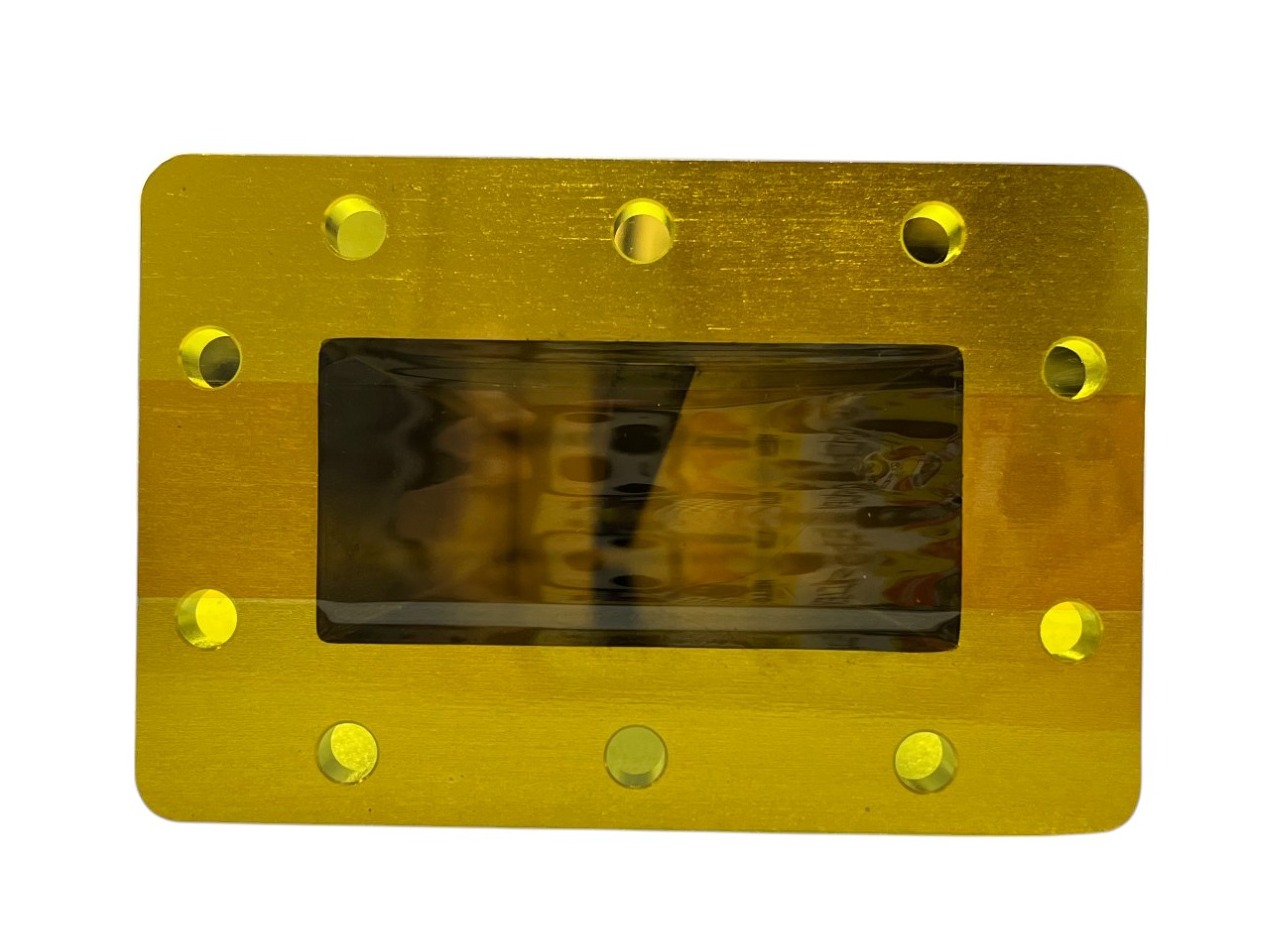

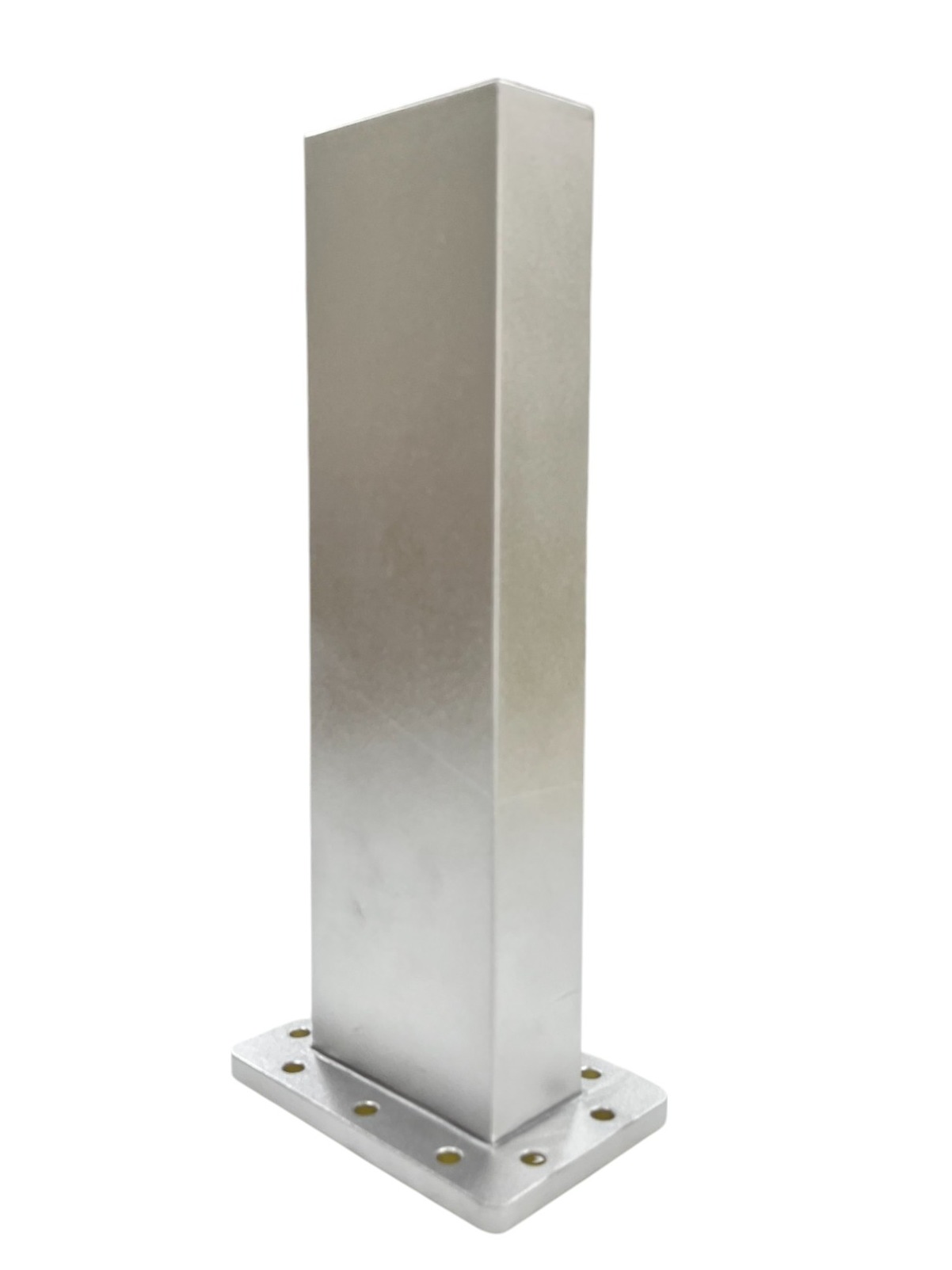

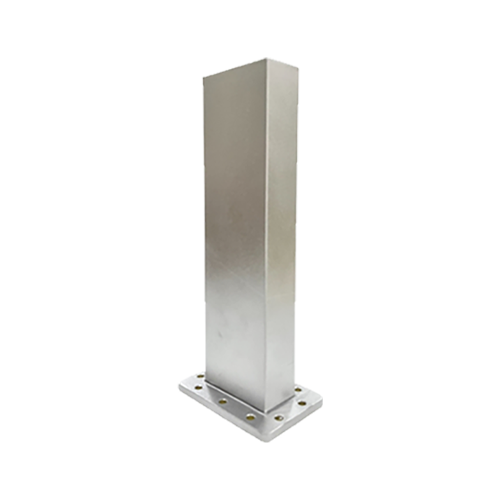

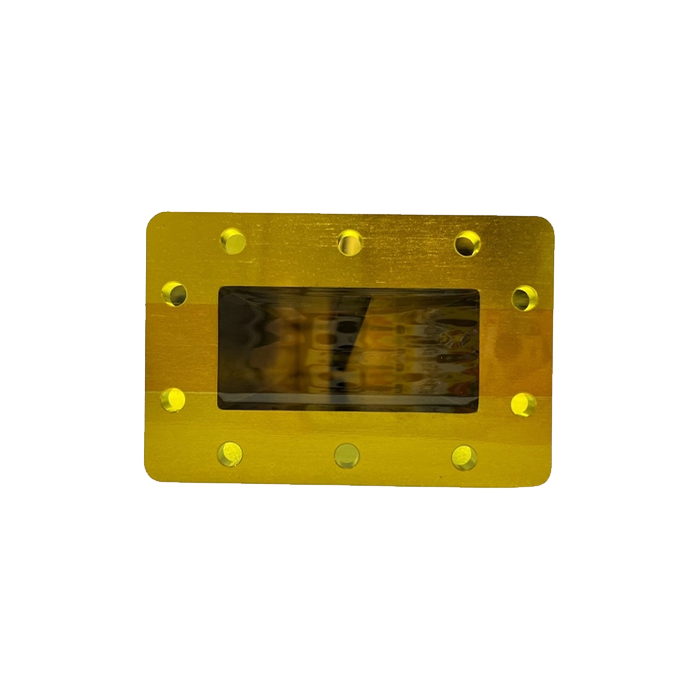

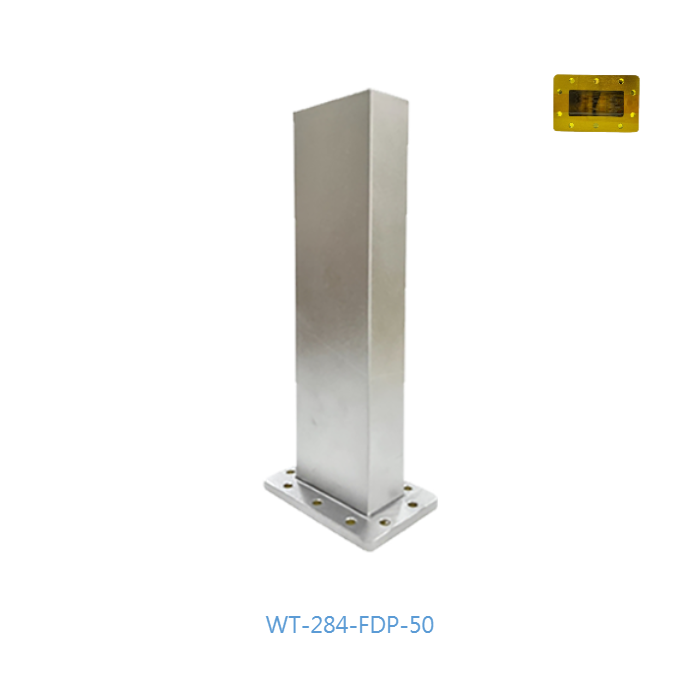

WT-284-FDP-50 Waveguide Termination
S-Band Precision Load | Standard WR284 Rectangular Profile | 2.60 – 3.95 GHz
The WT-284-FDP-50 is a high-precision Waveguide Termination (dummy load) specifically engineered for professional S-band system-level integrations. Operating within the 2.60 GHz to 3.95 GHz frequency spectrum, this premium component bridges standard rectangular EIA WR284 architectures with deployment assemblies requiring an exact mechanical mounting footprint. Featuring an exceptionally stable, ultra-low maximum VSWR profile of 1.05 : 1, it guarantees high-fidelity signal absorption to protect sensitive high-value instrumentation and maintain absolute Signal Integrity. Expertly designed and manufactured in Taiwan, this robust 0.62 kg low-power termination safely handles continuous wave power levels up to 50W (CW), ensuring long-term electro-mechanical alignment and unwavering durability across laboratory test benches and specialized RF sub-systems.
Electrical & RF Performance
| Frequency Range | 2.60 - 3.95 GHz (S-Band) |
| V.S.W.R (Max) | 1.05 : 1 |
| Power Handling (CW) | 10 Watts to 50 Watts |
Mechanical & Environmental Specifications
| Waveguide Size Standard | EIA WR284 (R32 / WG10) |
| Waveguide Flange Designation | FDP32 Style |
| Flange Mechanical Profile | Square Flange |
| Waveguide Architecture Type | Rectangular |
| Load Classification | Low Power Termination |
| Net Weight | 0.62 kg |
| Application Frameworks | General-Purpose Termination / Test Bench Configurations / System-Level Deployment |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Superior VSWR Stability
Consistently maintains an optimized VSWR of 1.05 or lower across the full frequency band, ensuring near-perfect signal absorption for critical system calibration parameters.
Standard FDP32 Square Flange
Equipped with a precision-machined square flange interface pattern, providing secure mechanical connection and standard integration capabilities into existing waveguide networks.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigorous quality control standards, ensuring consistent electromechanical flatness and enduring phase reliability.
Superior Signal Integrity
Engineered for high-integrity electromagnetic matching absorption, protecting high-value instrumentation and transmitter architectures from hazardous reflected power waves.
Inquire About Custom Waveguide Solutions
Contact our engineering team today to discuss custom flange orientations, specialized power handling specifications, integrated sub-assembly designs, or alternative test parameters.
