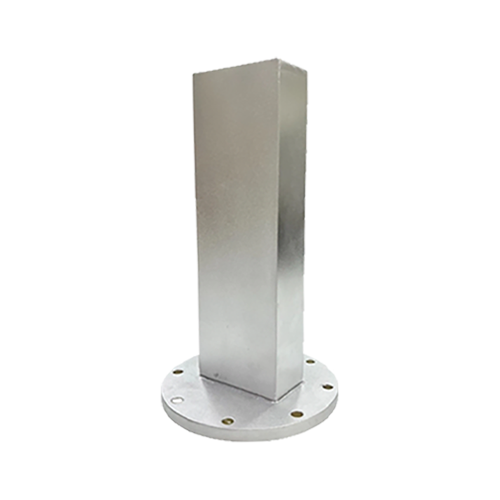

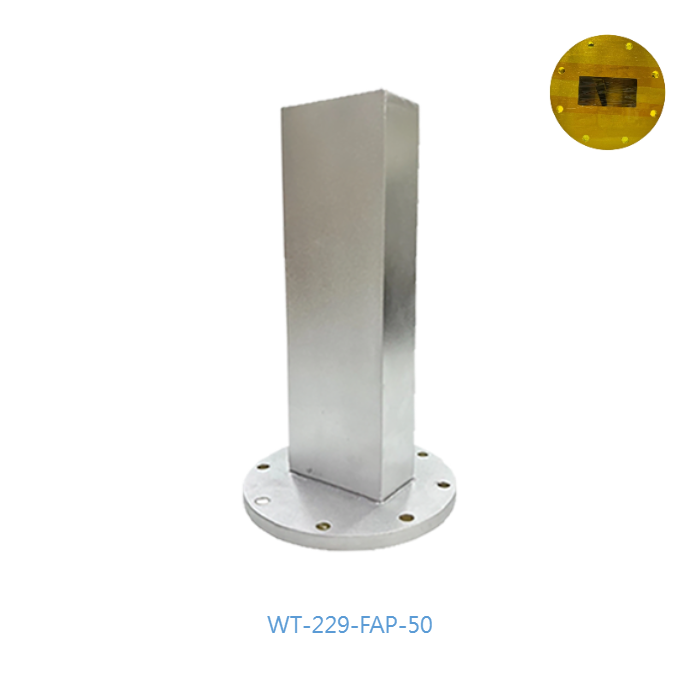

WT-229-FAP-50 Waveguide Termination
S/C-Band Low Power Waveguide Load (WR229) | FAP40 Round Flange | 3.30 - 4.90 GHz
The WT-229-FAP-50 is a high-performance low power waveguide termination professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for general-purpose low VSWR terminations in system-level applications. Operating seamlessly within the 3.30 GHz to 4.90 GHz S and C frequency bands, it provides exceptional low VSWR performance of 1.05 or less. This model is ideal for laboratory test bench configurations and acts as a dummy load for moderate power levels up to 50W. Precision machined in Taiwan, it features a standardized FAP40 round flange interface with a thickness of 8mm to ensure absolute alignment accuracy and robust RF leakage management.
Electrical Specification
| Frequency Range (GHz) | 3.30 - 4.90 GHz |
| VSWR, Max | 1.05 : 1 |
| Waveguide Size EIA WR | WR229 |
| Waveguide Band | S, C-Band |
| Waveguide Type | Rectangular (58.17 x 29.08 mm Internal Aperture) |
| WG Load Type | Low Power |
| Power Handling, CW, (W) | 10 - 50 Watts |
Mechanical & Interface Specifications

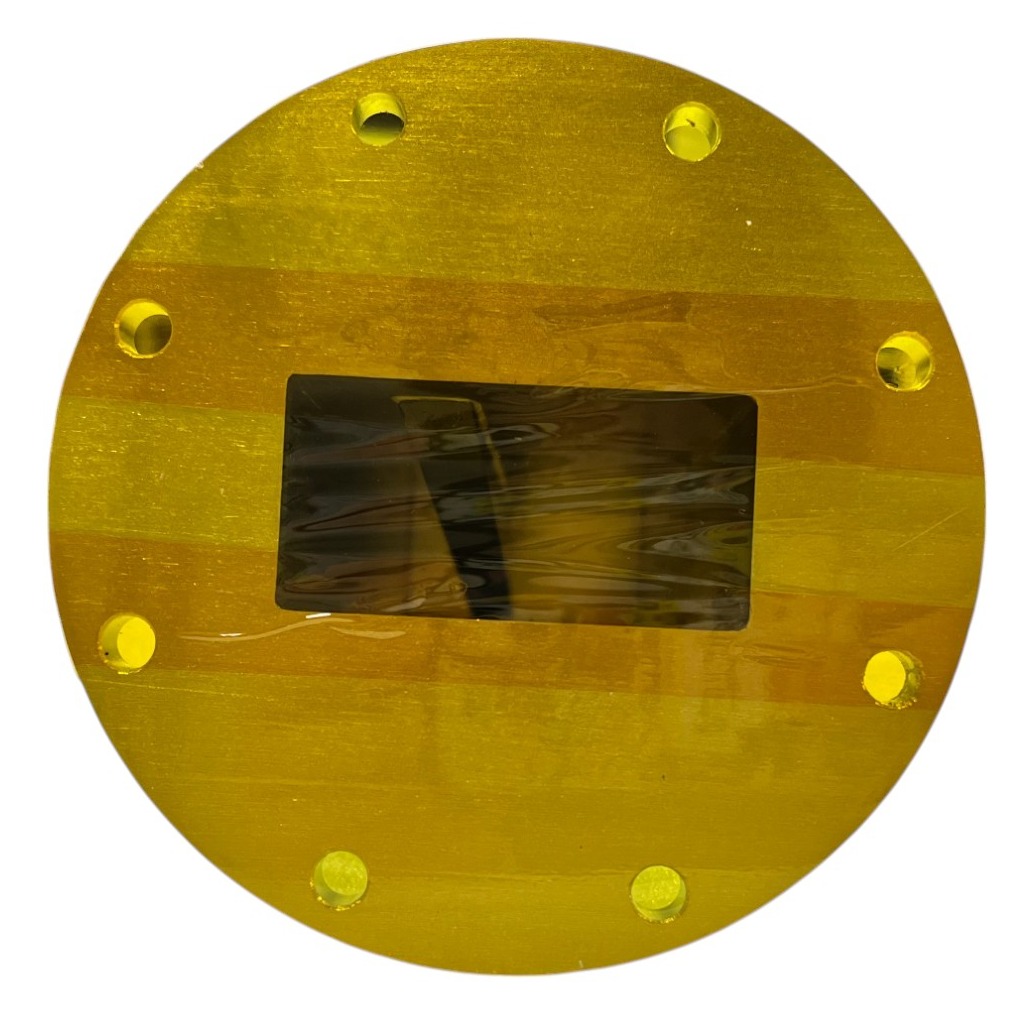

| Flange Style | Round Flange (Diameter 115.6 mm) |
| Flange Designation | FAP40 Layout (8-Hole Structure, 4 x 6.35 mm Tapped Hole and 4 x 6.35 mm Round Hole Combination on 101.38 mm Pitch Circle) |
| Flange Thickness | 8 mm |
| Hole Angular Spacing | 45 Degrees (22.5 Degree offset from reference horizontal) |
| Net Weight | 0.445 kg |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
| Compliance / Application | Standard Industrial Grade / Test Bench Configurations & Dummy Loads |
Low VSWR Absorption
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal back-reflection for precision calibration benches.
S/C-Band Frequency Coverage
Fully optimized for the 3.30 GHz to 4.90 GHz multi-band range, providing absolute support for critical satellite and commercial infrastructures.
FAP40 Round Flange Interface
Standardized circular mechanical layout ensures precise electromechanical alignment and minimized reflection coefficient variance.
Precision Taiwan Build
CNC machined from premium aluminum alloys in Taiwan to maintain high thermal stability and strict geometric control metrics.
For Custom Inquiries
For custom flange configurations, higher power ratings, or specific material requirements, contact our engineering team.
