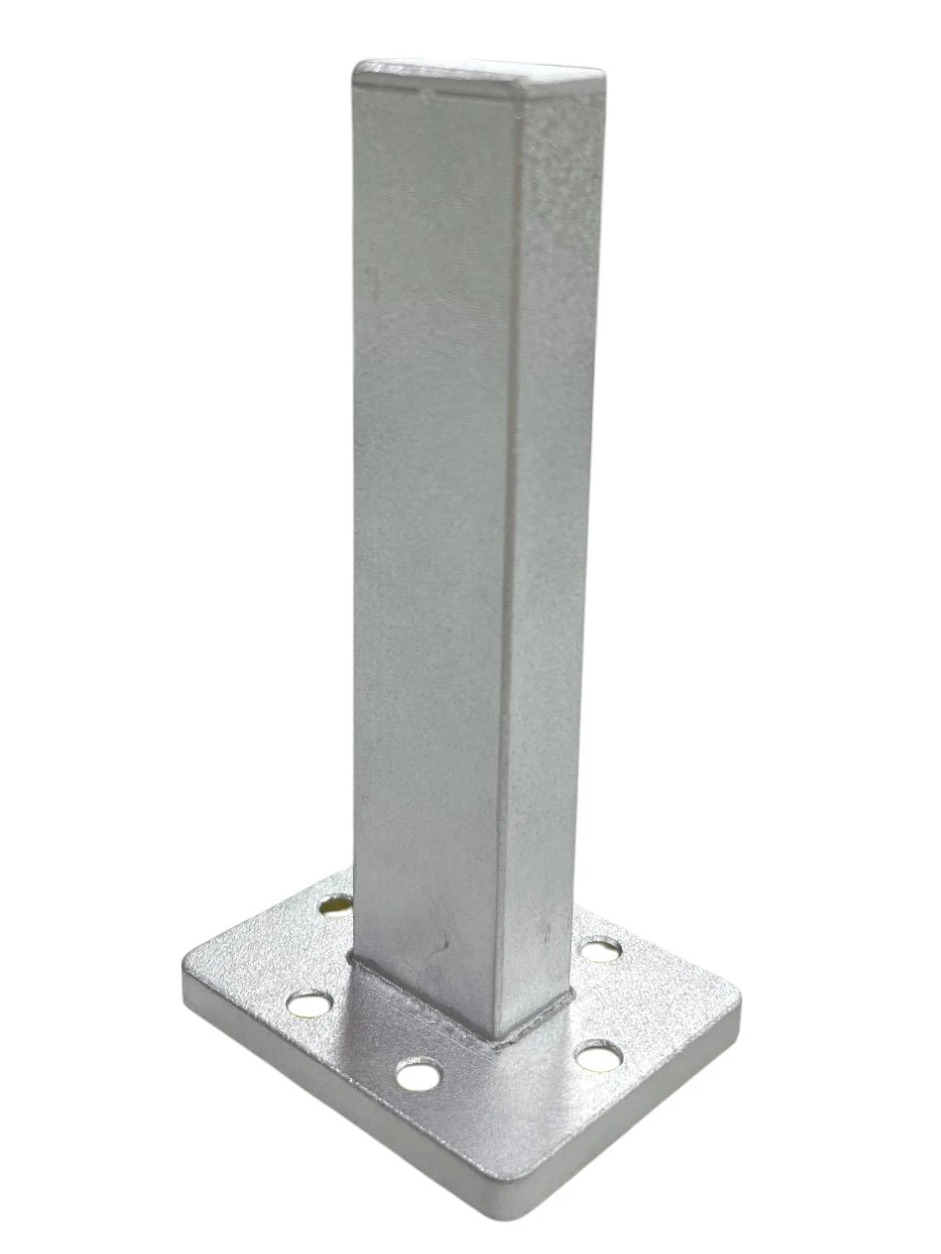

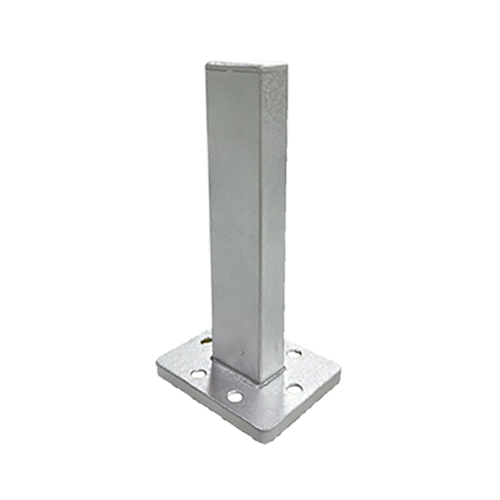

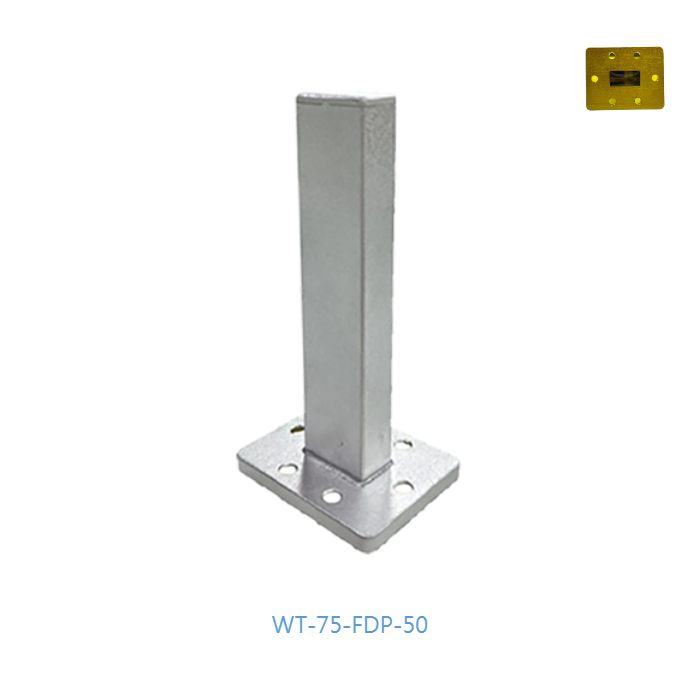

WT-75-FDP-50 Waveguide Termination
X/Ku-Band Low Power Waveguide Load (WR75)
The WT-75-FDP-50 is a high-precision low power waveguide termination engineered for the X and Ku-band spectrum. Operating effectively between 10.0 GHz and 15.0 GHz, it delivers outstanding low VSWR performance (≤ 1.05). This ultra-lightweight model features an FDP120 Square Flange, making it a reliable solution for system-level terminations and test bench configurations with power capacity up to 50W.
Technical Specifications
Electrical Specifications
[Image of WR75 waveguide rectangular load profile]| Frequency Range | 10.0 - 15.0 GHz |
| Waveguide Band | X, Ku-Band |
| Waveguide Size | EIA WR75 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 2W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications

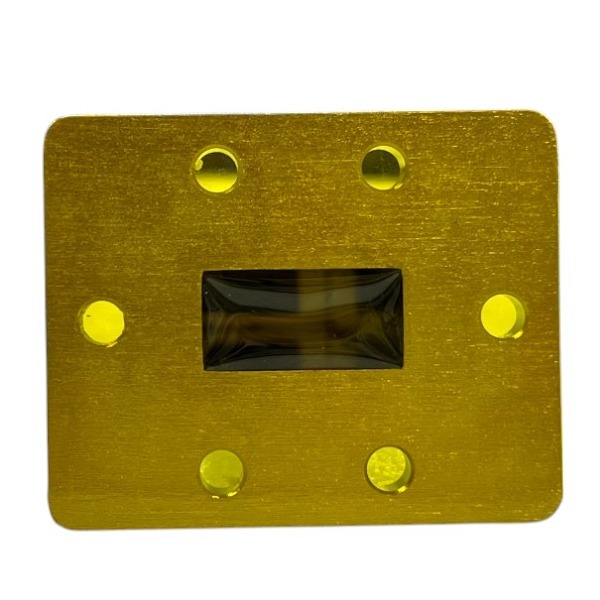

[Image of FDP120 square flange bolt pattern]| Flange Style | Square |
| Flange Designation | FDP120 |
| Net Weight | 0.055 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maintains a maximum VSWR of 1.05 for high-accuracy signal absorption and minimal reflection loss.
Maintains a maximum VSWR of 1.05 for high-accuracy signal absorption and minimal reflection loss.
Optimized X/Ku-Band Coverage
Tailored for the 10.0 GHz to 15.0 GHz range, ideal for precision Ku-band satellite and radar systems.
Tailored for the 10.0 GHz to 15.0 GHz range, ideal for precision Ku-band satellite and radar systems.
Ultra-Lightweight Design
Precision-engineered at only 0.055 kg, optimized for compact system architectures and field testing.
Precision-engineered at only 0.055 kg, optimized for compact system architectures and field testing.
FDP120 Square Flange
Standard square flange interface ensures precision alignment and standardized mechanical mounting.
Standard square flange interface ensures precision alignment and standardized mechanical mounting.
50W CW Power Capacity
Reliably handles continuous wave power levels from 2W up to 50W with consistent electrical integrity.
Reliably handles continuous wave power levels from 2W up to 50W with consistent electrical integrity.
Taiwan Engineering Quality
Precision-manufactured in Taiwan to meet stringent industrial and laboratory requirements.
Precision-manufactured in Taiwan to meet stringent industrial and laboratory requirements.
