Description & Specification

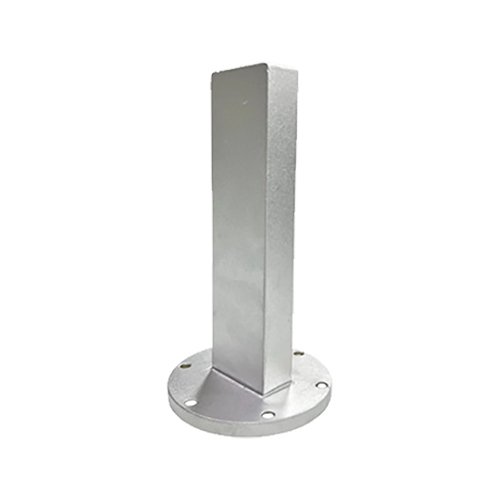

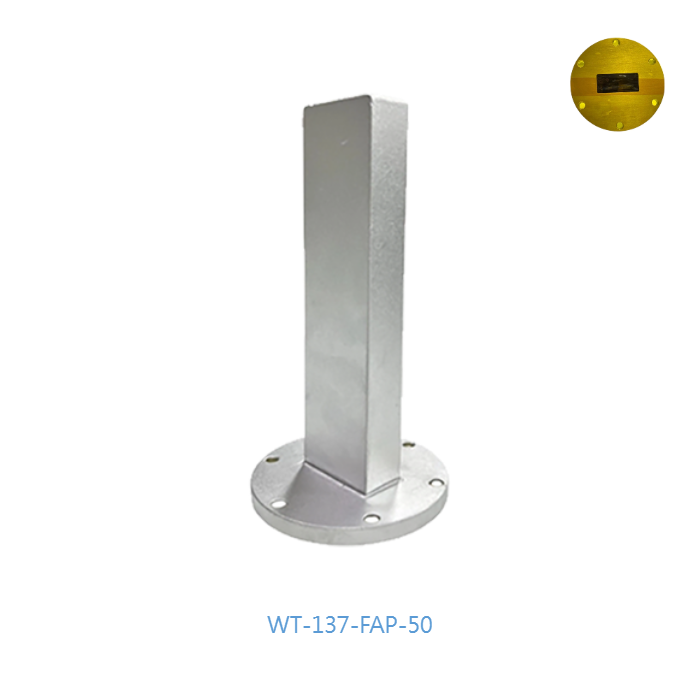

WT-137-FAP-50 Waveguide Termination
C/X-Band Precision Load | Standard WR-137 Rectangular Profile | 5.85 - 8.20 GHz
The WT-137-FAP-50 is a precision-engineered low-power Waveguide Termination designed for multi-band applications across the C and X-band spectrum. Operating flawlessly from 5.85 GHz to 8.20 GHz, this premium component bridges standard EIA WR137 rectangular geometries with systems requiring a robust mechanical interface. Featuring an ultra-low maximum VSWR profile of 1.05 : 1, it guarantees flawless signal absorption with minimal reflected power for sensitive calibration and evaluation sub-systems. Expertly CNC-machined from high-grade aluminum in Taiwan, this compact 0.2 kg termination safely manages continuous wave power levels up to 50W (CW), ensuring excellent electro-mechanical integrity in demanding laboratory and field frameworks.
Electrical & RF Performance
| Frequency Range | 5.85 - 8.20 GHz (C, X-Band) |
| V.S.W.R (Max) | 1.05 : 1 |
| Maximum Power Handling | 50 Watts (CW) |
| Impedance | Matched Waveguide |
Mechanical & Interface Specifications
| Waveguide Standard Size | EIA WR137 / R70 / WG14 |
| Waveguide Flange Interface | FAP70 Round Style |
| Waveguide Type | Rectangular |
| Load Classification | Low Power Termination |
| Net Weight | 0.2 kg |
| Body Material | High-Grade Machined Aluminum |
| Environmental Directives | RoHS Compliant |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Low VSWR Performance
Maximum VSWR of 1.05 ensures highly accurate signal absorption with minimal reflected power for precision laboratory measurement and testing lines.
Multi-Band Coverage
Specifically optimized internal geometries cover the 5.85 GHz to 8.20 GHz range, integrating both C and X-band regions for versatile instrumentation use.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality control standards, ensuring consistent performance parameters across demanding framework configurations.
FAP70 Round Flange
Standardized round flange pattern ensures exact electromechanical alignment and secure mechanical connection into professional waveguide infrastructures.
Inquire About Custom Waveguide Solutions
Contact our engineering team today to discuss custom flange drillings, alternative material structures, higher power handling layouts, or specialized frequency tuning.
