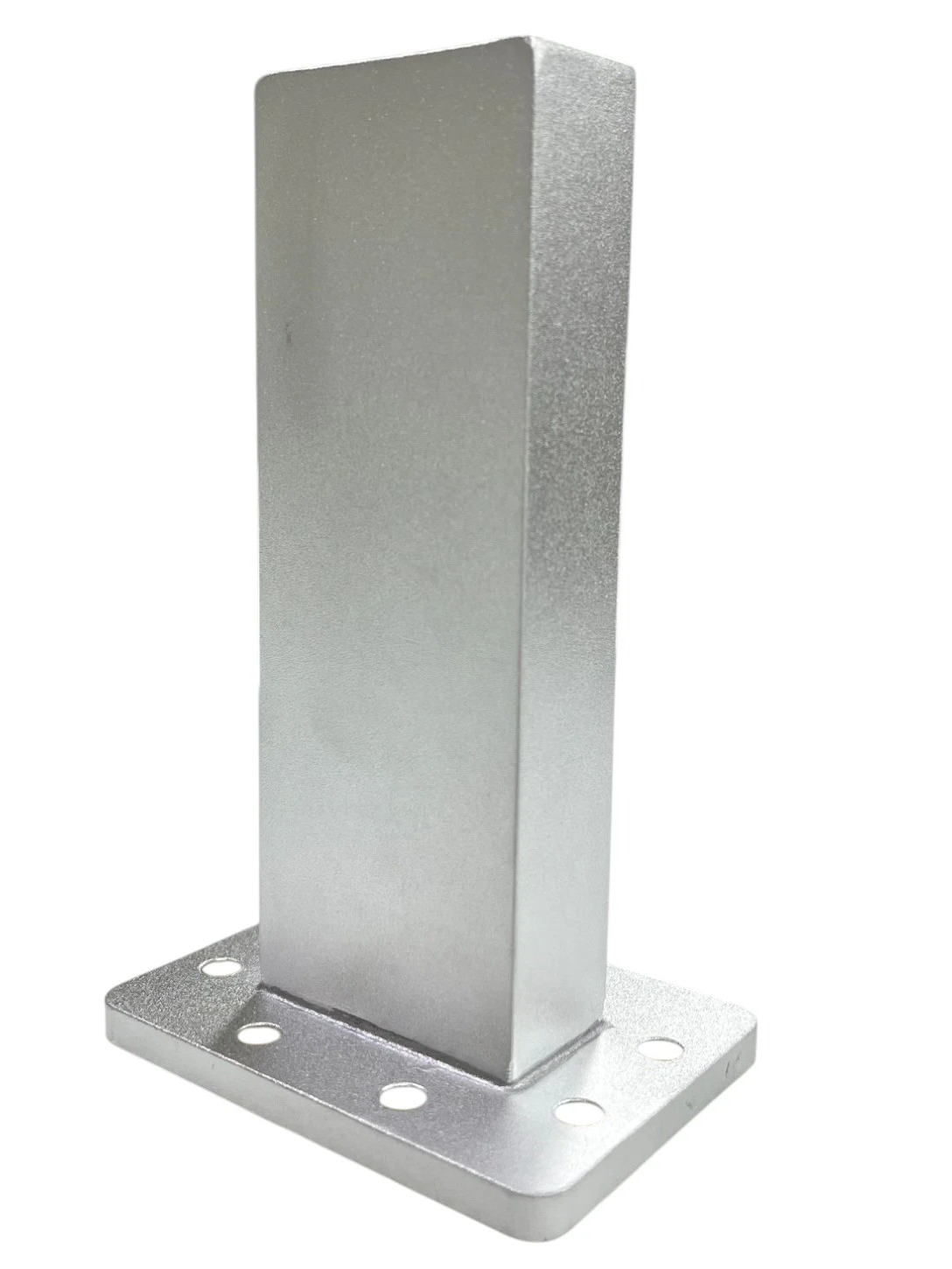

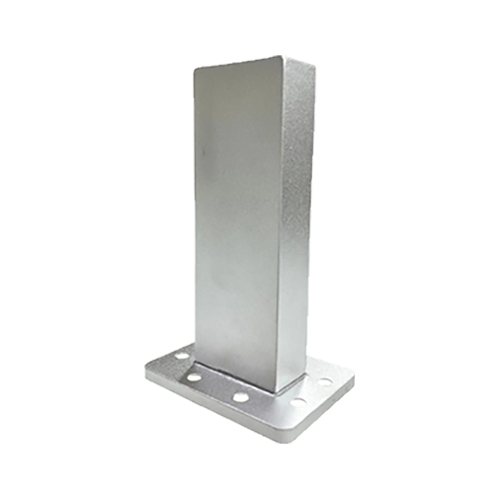

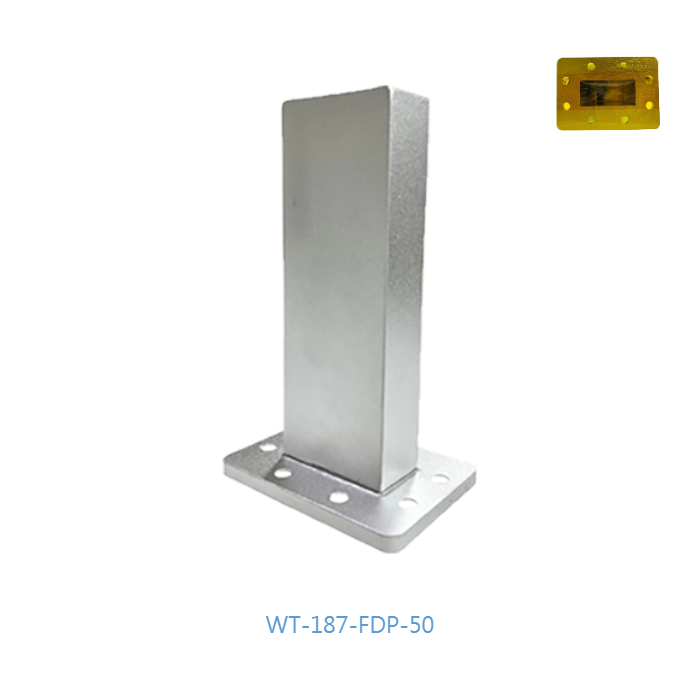

WT-187-FDP-50 Waveguide Termination
S/C-Band Low Power Waveguide Load (WR187)
The WT-187-FDP-50 is a precision low power waveguide termination engineered for S and C-band communications. Operating within the 3.95 GHz to 5.85 GHz frequency range, it offers an exceptional low VSWR performance (≤ 1.05). This model is ideal for high-accuracy test bench configurations and system-level dummy loads with CW power handling up to 50W.
Technical Specifications
Electrical Specifications

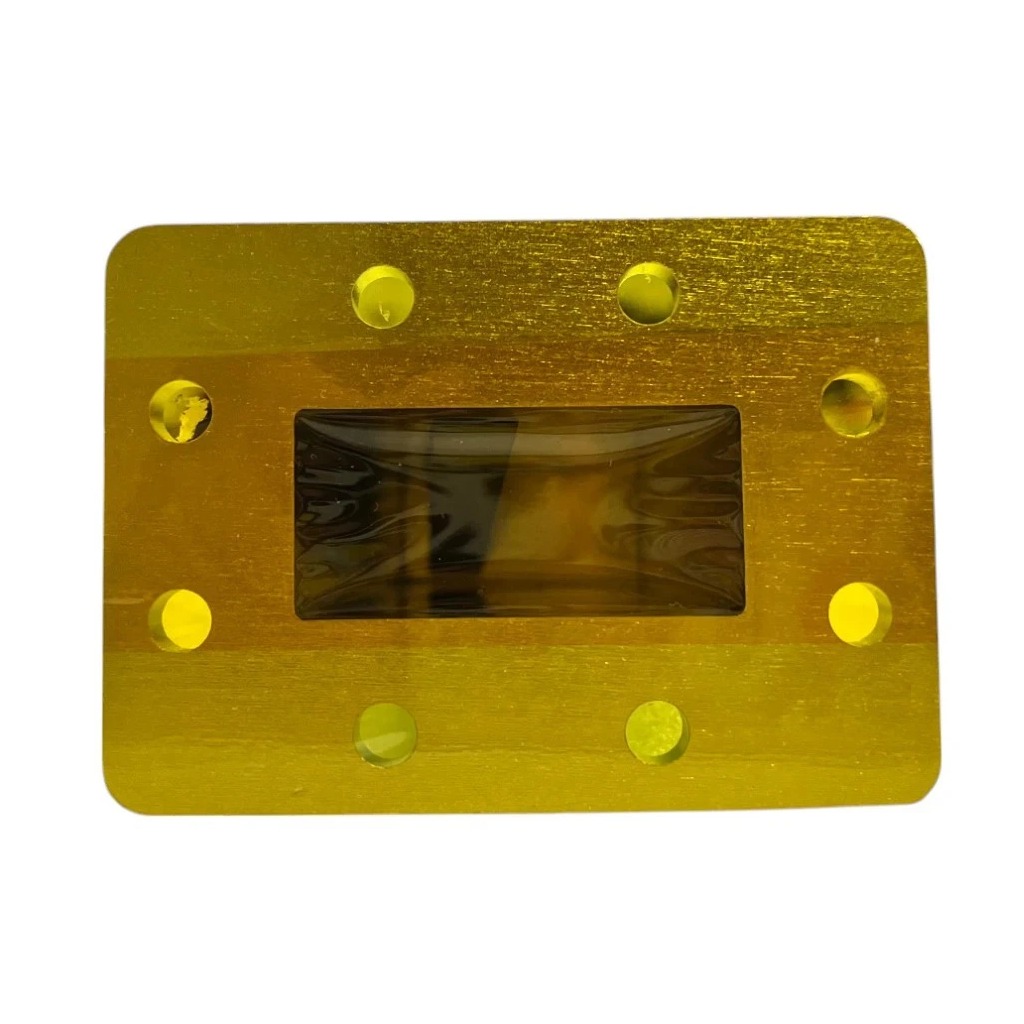

[Image of WR187 waveguide dimensions and FDP48 square flange layout]| Frequency Range | 3.95 - 5.85 GHz |
| Waveguide Band | S, C-Band |
| Waveguide Size | EIA WR187 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 10W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FDP48 |
| Net Weight | 0.235 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Control
Maintains a maximum VSWR of 1.05 for highly efficient signal absorption and minimal reflection.
Maintains a maximum VSWR of 1.05 for highly efficient signal absorption and minimal reflection.
S/C-Band Frequency Range
Fully optimized for the 3.95 GHz to 5.85 GHz range, covering critical multi-band applications.
Fully optimized for the 3.95 GHz to 5.85 GHz range, covering critical multi-band applications.
Precision FDP48 Flange
Equipped with a square FDP48 flange for standardized and secure system integration.
Equipped with a square FDP48 flange for standardized and secure system integration.
Lightweight Design
At only 0.235 kg, it is one of the most compact and portable terminations in its class.
At only 0.235 kg, it is one of the most compact and portable terminations in its class.
Versatile Power Handling
Reliably supports continuous wave (CW) power levels from 10W to 50W.
Reliably supports continuous wave (CW) power levels from 10W to 50W.
Taiwan Quality Engineering
Manufactured to precise tolerances for consistent performance in laboratory and industrial use.
