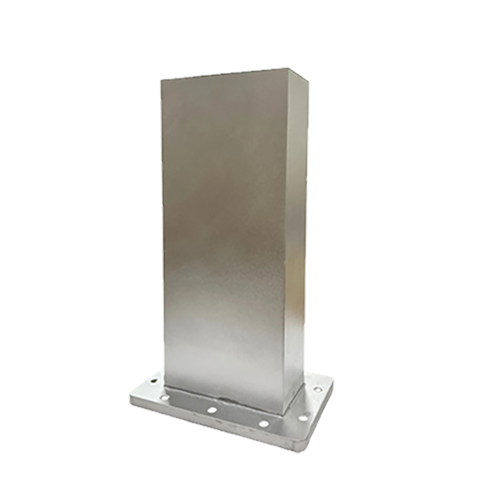

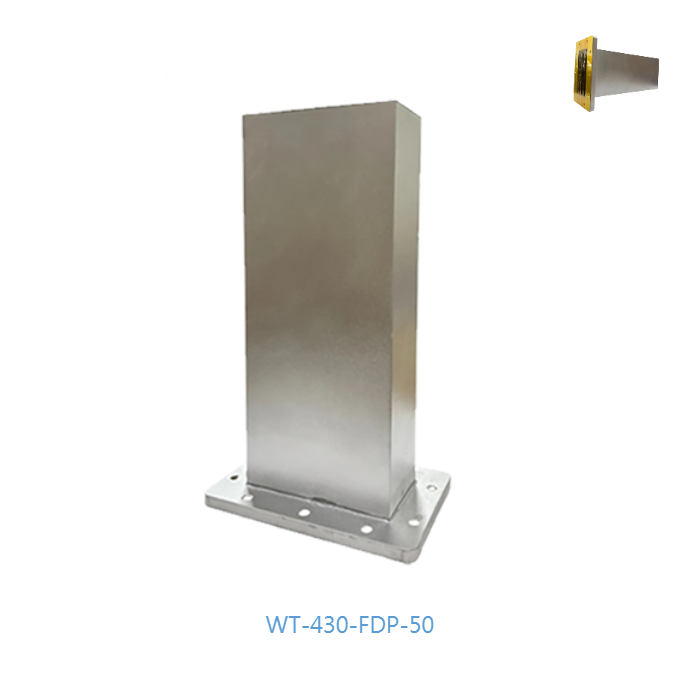

WT-430-FDP-50 Waveguide Termination
S-Band Low Power Waveguide Load (WR430)
The WT-430-FDP-50 is a high-precision low power waveguide termination engineered for S-band system-level applications. Operating within the 1.70 GHz to 2.60 GHz frequency range, it provides an exceptional low VSWR termination, making it ideal for test bench configurations and general-purpose dummy load requirements for moderate power levels up to 50W.
Technical Specifications
Electrical Specifications
[Image of WR430 waveguide termination flange pattern]| Frequency Range | 1.70 - 2.60 GHz |
| Waveguide Band | S-Band |
| Waveguide Size | EIA WR430 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 15W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FDP22 |
| Net Weight | 1.235 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Precision Signal Termination
Maximum VSWR of 1.05 ensures minimal signal reflection for sensitive S-band measurements.
Maximum VSWR of 1.05 ensures minimal signal reflection for sensitive S-band measurements.
Optimized for S-Band
Tailored specifically for the 1.70 GHz to 2.60 GHz frequency range.
Tailored specifically for the 1.70 GHz to 2.60 GHz frequency range.
Durable WR430 Interface
Standard rectangular waveguide size ensures full compatibility with S-band hardware.
Standard rectangular waveguide size ensures full compatibility with S-band hardware.
Standard FDP22 Flange
Square flange design for reliable and standardized mechanical interconnection.
Square flange design for reliable and standardized mechanical interconnection.
High Stability Load
Maintains electrical integrity across the 15W to 50W CW power range.
Maintains electrical integrity across the 15W to 50W CW power range.
Rigorous Quality
Precision-manufactured in Taiwan for industrial and laboratory environments.
Precision-manufactured in Taiwan for industrial and laboratory environments.
