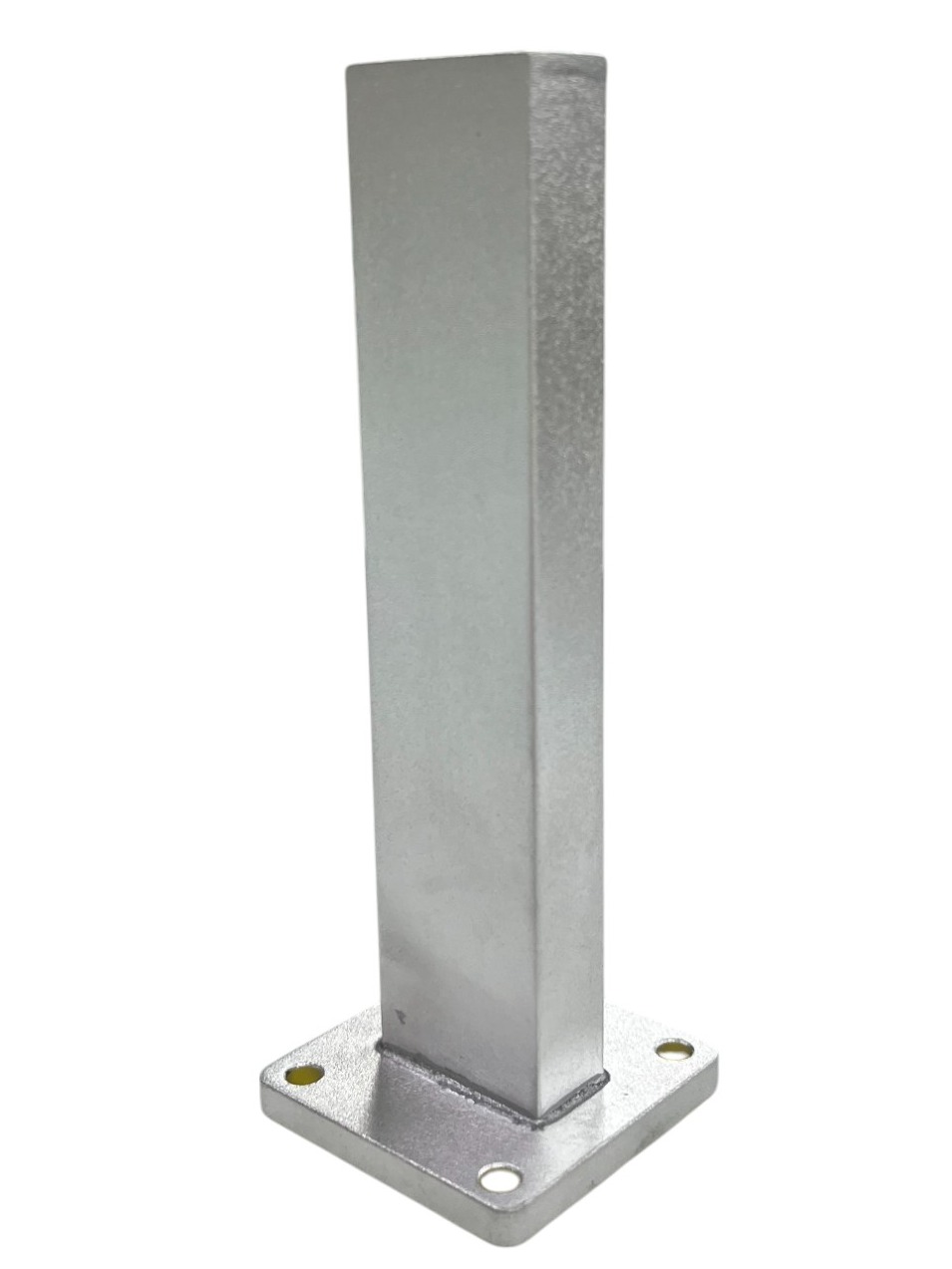

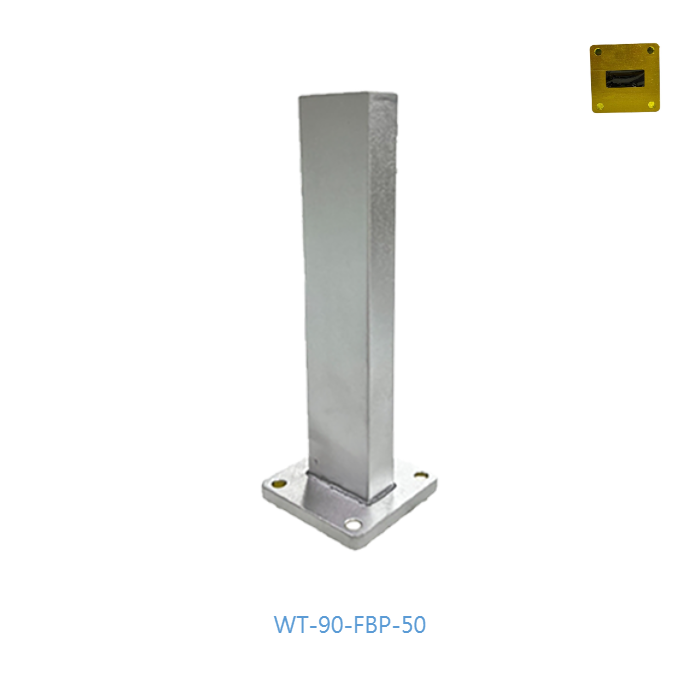

WT-90-FBP-50 Waveguide Termination
X/Ku-Band Low Power Waveguide Load (WR90) | FBP100 Square Flange | 8.20 - 12.4 GHz
The WT-90-FBP-50 is a high-precision low power waveguide termination professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) specifically optimized for X and Ku-band systems. Operating flawlessly within the 8.20 GHz to 12.4 GHz frequency spectrum, it provides an exceptional low VSWR performance profile of 1.05 or less. This model is primarily designed for general-purpose low reflection terminations in system-level applications, serving as an indispensable tool for test bench configurations and as a dummy load for continuous power levels up to 50W. Precision machined in Taiwan, it features a standardized FBP100 square flange interface to guarantee absolute mechanical mating alignment and minimum RF leakage.
Electrical Specification
| Frequency Range (GHz) | 8.20 - 12.4 GHz |
| VSWR, Max | 1.05 : 1 |
| Waveguide Size EIA WR | WR90 (WG16 / R100) |
| Waveguide Band | X, Ku-Band |
| Waveguide Type | Rectangular |
| WG Load Type | Low Power |
| Power Handling, CW, (W) | 5 - 50 Watts |
Mechanical & Interface Specifications
| Flange Style | Square Outline (41.4 x 41.4 mm) |
| Flange Designation | FBP100 Layout (4-Hole / 4.17 mm Thread layout spacing with +0.10/+0.07 mm tolerance on a 30.99 x 32.51 mm Grid) |
| Flange Corner Profile | 4-R3 Rounded Chamfers |
| Aperture Internal Dimension | 22.86 x 10.16 mm (with 0.046 mm tolerance) |
| Net Weight | 0.075 kg (75 g Industrial Grade Assembly) |
| Manufacturing Origin | Made in Taiwan (FT-RF) |
| Design Standard / Application | Precision Engineered / Laboratory Test Bench or System Dummy Load |
Low VSWR Absorption
Maximum VSWR of 1.05 ensures highly efficient signal termination and minimal back-reflection for high-frequency measurements.
Optimized X/Ku-Band Design
Specifically engineered for the 8.20 GHz to 12.4 GHz range, providing reliable performance for WR90 waveguide systems.
Compact & Lightweight Integration
Weighing only 0.075 kg, this termination is ideal for space-constrained laboratory test benches and system-level dummy loads.
Standardized FBP100 Interface
Features a square FBP100 flange with a robust 4-hole layout design for secure mechanical connection and high power stability up to 50W CW.
Email Contact
For custom flange configurations, higher power ratings, or specific material requirements, contact our engineering team.
