Description & Specification

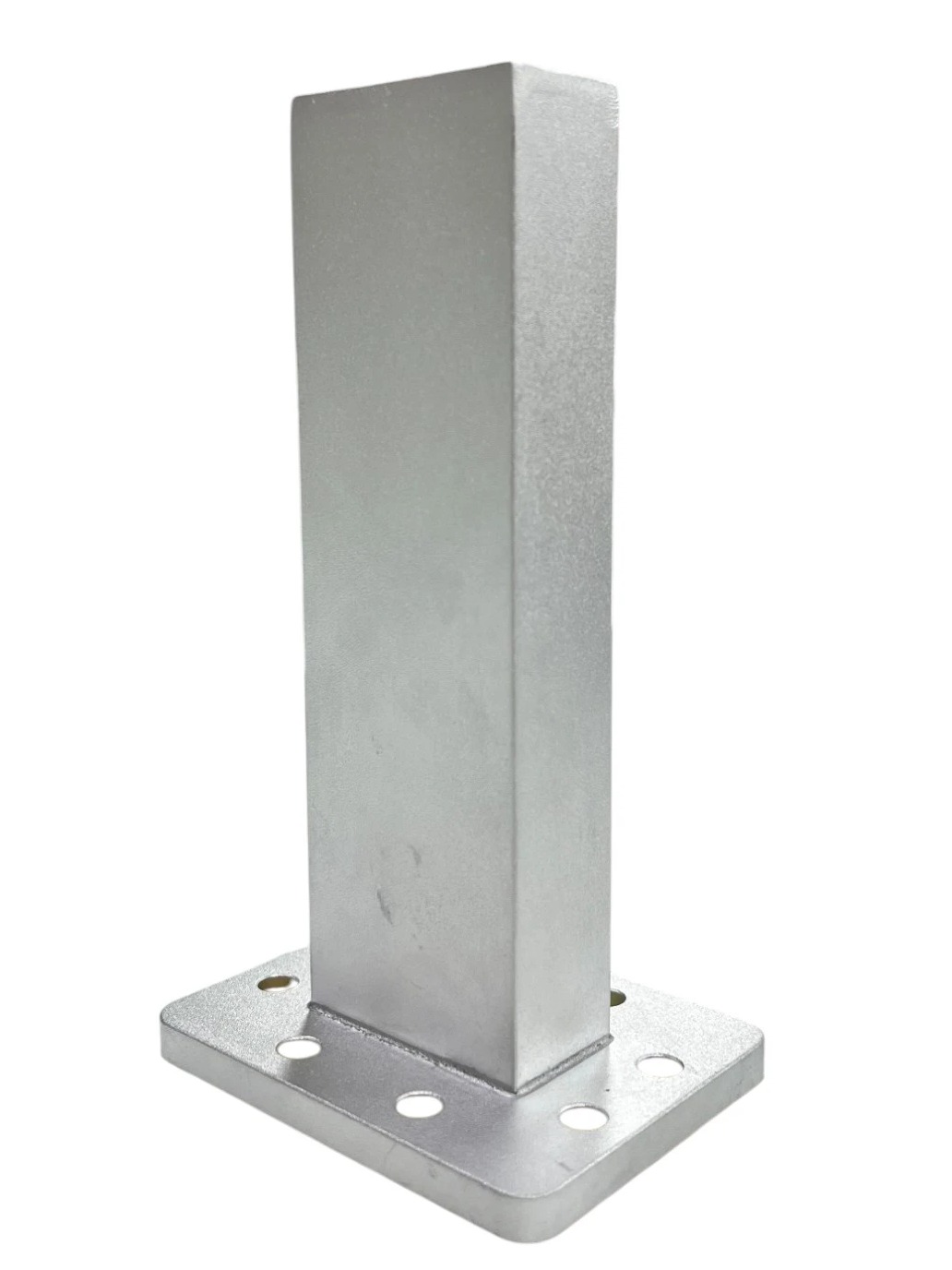

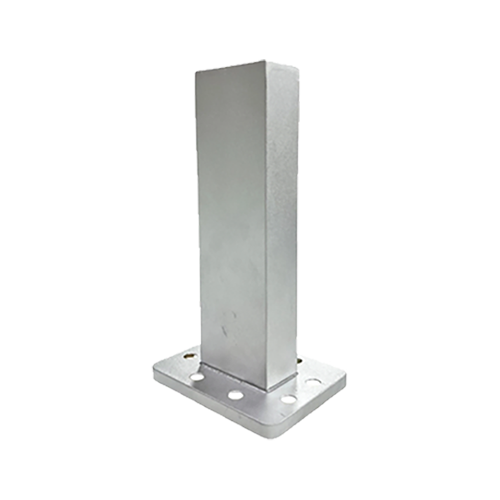

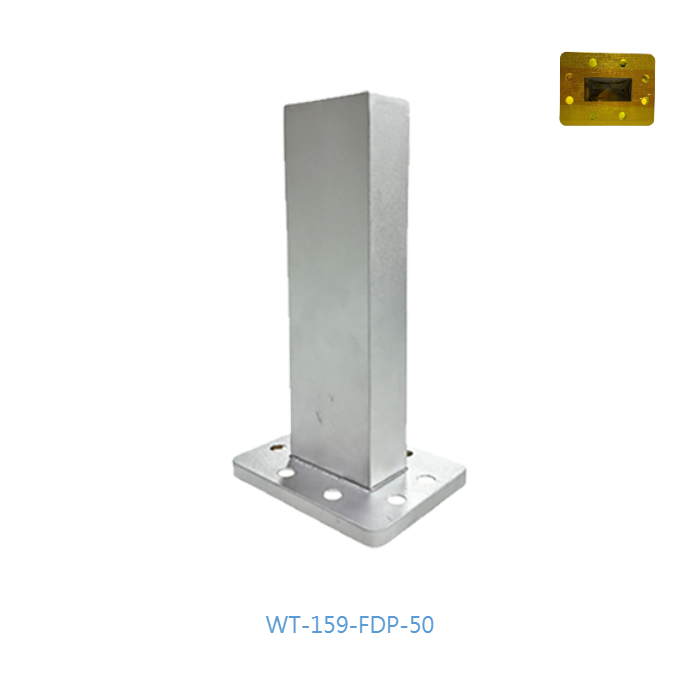

WT-159-FDP-50 Waveguide Termination
C-Band Low Power Waveguide Load (WR159)
The WT-159-FDP-50 is a high-precision low power waveguide termination specifically optimized for C-band applications. Operating within the 4.90 GHz to 7.05 GHz range, it delivers exceptional low VSWR performance (≤ 1.05). This component is an ideal solution for laboratory test bench configurations and system-level dummy loads with power handling requirements up to 50W.
Technical Specifications
Electrical Specifications
[Image of WR159 waveguide dimensions and FDP58 square flange pattern]| Frequency Range | 4.90 - 7.05 GHz |
| Waveguide Band | C-Band |
| Waveguide Size | EIA WR159 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 10W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FDP58 |
| Net Weight | 0.21 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maximum VSWR of 1.05 ensures precise signal termination with minimal reflection.
Maximum VSWR of 1.05 ensures precise signal termination with minimal reflection.
Dedicated C-Band Design
Fully optimized for the 4.90 GHz to 7.05 GHz frequency range.
Fully optimized for the 4.90 GHz to 7.05 GHz frequency range.
Compact and Lightweight
At just 0.21 kg, it is designed for space-sensitive system-level integrations.
At just 0.21 kg, it is designed for space-sensitive system-level integrations.
Standard FDP58 Flange
Equipped with a square FDP58 flange for secure and standardized mechanical connection.
Equipped with a square FDP58 flange for secure and standardized mechanical connection.
High Power Stability
Handles CW power levels from 10W up to 50W with consistent electrical integrity.
Handles CW power levels from 10W up to 50W with consistent electrical integrity.
Taiwan Precision Quality
Precision-engineered to meet stringent industrial and laboratory requirements.
Precision-engineered to meet stringent industrial and laboratory requirements.
