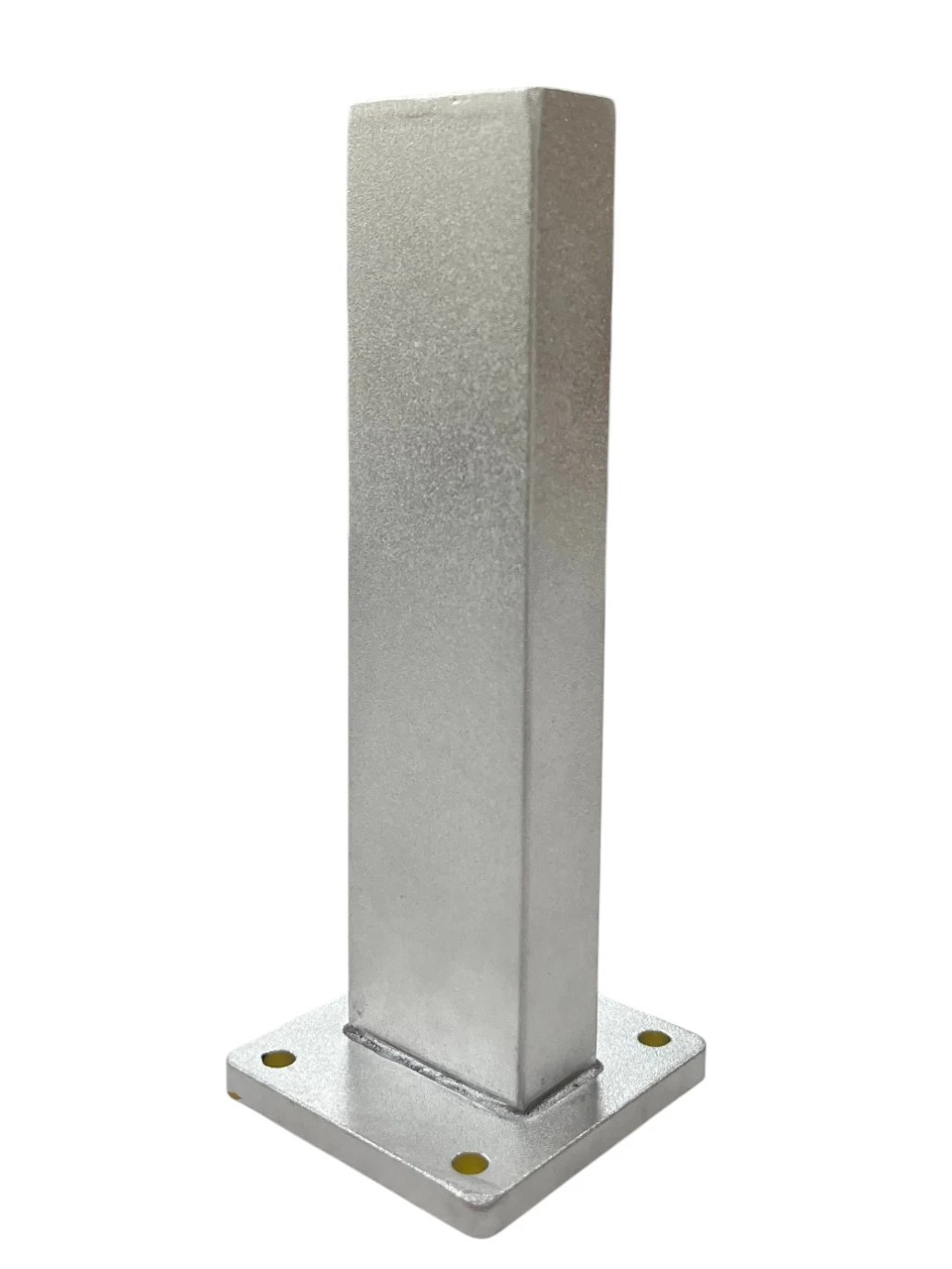

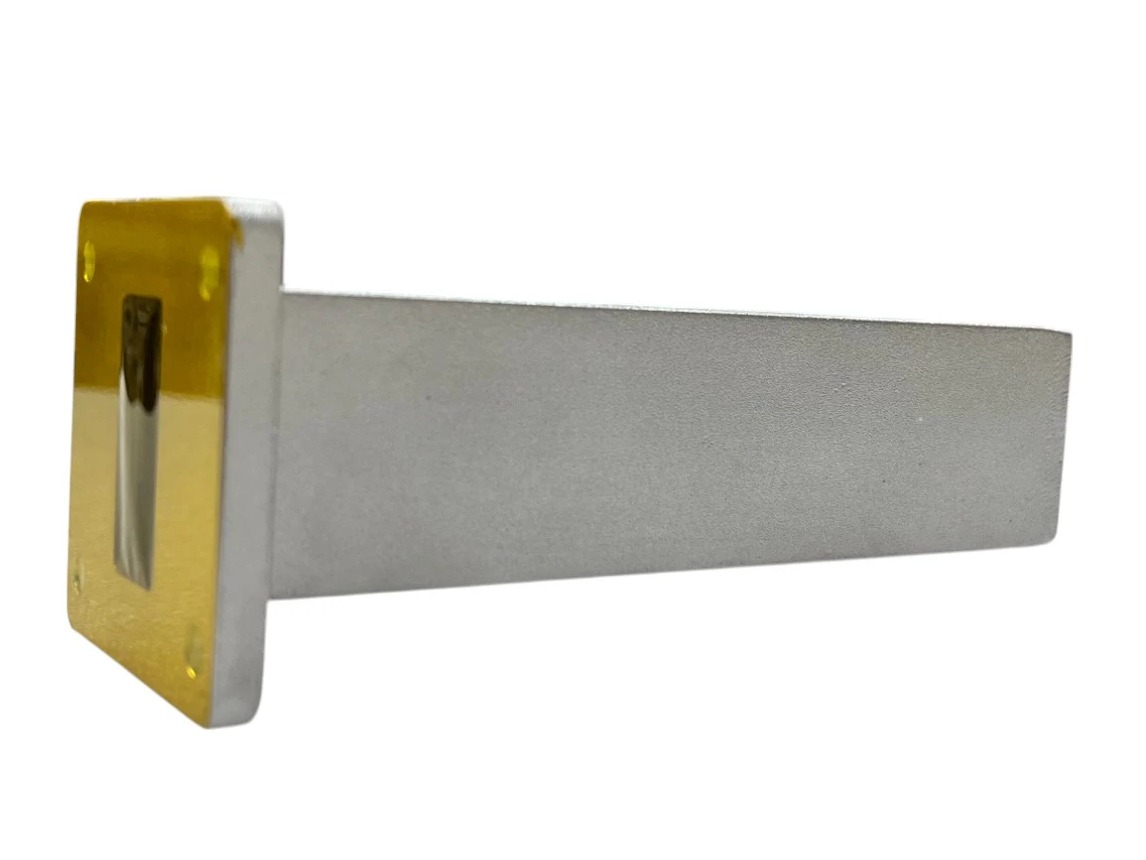

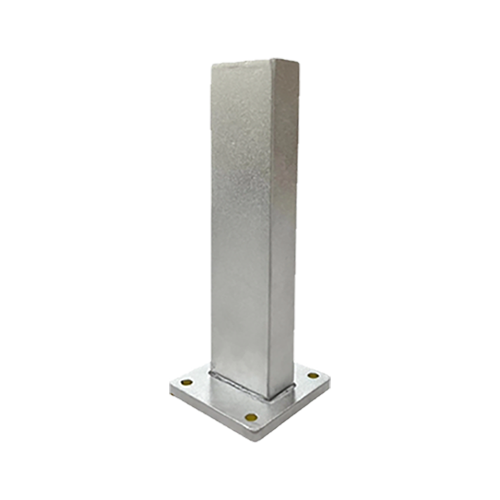

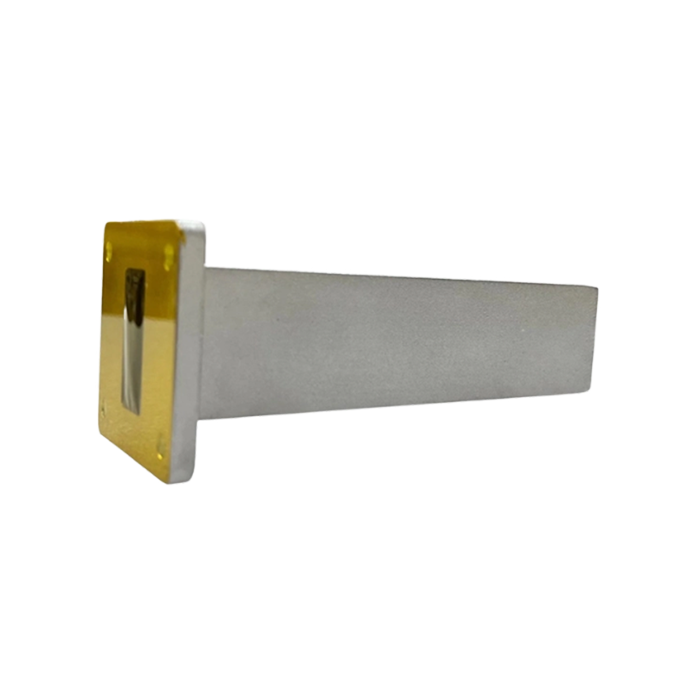

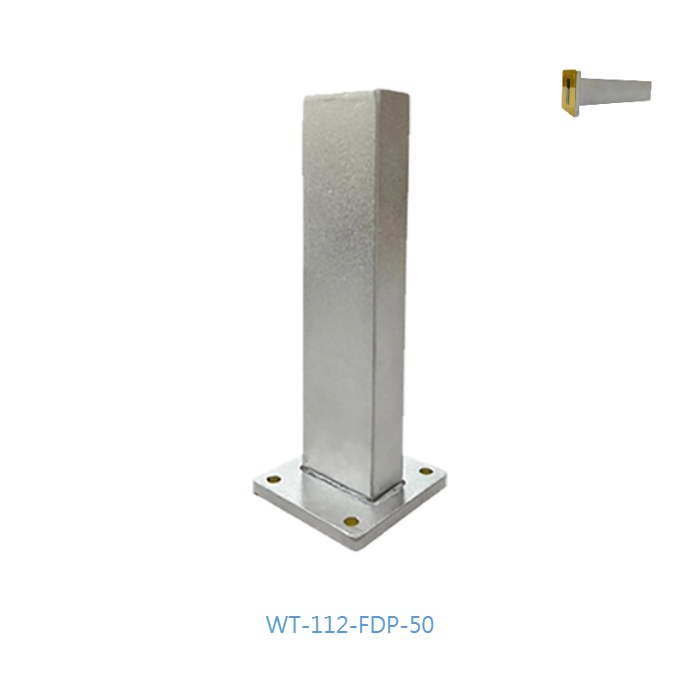

WT-112-FDP-50 Waveguide Termination
C/X-Band Low Power Waveguide Load (WR112)
The WT-112-FDP-50 is a high-precision low power waveguide termination engineered for C and X-band operations. Covering a frequency range from 7.05 GHz to 10.0 GHz, it provides an exceptional low VSWR performance (≤ 1.05). This model is designed for versatile system-level applications, serving as a reliable dummy load for test bench configurations with power handling up to 50W.
Technical Specifications
Electrical Specifications
| Frequency Range | 7.05 - 10.0 GHz |
| Waveguide Band | C, X-Band |
| Waveguide Size | EIA WR112 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 5W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FDP84 |
| Net Weight | 0.11 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maintains a maximum VSWR of 1.05 for highly accurate signal absorption and minimal reflection loss.
Maintains a maximum VSWR of 1.05 for highly accurate signal absorption and minimal reflection loss.
Multi-Band Optimization
Specially designed for the 7.05 GHz to 10.0 GHz range, bridging C and X-band requirements.
Specially designed for the 7.05 GHz to 10.0 GHz range, bridging C and X-band requirements.
Ultra-Compact and Lightweight
At just 0.11 kg, it is optimized for space-sensitive configurations and portable test sets.
At just 0.11 kg, it is optimized for space-sensitive configurations and portable test sets.
Standard FDP84 Flange
Equipped with a square FDP84 flange for secure and standardized mechanical integration.
Equipped with a square FDP84 flange for secure and standardized mechanical integration.
50W CW Power Capacity
Reliably manages continuous wave power levels from 5W up to 50W with excellent stability.
Reliably manages continuous wave power levels from 5W up to 50W with excellent stability.
Taiwan Quality Engineering
Precision-manufactured in Taiwan to meet stringent industrial and laboratory tolerances.
Precision-manufactured in Taiwan to meet stringent industrial and laboratory tolerances.
Contact Us
For quotes or technical support regarding the WT-112-FDP-50, please contact us:
