Description & Specification

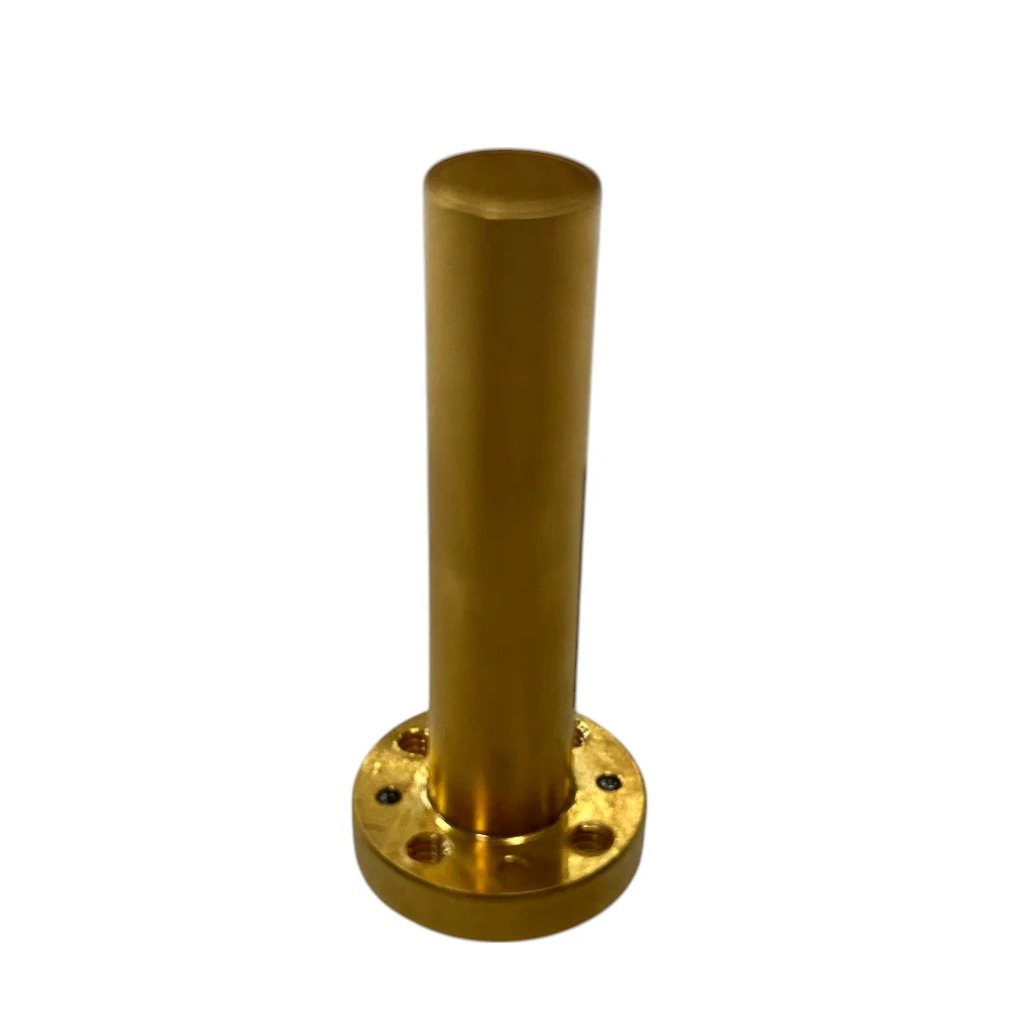

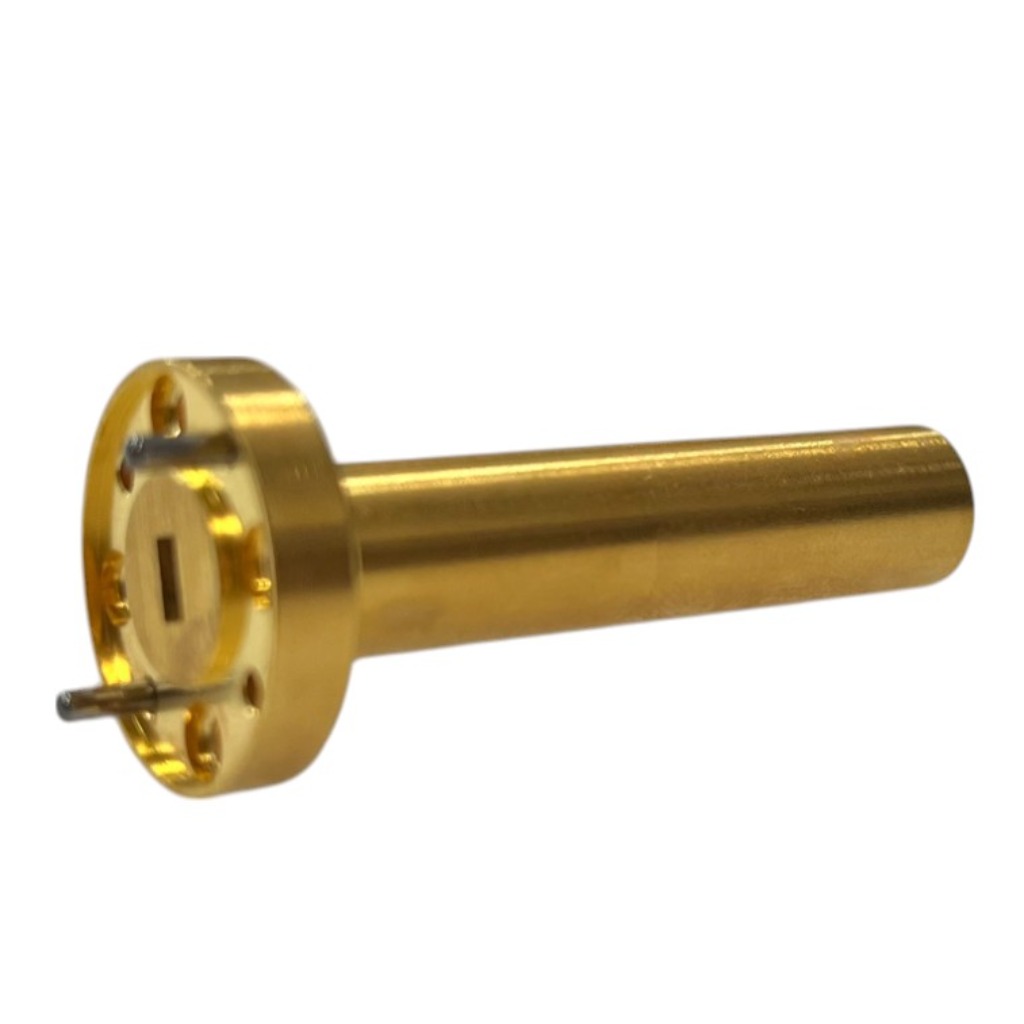

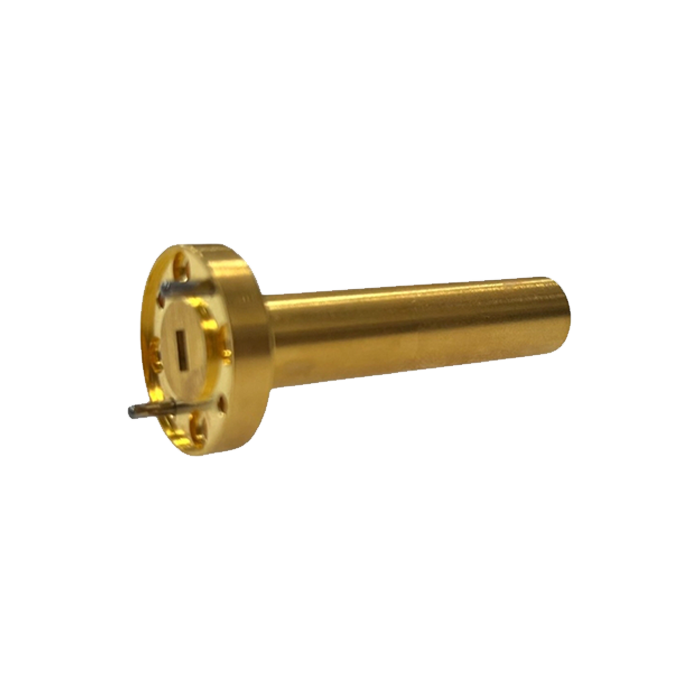

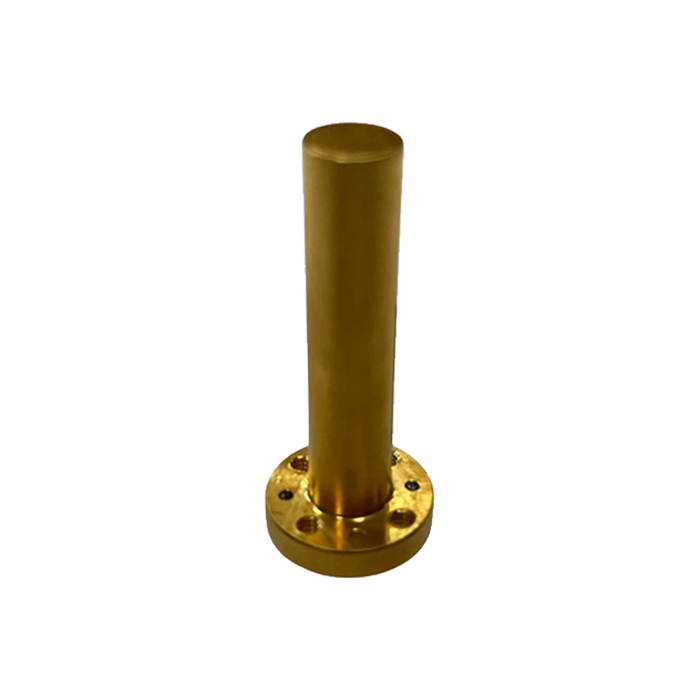

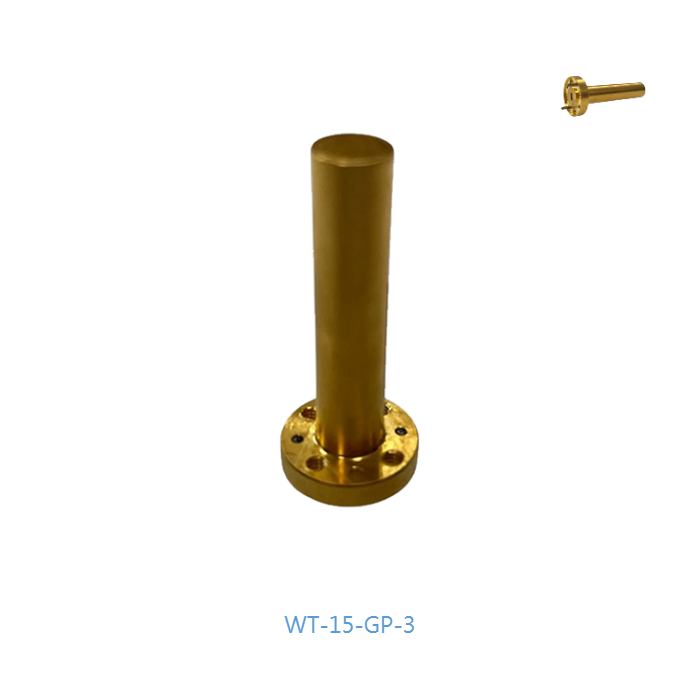

WT-15-GP-3 Waveguide Termination
V-Band Low Power Waveguide Load (WR15)
The WT-15-GP-3 is a precision-engineered low power waveguide termination designed for V-band applications. Operating within the high-frequency millimeter-wave range of 50.0 GHz to 75.0 GHz, it delivers stable low VSWR performance (≤ 1.10). This model features a Round FUGP620 Flange, making it an ideal choice for system-level integrations, test bench configurations, and general-purpose dummy load applications.
Technical Specifications
Electrical Specifications
[Image of WR15 waveguide dimensions and V-band rectangular profile]| Frequency Range | 50.0 - 75.0 GHz |
| Waveguide Band | V-Band |
| Waveguide Size | EIA WR15 |
| VSWR (Max) | 1.10 : 1 |
| Power Handling (CW) | 0.25W - 3W |
| Power Handling (Peak) | 0.1 KW |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
[Image of FUGP620 round flange bolt hole pattern and alignment features]| Flange Style | Round |
| Flange Designation | FUGP620 |
| Net Weight | 0.03 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Precision VSWR Performance
Ensures a maximum VSWR of 1.10 for highly accurate signal termination with minimal reflection in the V-band.
Ensures a maximum VSWR of 1.10 for highly accurate signal termination with minimal reflection in the V-band.
Optimized V-Band Coverage
Tailored for 50.0 GHz to 75.0 GHz, supporting high-speed wireless backhaul and 5G/6G research.
Tailored for 50.0 GHz to 75.0 GHz, supporting high-speed wireless backhaul and 5G/6G research.
Ultra-Lightweight Design
Compact WR15 construction weighing only 0.03 kg, perfect for precision-balanced test setups.
Compact WR15 construction weighing only 0.03 kg, perfect for precision-balanced test setups.
FUGP620 Round Flange
Standard round flange interface provides secure, high-integrity mechanical and electrical connection.
Standard round flange interface provides secure, high-integrity mechanical and electrical connection.
Stable Power Handling
Reliably manages continuous wave (CW) power up to 3W, suitable for sensitive laboratory environments.
Reliably manages continuous wave (CW) power up to 3W, suitable for sensitive laboratory environments.
Taiwan Engineering Precision
Manufactured to stringent industrial tolerances in Taiwan to ensure consistent, reliable RF performance.
Manufactured to stringent industrial tolerances in Taiwan to ensure consistent, reliable RF performance.
Contact Us
For quotes or technical support regarding the WT-15-GP-3, please contact us:
