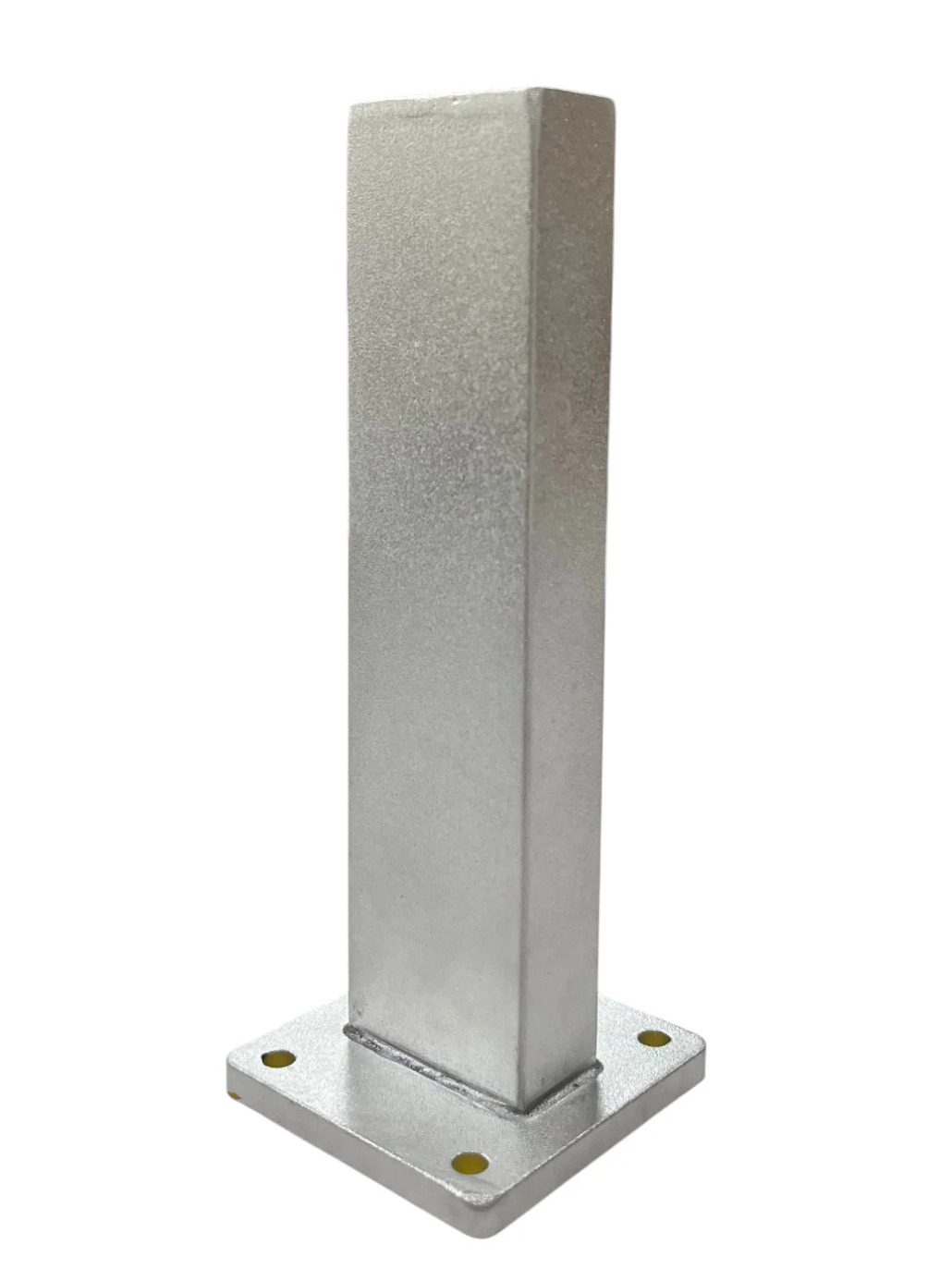

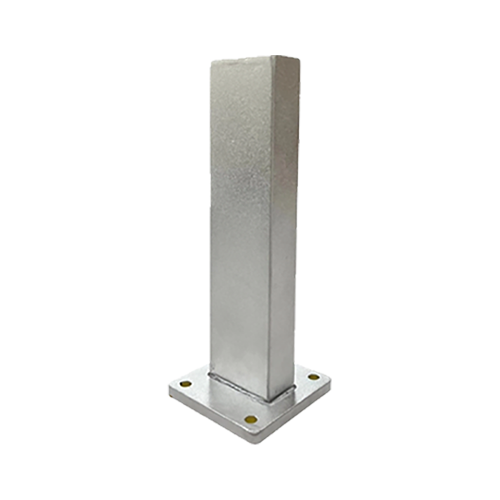

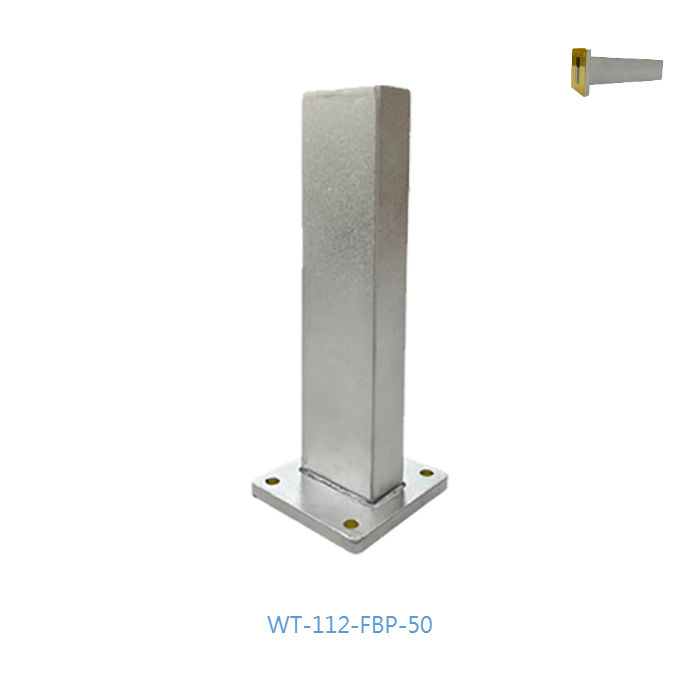

WT-112-FBP-50 Waveguide Termination
C/X-Band Low Power Waveguide Load (WR112)
The WT-112-FBP-50 is a high-precision low power waveguide termination engineered for C and X-band operations. Operating between 7.05 GHz and 10.0 GHz, it provides exceptional low VSWR performance (≤ 1.05). This model features a Square FBP84 Flange and is an ideal dummy load for system-level integrations and laboratory test bench configurations requiring power handling up to 50W.
Technical Specifications
Electrical Specifications
| Frequency Range | 7.05 - 10.0 GHz |
| Waveguide Band | C, X-Band |
| Waveguide Size | EIA WR112 |
| VSWR (Max) | 1.05 : 1 |
| Power Handling (CW) | 5W - 50W |
| Waveguide Load Type | Low Power |
| Waveguide Type | Rectangular |
Mechanical & Interface Specifications
| Flange Style | Square |
| Flange Designation | FBP84 |
| Net Weight | 0.115 kg |
| Design & Manufacturing | Made in Taiwan |
Key Features
Superior VSWR Performance
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal back-reflection.
Maximum VSWR of 1.05 ensures highly accurate signal absorption and minimal back-reflection.
C/X-Band Multi-Band Coverage
Tailored for the 7.05 GHz to 10.0 GHz frequency range, suitable for diverse radar and comms applications.
Tailored for the 7.05 GHz to 10.0 GHz frequency range, suitable for diverse radar and comms applications.
FBP84 Square Flange
Standard square flange interface for secure, high-integrity mechanical integration.
Standard square flange interface for secure, high-integrity mechanical integration.
50W CW Power Handling
Engineered to reliably manage continuous wave power levels from 5W up to 50W.
Engineered to reliably manage continuous wave power levels from 5W up to 50W.
Compact and Lightweight
Precision WR112 construction at only 0.115 kg, ideal for space-constrained environments.
Precision WR112 construction at only 0.115 kg, ideal for space-constrained environments.
Taiwan Engineering Precision
Precision-manufactured in Taiwan to meet stringent industrial and laboratory tolerances.
Precision-manufactured in Taiwan to meet stringent industrial and laboratory tolerances.
Contact Us
For quotes or technical support regarding the WT-112-FBP-50, please contact us:
Email: info-tw@ft168.com.twNew Products
