Description & Specification

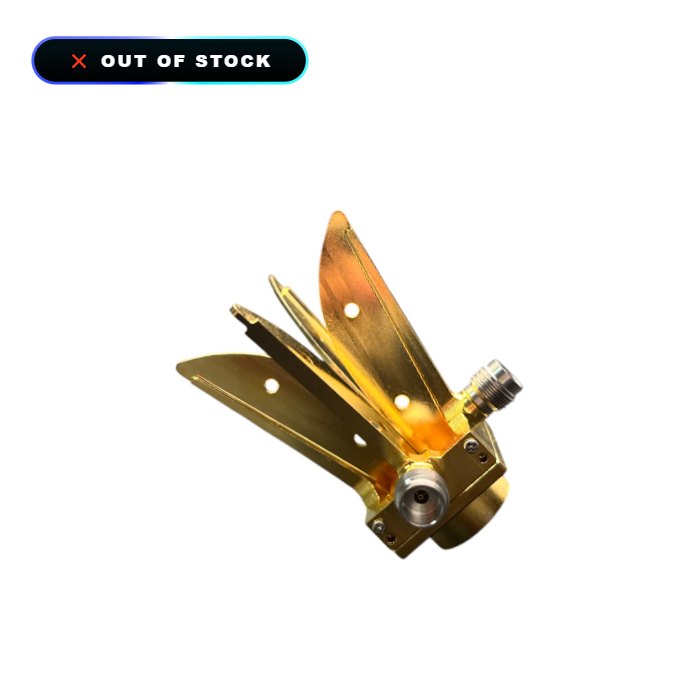

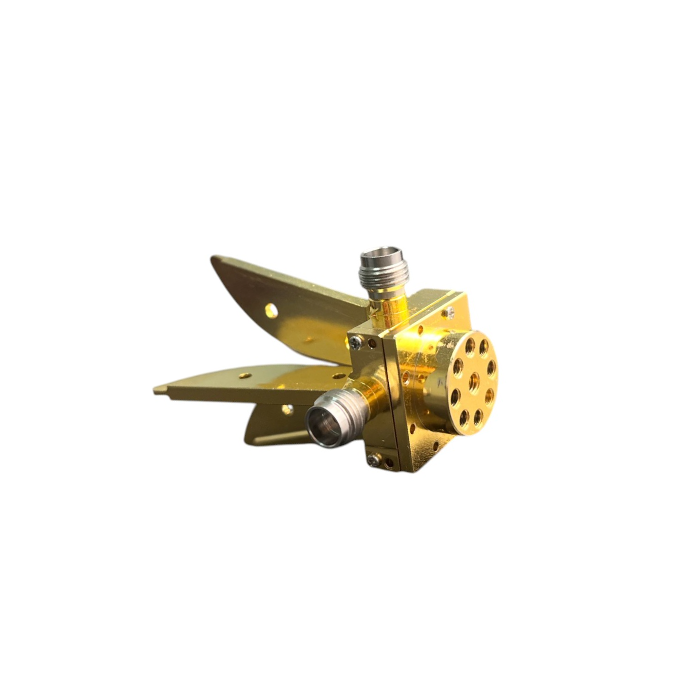

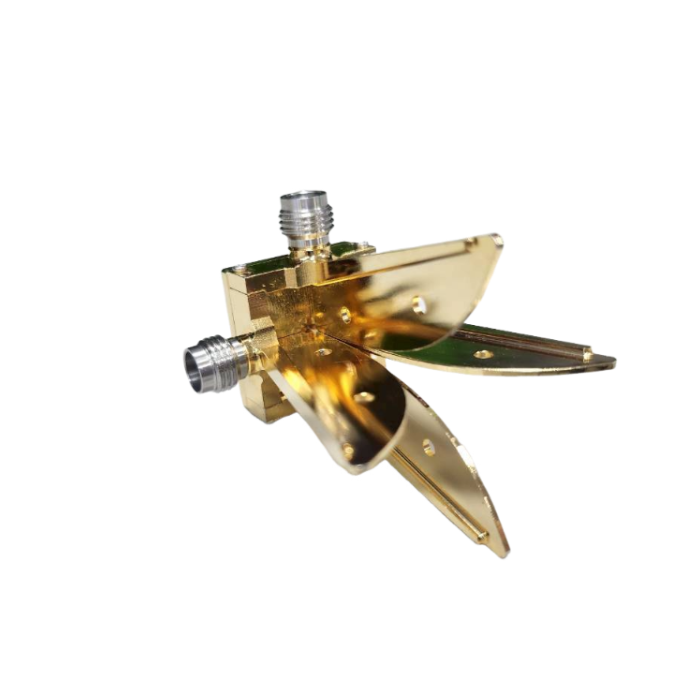

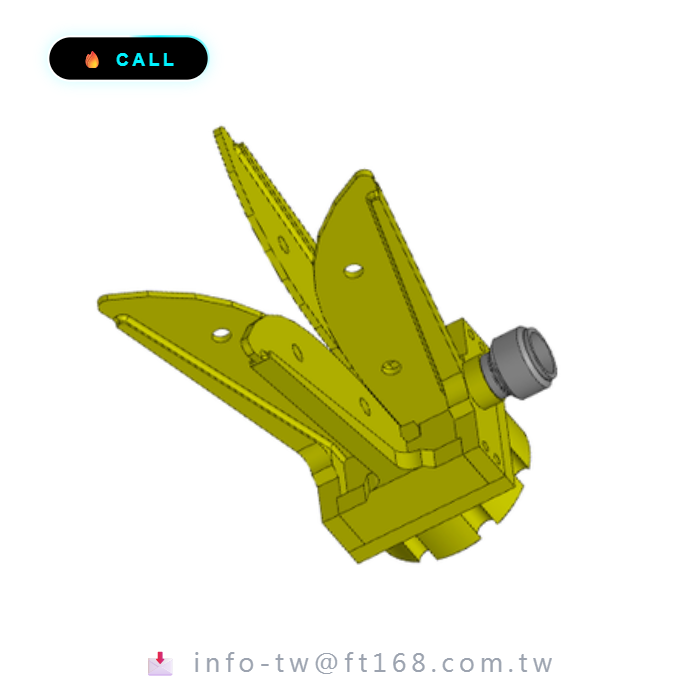

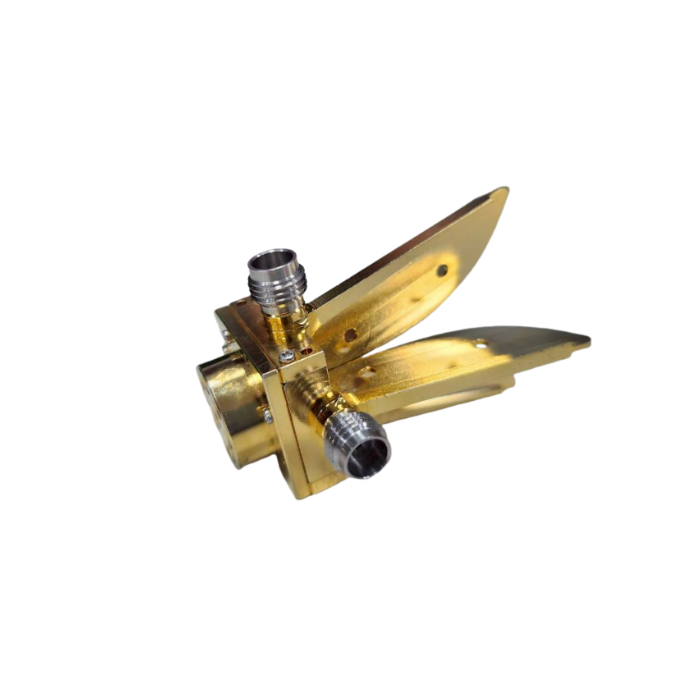

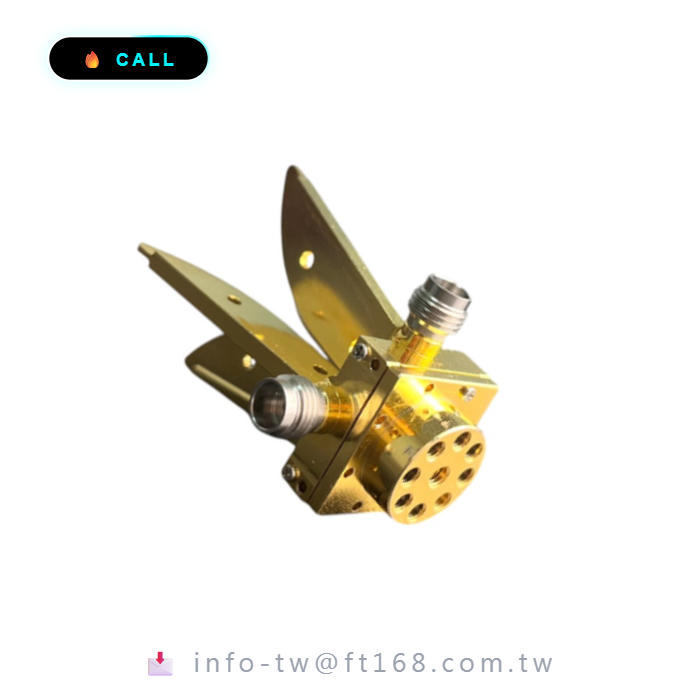

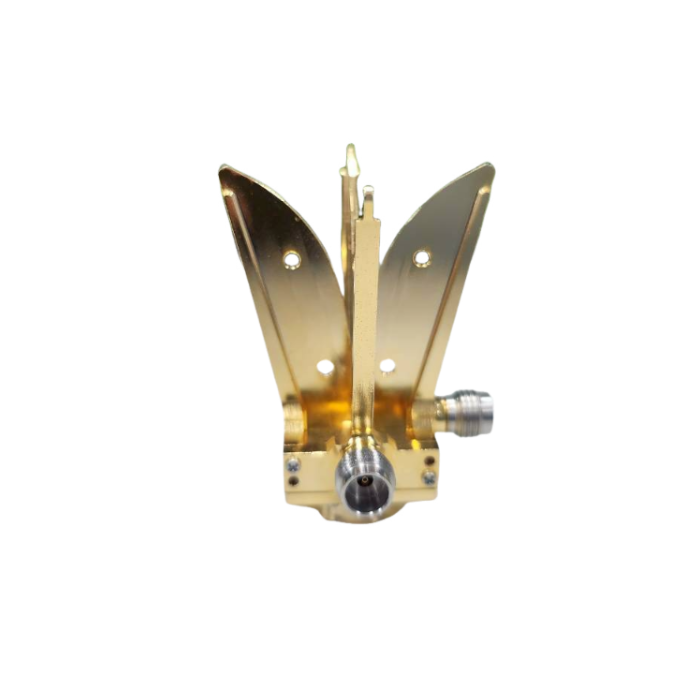

5 to 70 GHz Dual polarization Open Boundary Quad-Ridged Horn Antenna / V-Female
Dual Polarization | Open Boundary Quad-Ridged | Model: HR-0570GE-VF
The HR-0570GE-VF is a high-performance Open Boundary Quad-Ridged Horn Antenna operating from 5 GHz to 70 GHz. Featuring dual polarization and a V-Female connector, this antenna is designed for wideband applications requiring precise radiation patterns and high-frequency stability. Its open boundary design ensures minimal interference and optimal performance across its extensive frequency range, making it suitable for advanced RF testing and measurement.
Technical Specifications
Electrical RF Performance
| Frequency Range | 5 GHz to 70 GHz |
| V.S.W.R (MAX) | Consult Factory |
| Antenna Factor / Gain | Consult Factory |
| Weight | 44.28 g |
| Polarization | Dual Polarization |
| Beamwidth (-3dB) | Consult Factory |
| Power Handling | Consult Factory |
| Impedance | 50 Ohm |
Mechanical & Construction

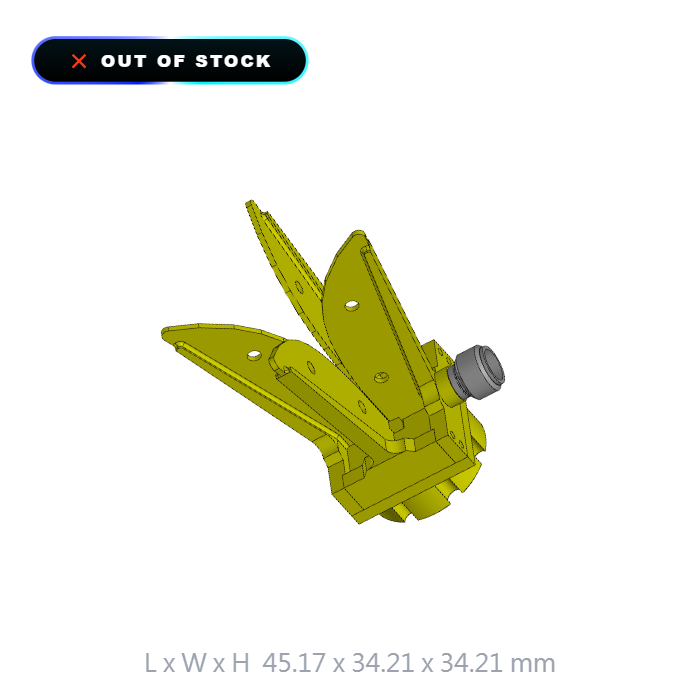

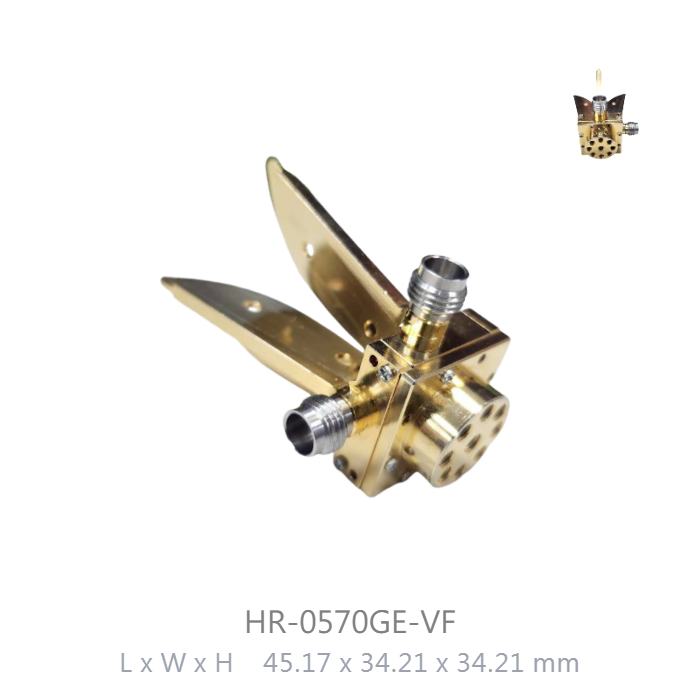

| Dimensions (L x W x H) | 45.17 x 34.21 x 34.21 mm |
| Connector Style | V-Female |
| Body Material | High-Grade Metal |
| Mounting Options | M2.50x0.45 / M3.00x0.5 |
| Compliance | RoHS Compliant |
Key Reference Features
Ultra-Wideband Coverage
Operates across a broad 5 GHz to 70 GHz spectrum, supporting diverse high-frequency testing needs.
Dual Polarization Support
Enables simultaneous measurement of orthogonal polarizations for improved data collection efficiency.
Precision Engineering
Designed with an open boundary quad-ridged structure to provide stable gain and low VSWR across the band.
Compact Form Factor
Lightweight 44.28g design with integrated mounting holes for easy installation in test chambers.
