30 MHz to 7 GHz Broadband Log-Periodic Antennas (LO-30M06GA1-NF)
Fei Teng Wireless - Horn Antenna Specialist
10 out of
10
-
Description & Specification
30 MHz to 7 GHz Double Ridged Broadband Waveguide Horn Antenna
Broadband Precision | 3 - 11 dBi Gain | Model: LO-30M06GA1-NF
The LO-30M06GA1-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the continuous 30 MHz to 7 GHz frequency spectrum, it delivers directional gain profiling from 3 - 11 dBi and typical average VSWR of 2.0:1 avg. Built with durable 6061 aluminum alloy and fitted with a high-precision N-Female connector, this antenna supports high power handling up to 250W CW / 500W Peak and features integrated DC Short lightning protection. It serves as an essential measurement standard for EMC/EMI laboratory compliance, microwave surveillance, and precision RF testing.
Technical Specifications
| Frequency Range | 30 MHz to 7 GHz |
| Antenna Type | Double Ridged Broadband Waveguide Horn Antenna |
| Nominal Gain | 3 - 11 dBi |
| VSWR | 2.0:1 avg |
| Power Handling | 250W CW / 500W Peak |
| Impedance | 50 Ω |
Mechanical & Physical Data

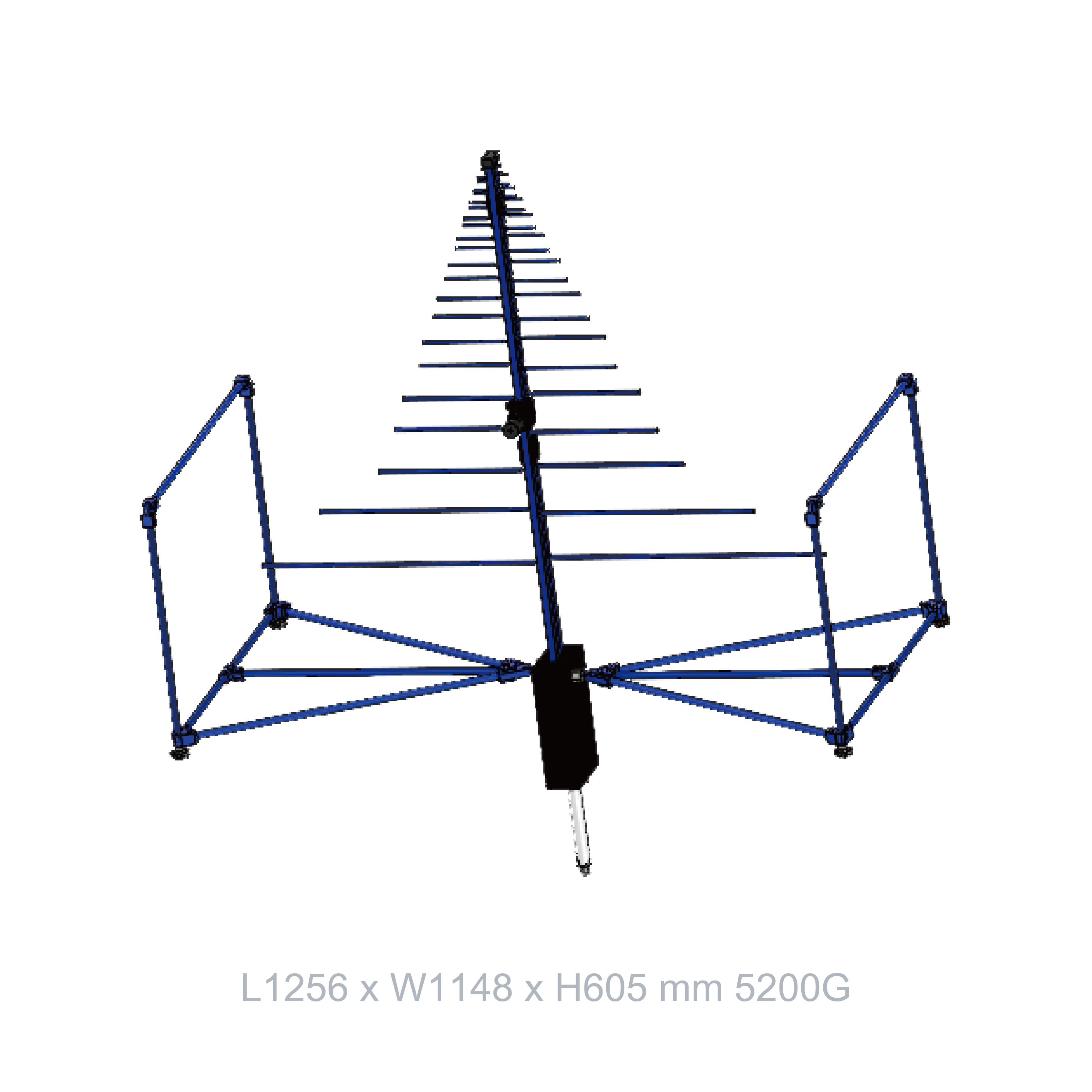

| Dimensions (L x W x H) | L1256 x W1148 x H605 mm |
| Weight | 5.2 kg |
| Connector | N-Female |
| Mounting Interface | M8 / M5 Thread / L Type Aluminum Bracket |
| Country of Origin | Taiwan (FT-RF Precision Engineering) |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Ultra-Broadband Coverage
Seamless coverage across 30 MHz to 7 GHz for multi-octave signal detection and chamber compliance.
High Power Rating
Supports robust 250W CW / 500W Peak power handling with built-in DC Short lightning protection.
Stainless Steel Connector
Fitted with a durable N-Female interface ensuring low insertion loss and high mechanical durability.
Taiwanese Precision
Precision CNC machined from 6061 aluminum alloy, compliant with RoHS, WEEE, CE, and FCC standards.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
