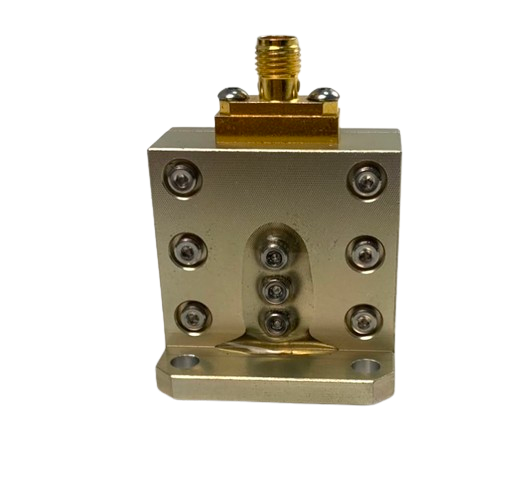

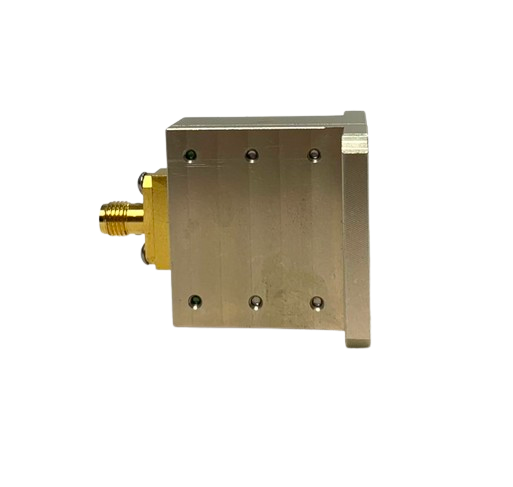

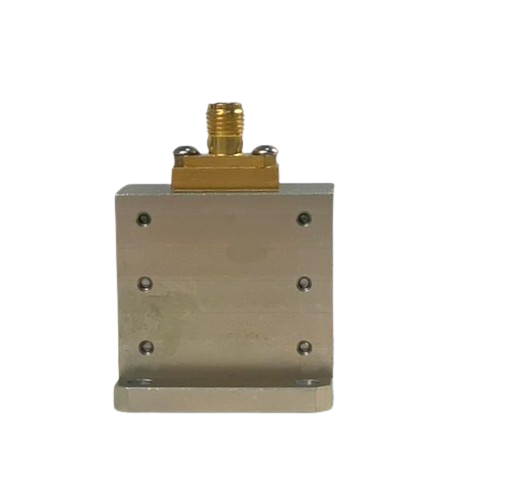

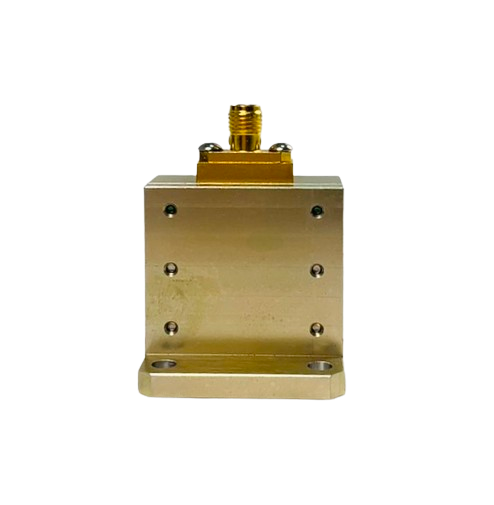

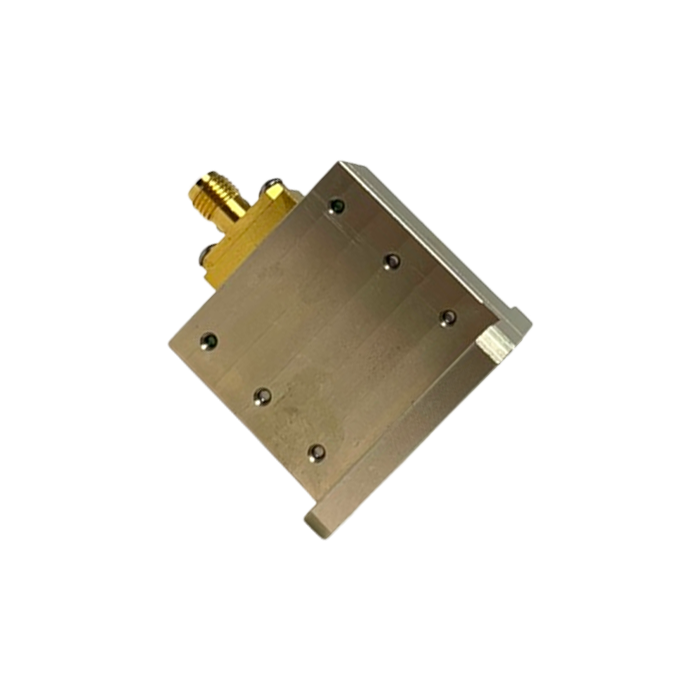

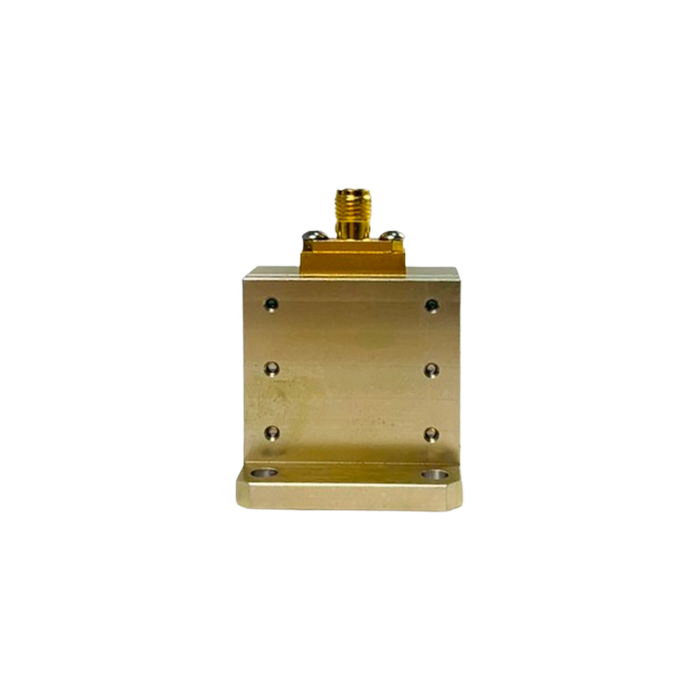

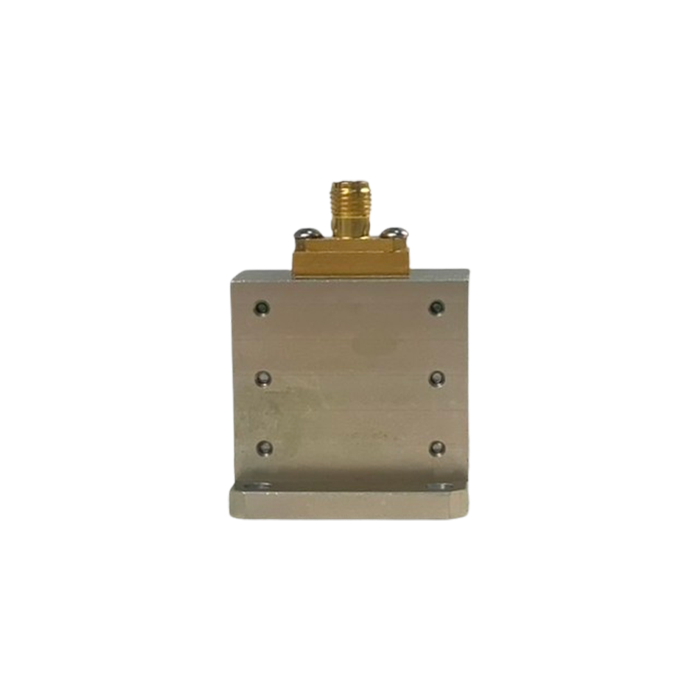

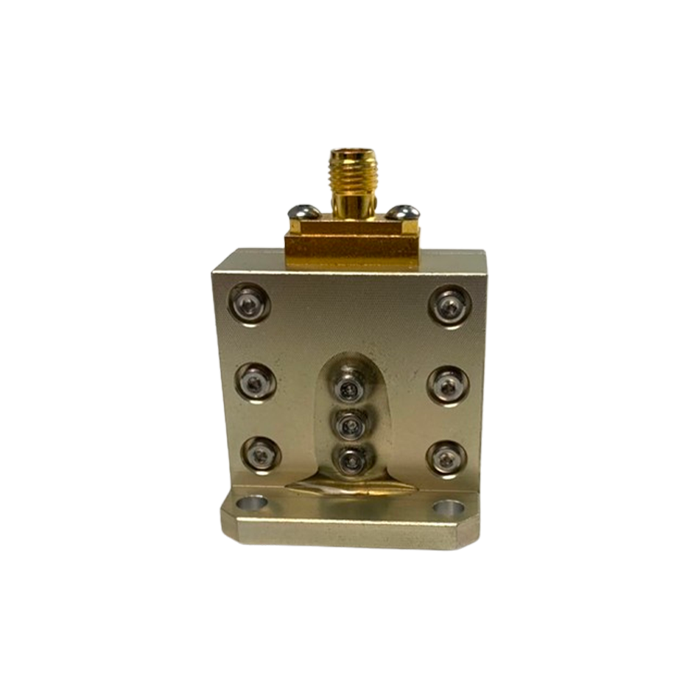

WR-62 Waveguide to Coaxial Adapter
Precision Ku-Band Transition | Standard UG-2664/U Flange Layout | 12.4 GHz – 18.0 GHz
The WC-62-UBR-EI-SF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-62 architectural standard. Operating continuously across the 12.4 GHz to 18.0 GHz Ku-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low nominal V.S.W.R profile of 1.25 : 1. Manufactured from high-grade 6061 aluminum alloy via advanced CNC machining in Taiwan, this ultra-lightweight 40 g adapter features a standardized square UG-2664/U flange interface mated to a precision coaxial SMA-Female connector port with a durable passivated stainless steel build, safely managing continuous wave power loads up to 300 Watts (CW). This specialized layout makes it the definitive choice for satellite communication systems, electronic intelligence surveillance, airborne tracking sub-systems, wireless testing chambers, and mission-critical Signal Defense infrastructure.
Electrical & RF Performance
| Frequency Range | 12.4 GHz to 18.0 GHz (Ku-Band Spectrum) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-62 (R140 / WG18 Layout) |
| Waveguide Flange Designation | UG-2664/U Style Standard Layout (Square Cover Pattern Layout) |
| Coaxial Connector Interface | SMA-Female Interface Premium Port Layout |

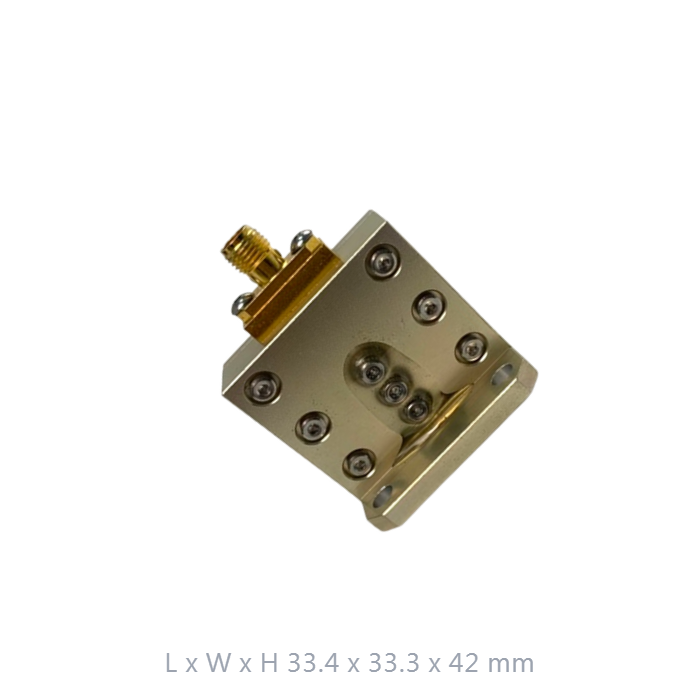

| Physical Dimensions (L x W x H) | 33.4 x 33.3 x 42 mm |
| Net Weight | 40 g (Ultra-Lightweight Micro Profile) |
| Body Material Profile | CNC-Machined 6061 Aluminum Alloy |
| Connector Interface Material | Premium Wear-Resistant Stainless Steel |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
CNC-Machined Aluminum Body
High-grade aluminum housing with advanced surface treatment ensures optimal conductivity and superior thermal dissipation for long-term Signal Management arrays.
Rugged Stainless Steel Interface
Equipped with a high-durability stainless steel SMA connector designed for high mating cycles and resistance to mechanical stress in demanding Signal Defense operations.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Broadband Signal Integrity
Expertly tuned internal waveguide cavity geometry eliminates path anomalies across the 12.4-18.0 GHz spectrum, delivering the stable electrical performance and low reflection required for precision satellite link testing.
Industrial Mission Reliability
Built to exceed aerospace and defense standards, providing reliable interconnectivity for high-power 300W CW applications and sensitive RF measurement sub-systems.
Inquire For Professional Quote
Contact our technical engineering team today to request custom flange drilling patterns, bulk order quotes, individual certified V.S.W.R charts, or technical support for large-scale Ku-band deployments.
