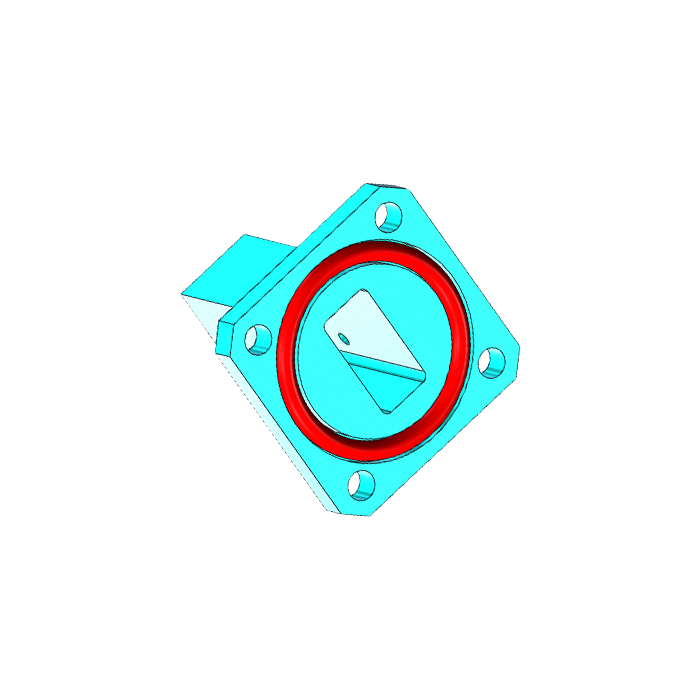

WR-62 Waveguide to Coaxial Adapter
Precision Ku-Band Transition | Standard UG-2664/U Flange | 12.4 GHz – 18.0 GHz
The WC-062-PBR-A1-SF is a laboratory-standard precision microwave Waveguide to Coaxial Adapter professionally engineered for high-efficiency signal transition between rectangular WR-62 waveguide networks and coaxial SMA interfaces. Optimized continuously across the 12.4 GHz to 18.0 GHz Ku-band spectrum, this premium component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low nominal V.S.W.R profile of 1.25 : 1. Constructed from premium-grade aluminum with a robust UG-2664/U (PBR Type) flange in Taiwan, this ultra-lightweight 20g adapter safely manages continuous wave power levels up to 250 Watts (CW), rendering it the definitive choice for professional radar architectures, satellite ground stations, and mission-critical Signal Defense field operations.
Electrical & RF Performance
| Frequency Range | 12.4 GHz to 18.0 GHz (Ku-Band) |
| V.S.W.R (Optimized Max) | 1.25 : 1 |
| Maximum Power Handling | 250 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction
| Waveguide Size Standard | WR-62 / EIA Standard (R140 / WG18) |
| Waveguide Flange Designation | UG-2664/U (PBR Type Flange with Groove) |
| Coaxial Connector Interface | SMA-Female (Premium Wear-Resistant Stainless Steel) |

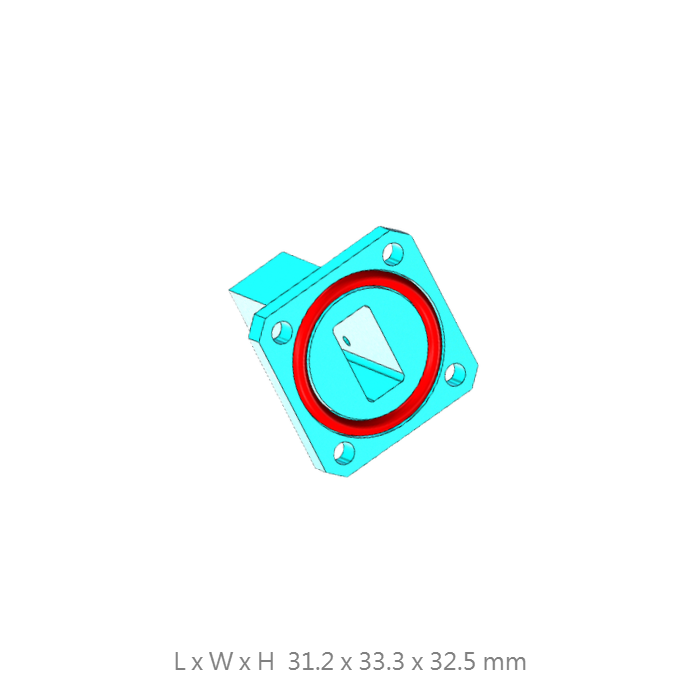

| Dimensions (W x H x L) | 31.2 x 33.3 x 32.5 mm |
| Net Weight | 20 g (Ultra-Lightweight Architecture) |
| Body Material Profile | Premium Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Superior Signal Integrity
Maintains an exceptionally stable VSWR of 1.25 or lower across the full 12.4-18.0 GHz band, ensuring maximum energy reflection mitigation and accurate tracking data compilation.
High-Power Reliability
Precision-engineered to manage continuous transmission loads up to 250W safely, making it perfectly suited for high-fidelity receiver grids and tactical electronic shielding setups.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control protocols, ensuring pristine mechanical layout tolerances and long-term electro-mechanical alignment.
Ultra-Lightweight Architecture
Weighing only 20g, this machined aluminum adapter is perfectly optimized for swift integration into portable gimbal assemblies, wireless test cells, or weight-sensitive drone payloads.
Request a Professional Quote
Contact our technical engineering team today to obtain certified individual V.S.W.R plots, alternative flange hole drilling patterns, or integrated waveguide sub-assembly solutions.
