Description & Specification

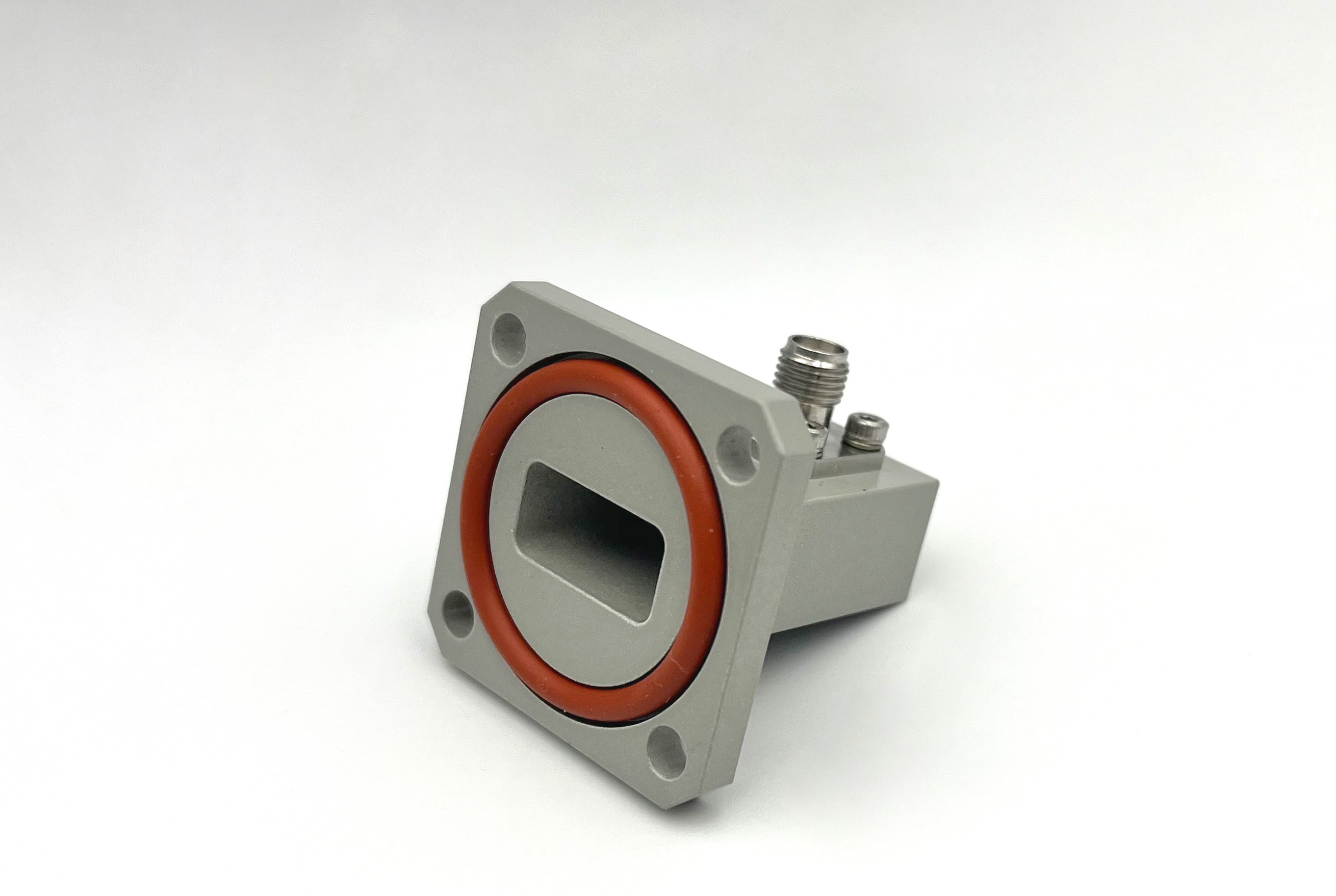

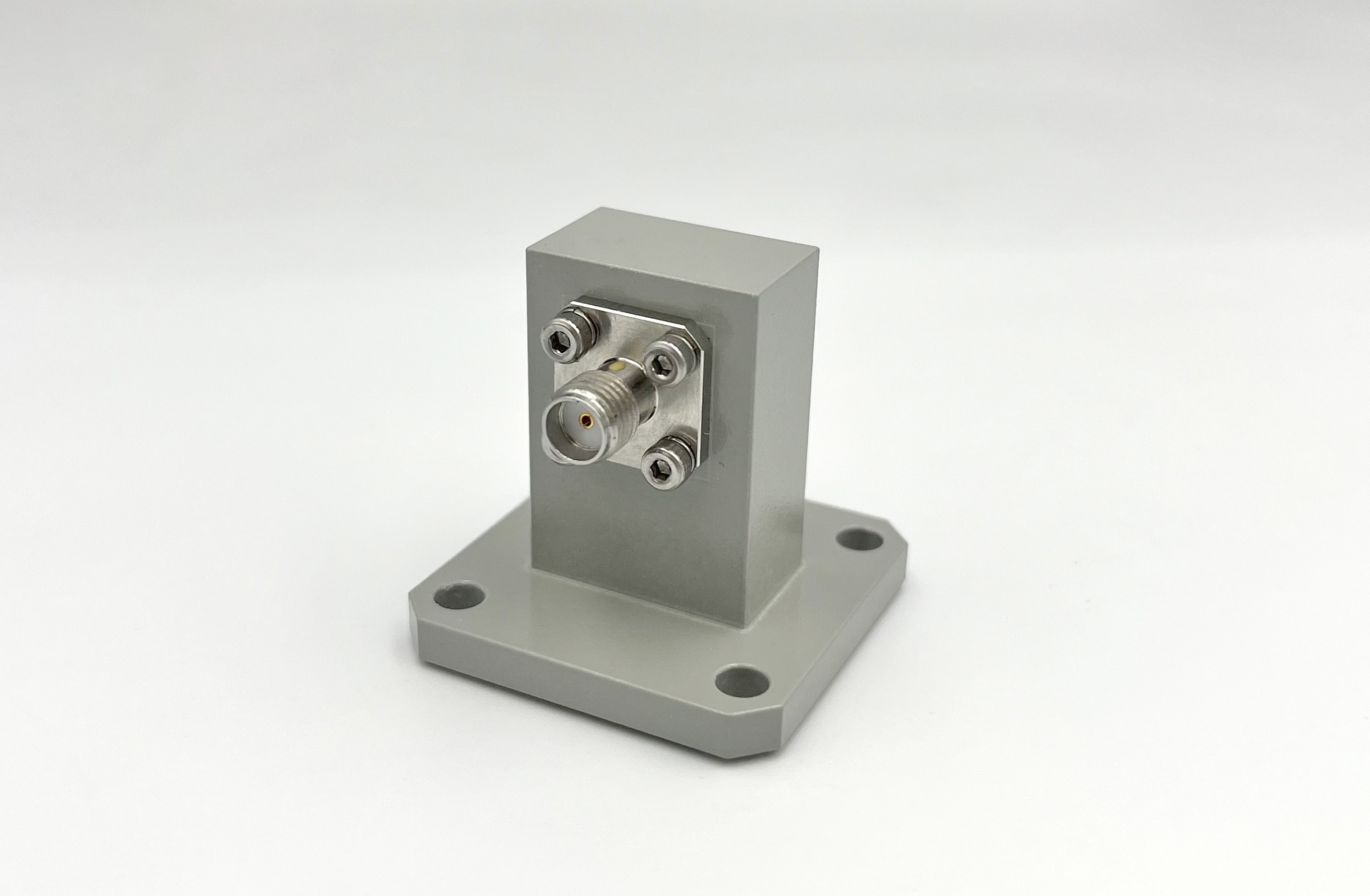

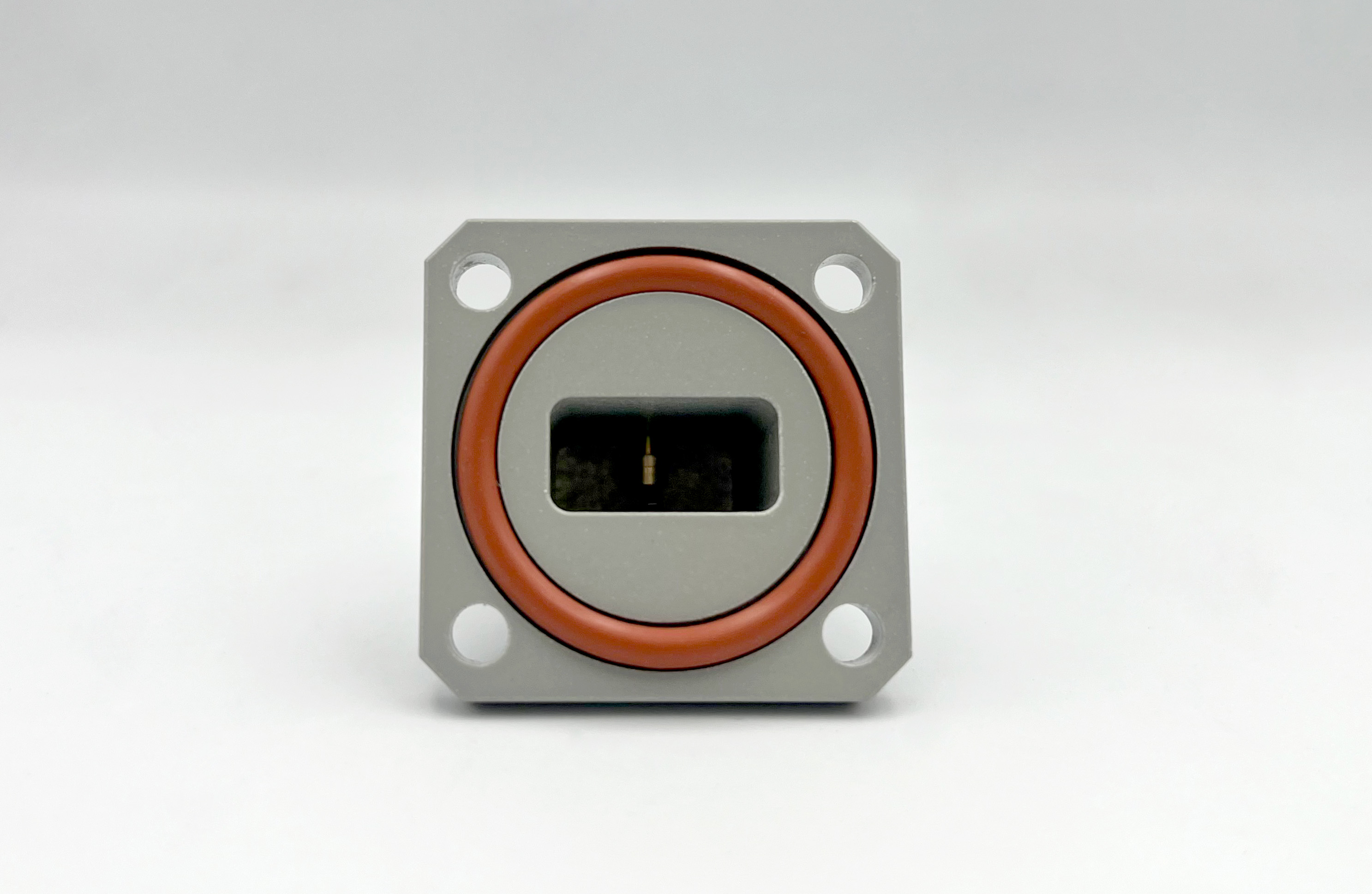

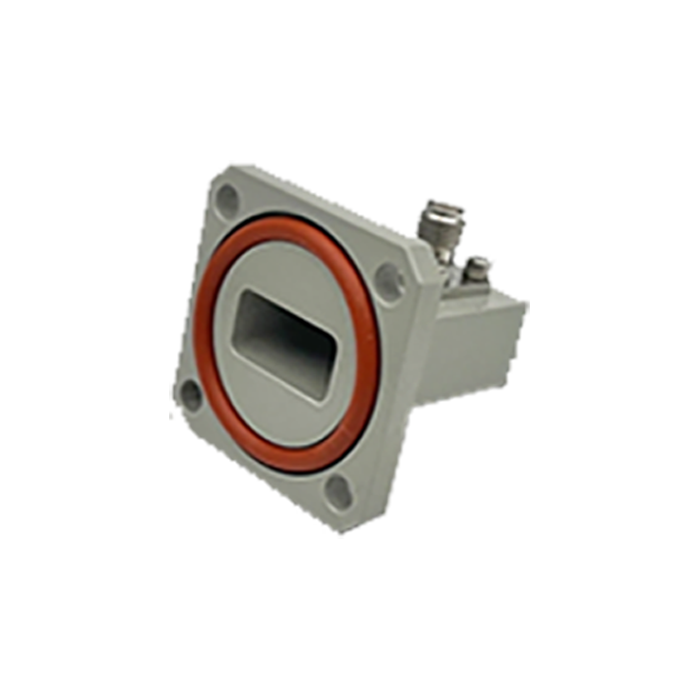

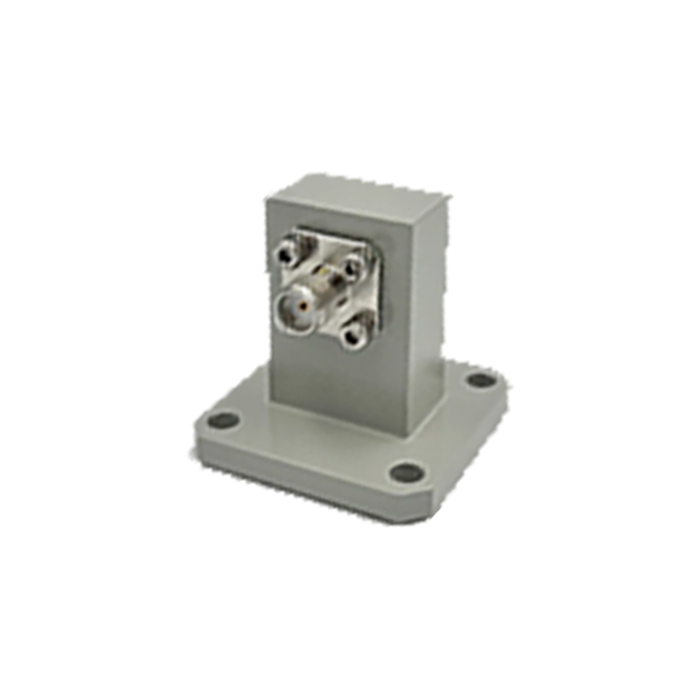

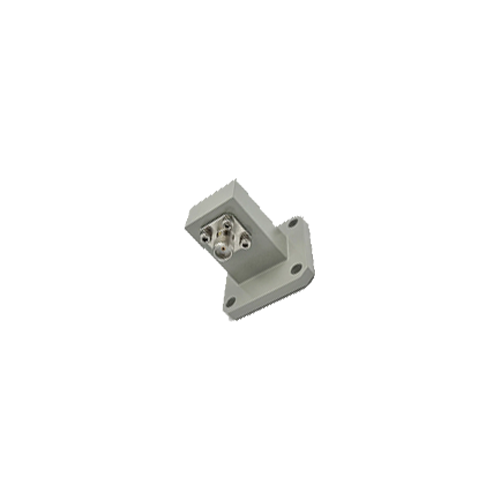

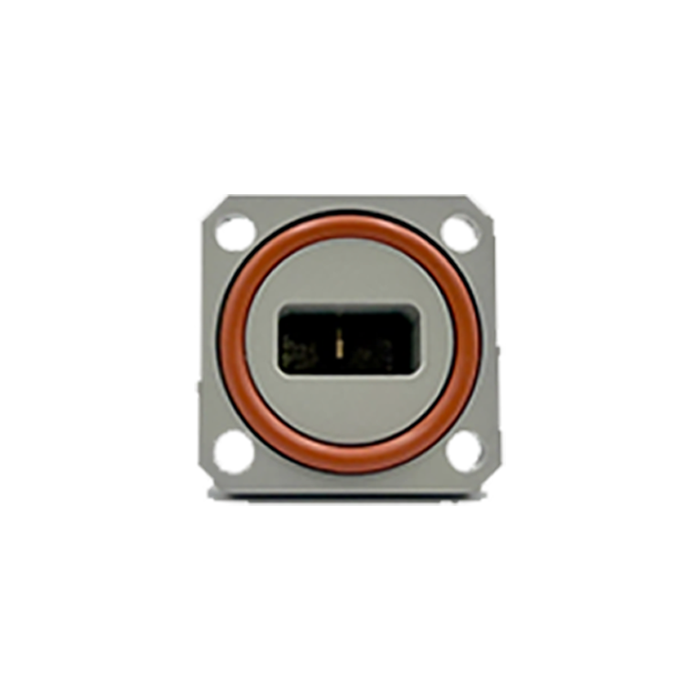

WR-62 Waveguide to Coaxial Adapter
Precision Ku-Band Transition | Standard PBR Flange Layout | 12.4 GHz – 18.0 GHz
The WC-62-PBR-A1-NF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-62 architectural layout. Operating continuously across the 12.4 GHz to 18.0 GHz Ku-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low nominal V.S.W.R profile of 1.25 : 1. Manufactured from high-grade aluminum alloy in Taiwan, this robust 40 g adapter features a standardized square UG-2664/U (PBR Style) flange interface with an integrated gasket groove, mated to a precision coaxial N-Female connector port with a durable stainless steel joint build. This specialized layout makes it the definitive choice for satellite communications, terrestrial links, advanced wireless testing networks, and mission-critical Signal Defense or Signal Security calibration arrays.
Electrical & RF Performance
| Frequency Range | 12.4 GHz to 18.0 GHz (Ku-Band Spectrum) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-62 (R140 / WG18 Layout) |
| Waveguide Flange Designation | UG-2664/U Style Layout (PBR Flange with Groove) |
| Coaxial Connector Interface | N-Female Interface Port Layout |
| Physical Dimensions (L x W x H) | 31.2 x 33.3 x 32.5 mm |
| Net Weight | 40 g (Precision Lightweight Profile) |
| Body Core Material Profile | High-Grade Machined Aluminum Alloy |
| Joint Interface Material | Premium Wear-Resistant Stainless Steel |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Ku-Band Precision Transition
Ensures highly optimized mode conversion across the full 12.4-18.0 GHz band, providing a critical low-insertion-loss link for high-frequency signal management systems and radar sub-systems.
Rugged Stainless Interface
Utilizes a premium stainless steel N-type coaxial joint build, ensuring maximum mating durability, wear resistance, and long-term mechanical survival in demanding laboratory or industrial environments.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, ensuring outstanding dimensional tolerances, clean mode coupling, and enduring calibration constancy.
Superior Signal Integrity
Precision-machined internal waveguide cavity dimensions eliminate path anomalies, ensuring exceptionally low return loss and unwavering flatness in professional communication networks.
Request a Professional Quote
Contact our technical engineering team today to request certified individual V.S.W.R plot metrics, alternative custom flange drilling patterns, specialized non-reflective treatments, or alternative connector configurations.
