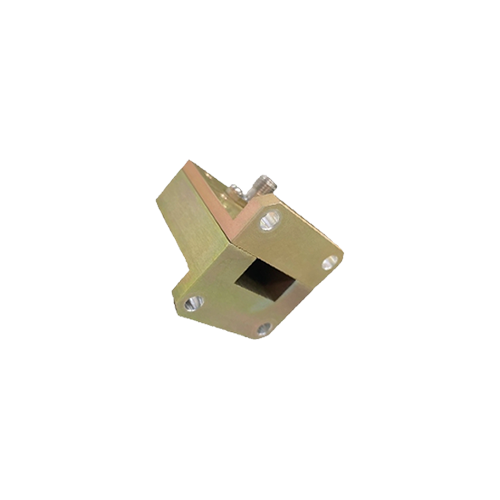

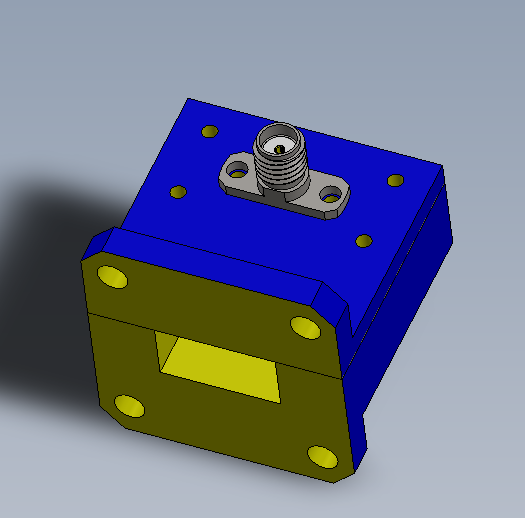

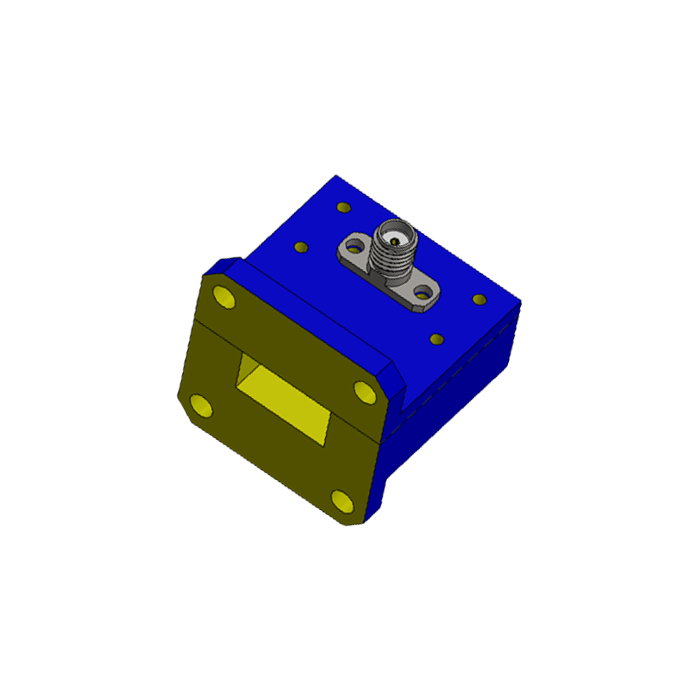

| Frequency Range | 12.4 GHz to 18.0 GHz (Ku-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-62 (R140 / WG18 Layout) |
| Waveguide Flange Designation | UG-2664/U Style Standard Layout (UDR Flange Pattern) |

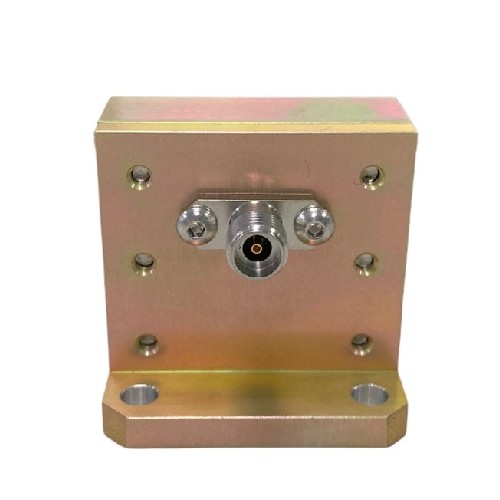

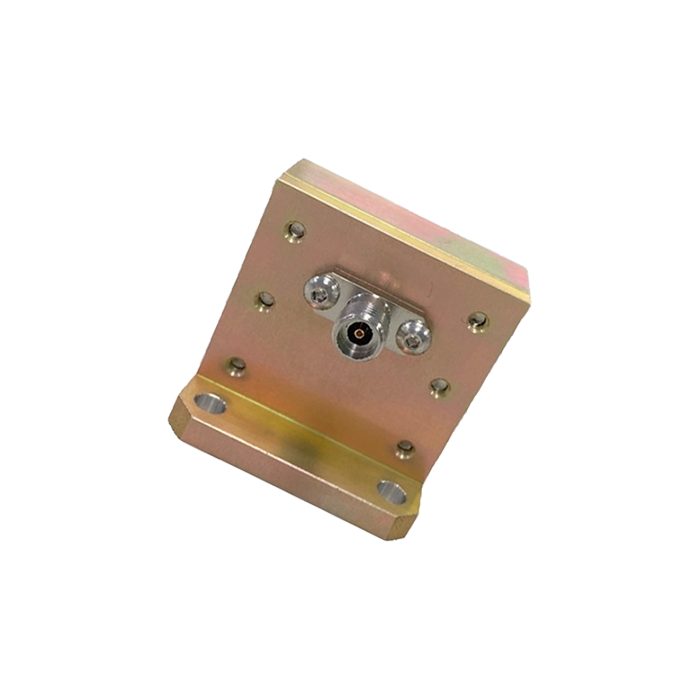

| Coaxial Connector Interface | SMA-Female Interface Port Layout |

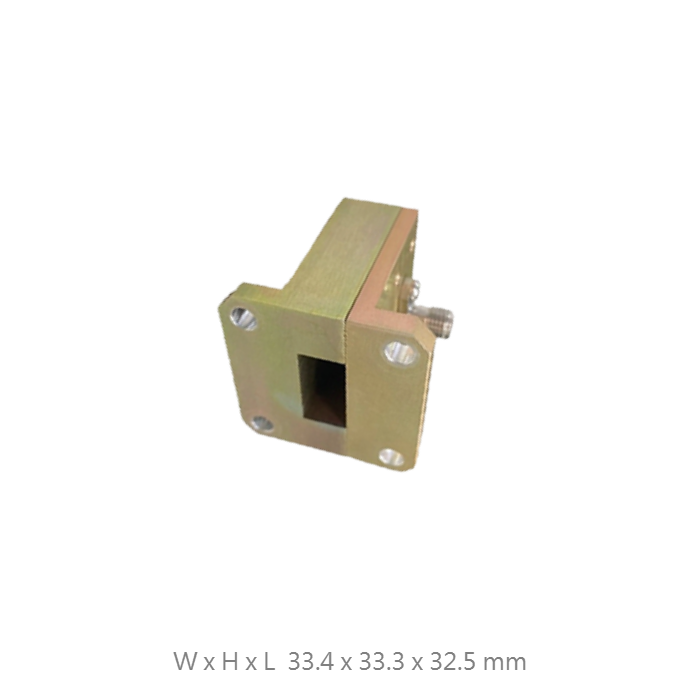

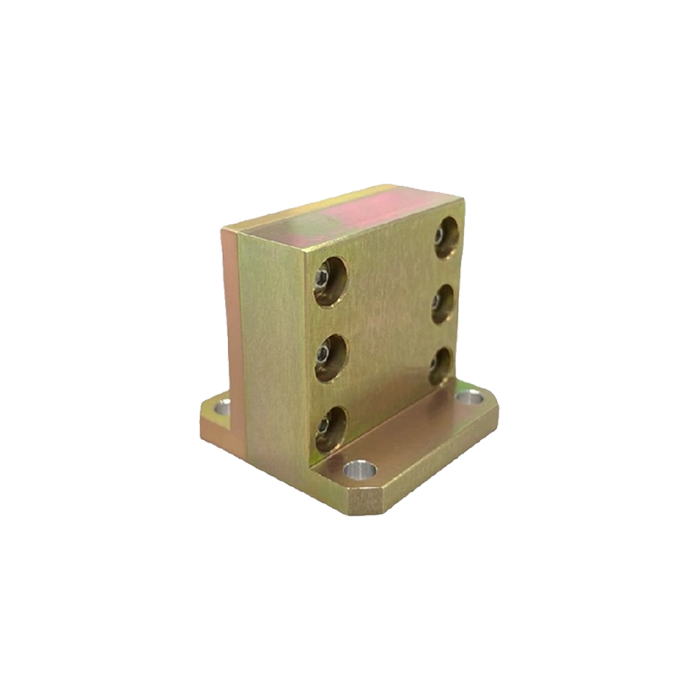

| Physical Dimensions (W x H x L) | 33.4 x 33.3 x 32.5 mm |
| Net Weight | 40 g (Ultra-Lightweight Profile) |
| Body Material Profile | High-Grade Machined Aluminum Core |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal insertion loss and clean mapping flatness across the full 12.4–18.0 GHz frequency spectrum.
Designed to serve as the core native transition block for standard rectangular WR-62 gain horn architectures, providing optimized impedance matching thresholds for accurate radiation patterns.
Precision designed and manufactured in Taiwan under strict industrial quality control parameters, ensuring consistent internal dimensions, absolute flat positioning alignment, and calibration constancy.
Precision-engineered to manage continuous wave transmission loads up to 300W CW safely without physical distortion, rendering it ideal for high-intensity laboratory research and tactical deployments.

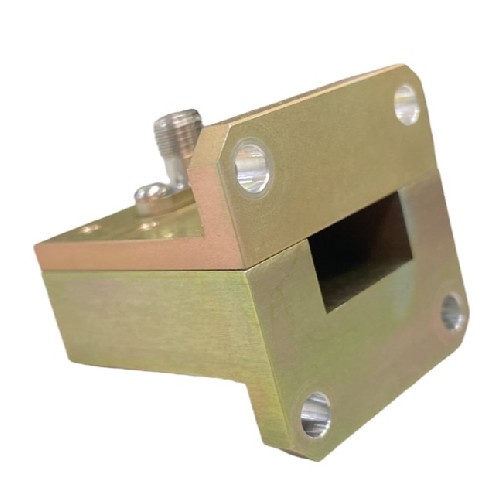

Features a standardized square UG-2664/U (UDR Style) flat cover flange interface layout for secure, low-leakage mechanical anchoring, ensuring stable power transfer in professional RF infrastructures.
Contact our technical engineering team today to request certified individual V.S.W.R plot charts, custom flange drilling patterns, specialized surface treatments, or alternative adapter layouts.
