Description & Specification

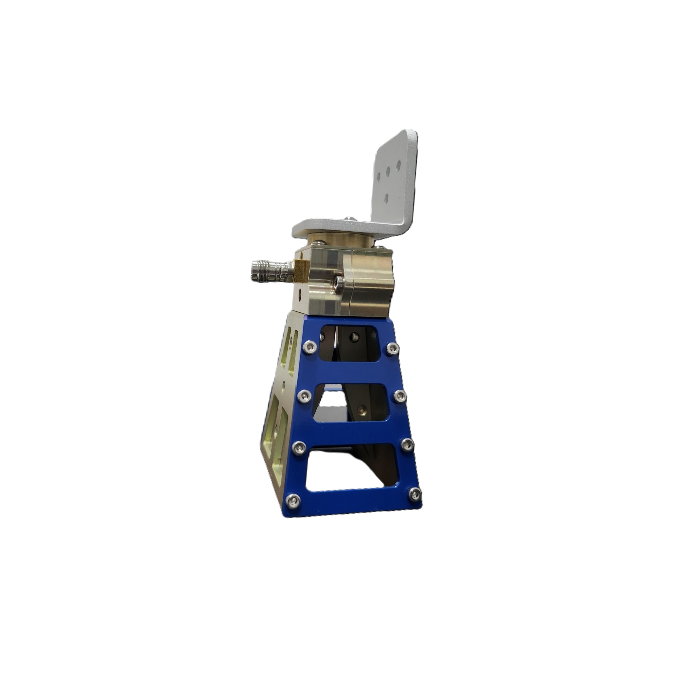

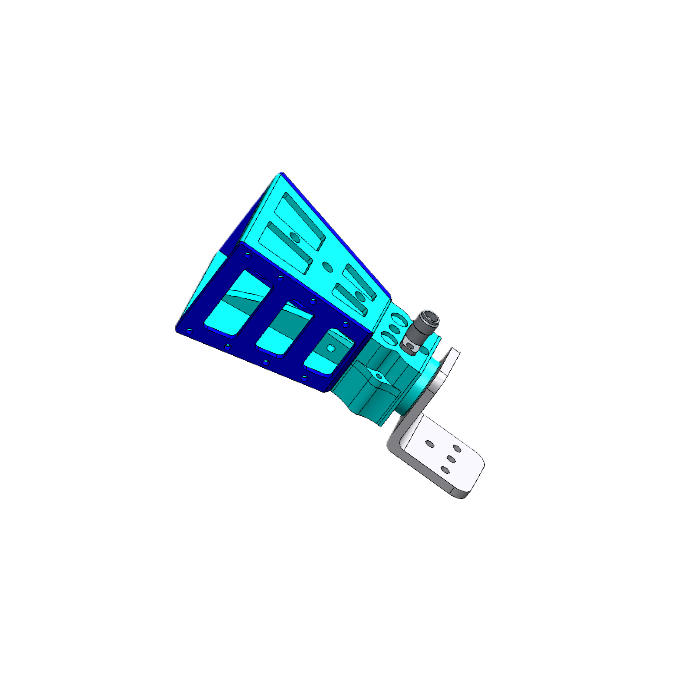

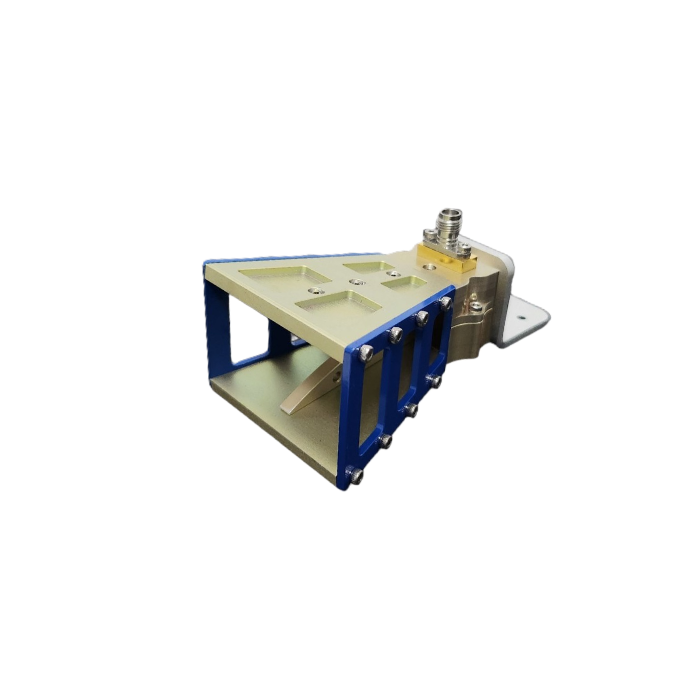

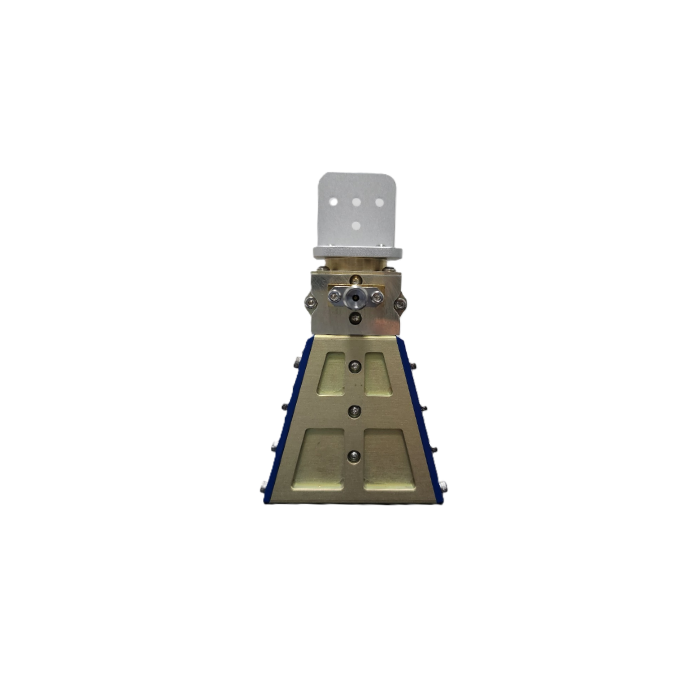

5GHz to 70GHz Double Ridged Broadband Waveguide Horn Antenna
Millimeter Wave Precision | 1.85mm (V-Female) | Model: HA-0570GB1-VF
The HA-0570GB1-VF is an ultra-wideband Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the extensive millimeter wave spectrum from 5 GHz to 70 GHz, it features an optimized aperture structure measuring 55 x 38 mm with an overall length of 104 mm (74 mm horn body). Built with high-precision aluminum alloy construction weighing approximately 90.6 g, it is equipped with a high-performance 1.85mm (V-Female) coaxial connector and integrated bracket mounting. This antenna provides an optimal measurement standard for 5G/6G millimeter-wave applications, broadband EMI/EMC testing, and chamber RF characterization.
Technical Specifications
| Frequency Range | 5 - 70 GHz |
| Antenna Type | Double Ridged Horn |
| Polarization | Linear |
| Impedance | 50 Ω |
| Connector | 1.85mm (V-Female) |
Mechanical & Physical Data

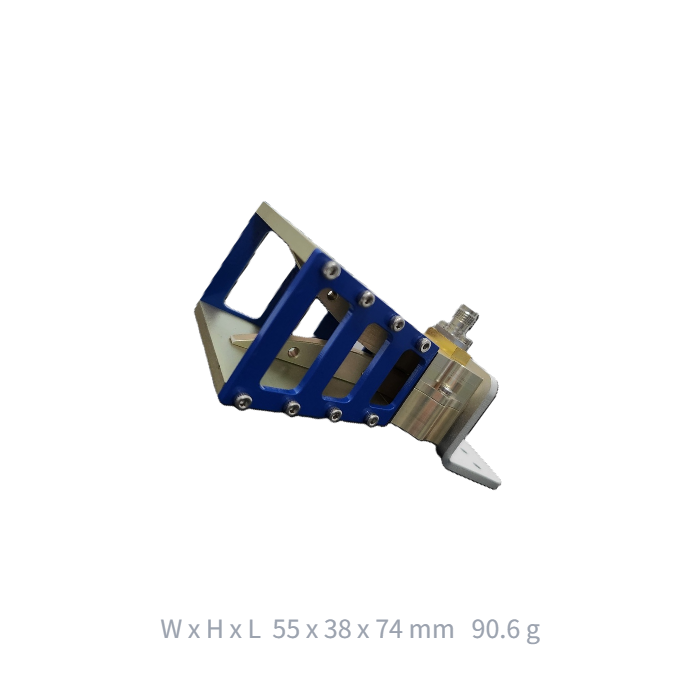

| Dimensions (W x H x L) | 55 x 38 x 74 mm (Total Length: 104 mm with Bracket) |
| Weight | 90.6 g (Estimated ~90.63 g) |
| Body Material | Precision Aluminum Alloy |

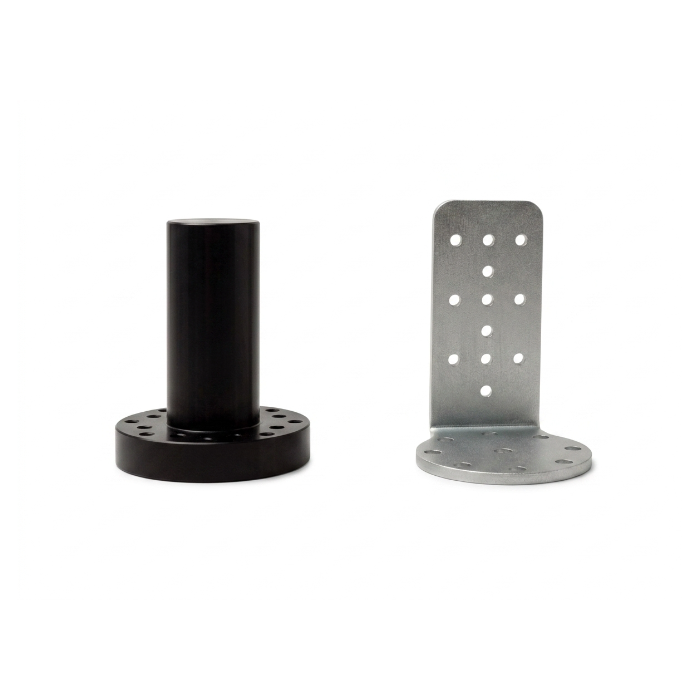

| Mounting Interface | Integrated Multi-Hole Bracket Mount |
| Country of Origin | Taiwan |
Gain Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Millimeter-Wave Coverage
Continuous broad spectrum spanning 5 GHz to 70 GHz for high-frequency RF research and testing.
Precision 1.85mm Connector
Equipped with a laboratory-grade V-Female (1.85mm) interface for reliable millimeter-wave performance.

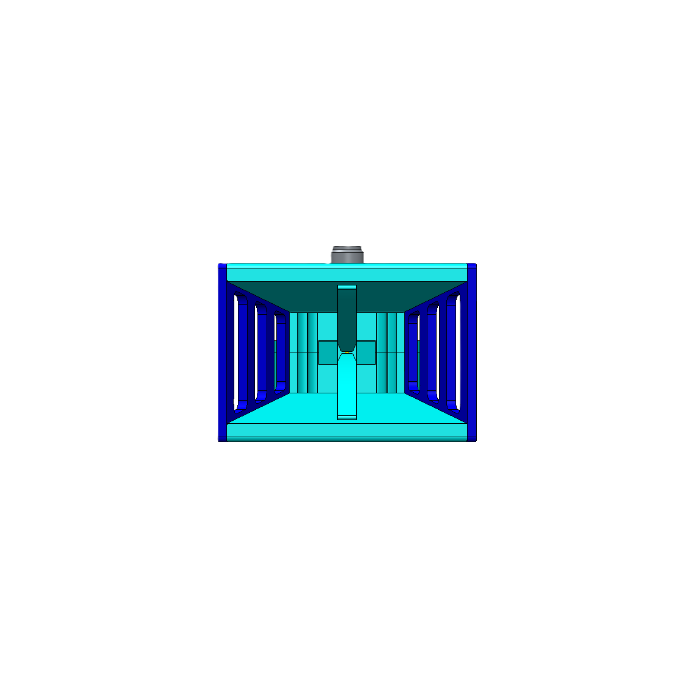

Compact Aperture Geometry
Optimized 55 x 38 mm aperture with an ultra-lightweight 90.6 g body for versatile bench and chamber setups.
Taiwanese Precision
100% precision engineered and manufactured in Taiwan to support high-frequency microwave applications.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
