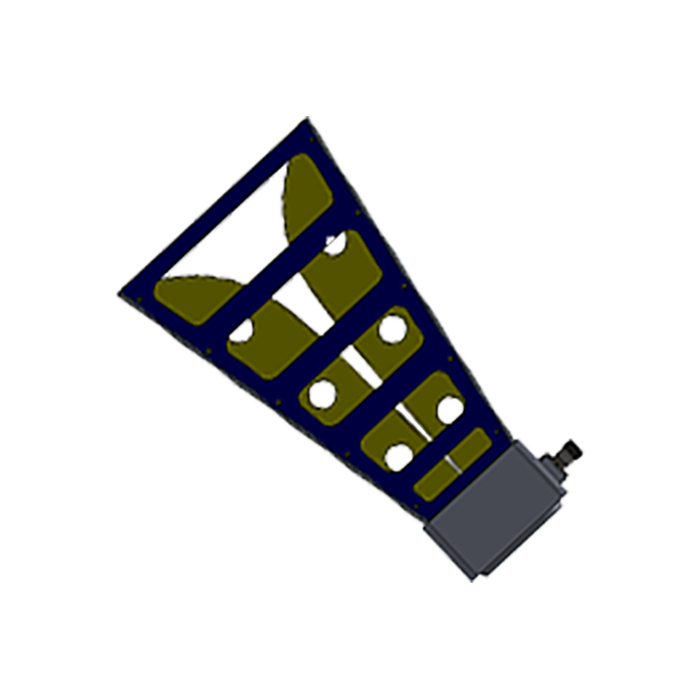

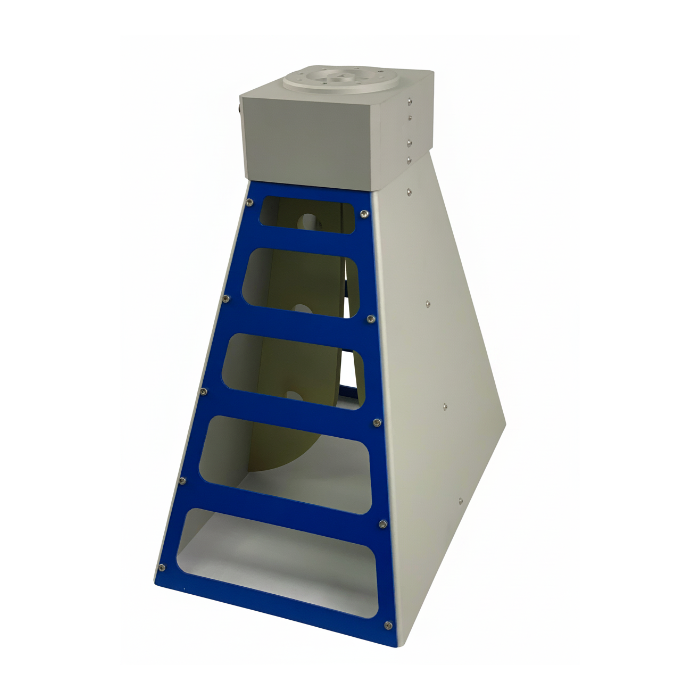

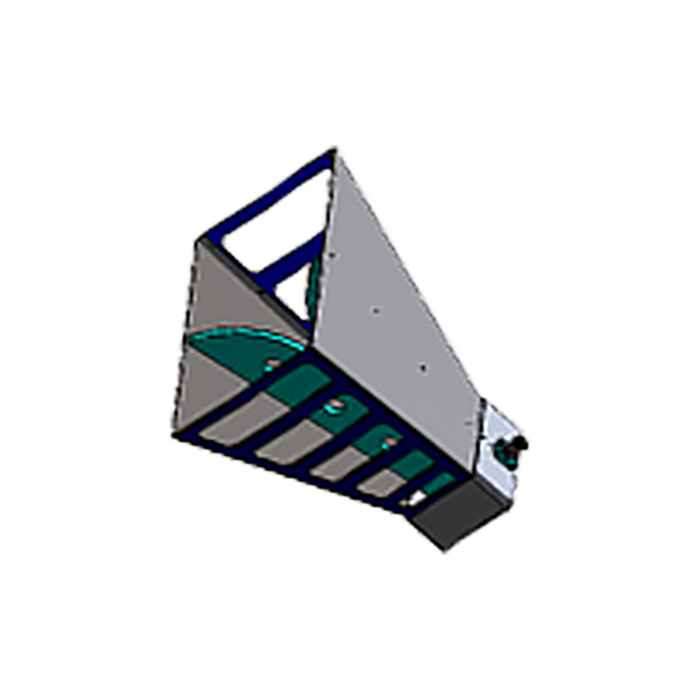

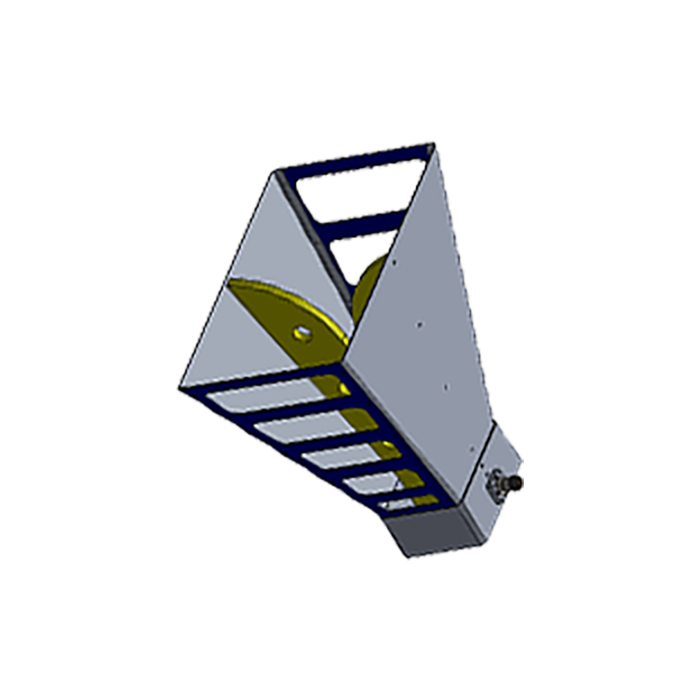

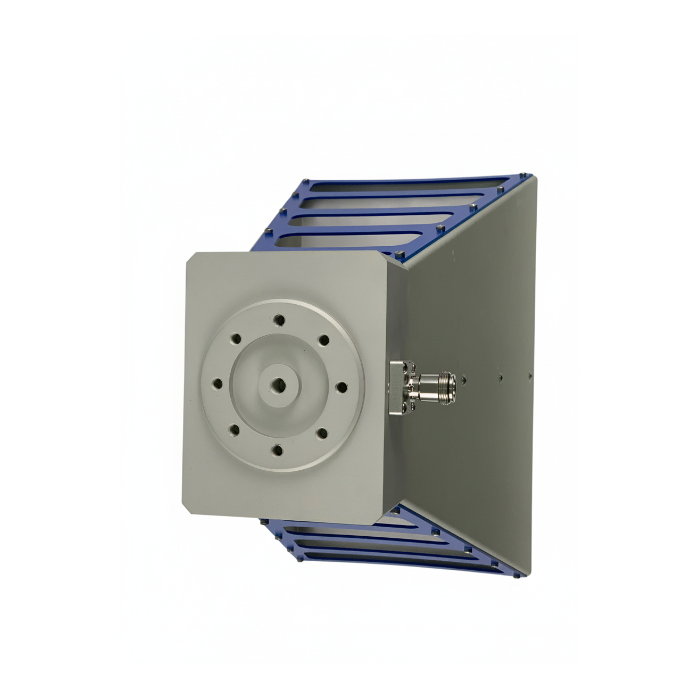

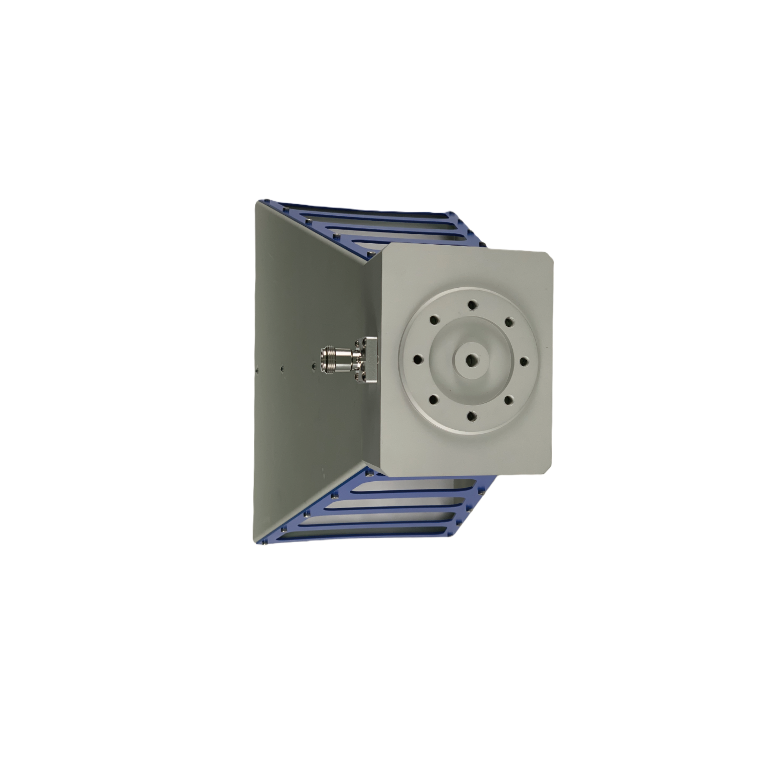

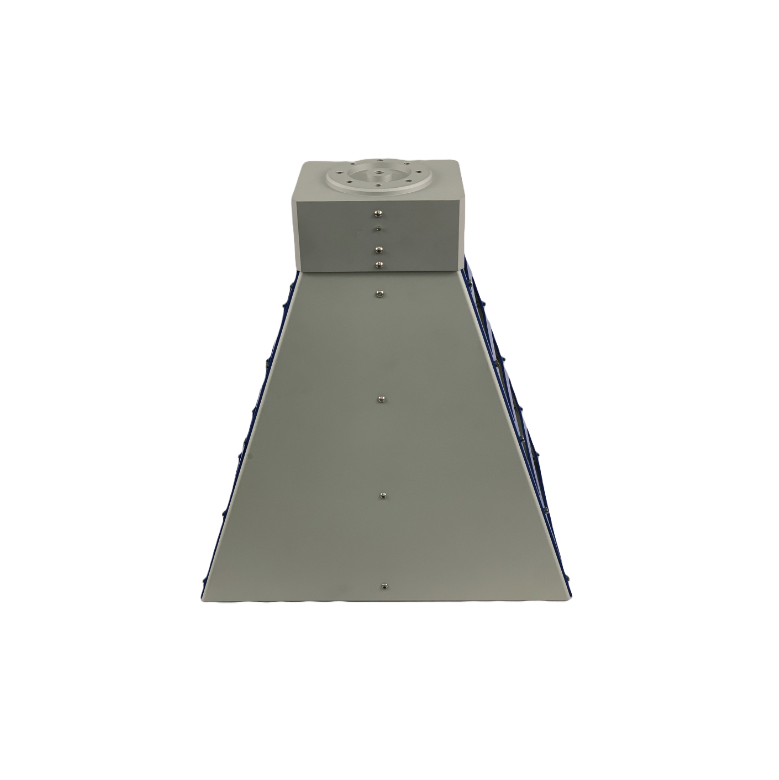

600MHz to 8GHz Double Ridged Broadband Waveguide Horn Antenna
High Power 500W (CW) | Stainless Steel N-Female | Model: HA-06M08G-NF
The HA-06M08G-NF is a high-performance Double Ridged Broadband Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the broadband frequency band from 600 MHz to 8 GHz, it provides stable directional gain from 4 to 14 dBi with a typical VSWR of 2.0:1 (2 GHz to 8 GHz) and 3.5:1 (600 MHz to 2 GHz). Built with premium 6061 aluminum alloy and copper internal structure with integrated DC short lightning protection, it supports continuous RF power handling up to 500W (CW). Measuring 344 x 319 x 196 mm (aperture 318.09 x 195.14 mm) and weighing only 2.9 kg, it is equipped with a durable stainless steel N-Female coaxial connector, offering an optimal standard for EMI/EMC compliance testing, laboratory microwave measurements, and broadband RF surveillance.
Technical Specifications
| Frequency Range | 600 MHz - 8 GHz |
| Antenna Type | Double-Ridge Broadband Horn |
| Radiation & Polarization | Directional | Vertical or Horizontal |
| Nominal Gain | 4 - 14 dBi |
| Antenna Factor | 21 - 35 dB/m |
| V.S.W.R | 600MHz-2GHz: 3.5:1 | 2GHz-8GHz: 2.0:1 |
| Maximum Power Handling | 500 Watts (CW) |
| Beamwidth (-3dB) | Hor. 39° | Ver. 49° (Avg: 39.28° / 49.82°) |
| Front-to-Back Ratio (FBR) | 22 dB (Avg) |
| Impedance & Connector | 50 Ω | Stainless Steel N-Female |
Mechanical & Environmental Data

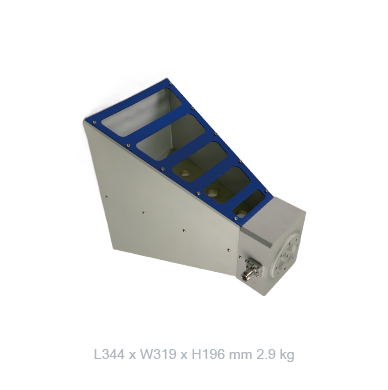

| Dimensions (L x W x H) | 344 x 319 x 196 mm (Aperture: 318.09 x 195.14 mm) |
| Antenna Weight (N.W) | 2.9 kg (Estimated ~2958.31 g) |
| Body Material | 6061 Aluminum Metal Alloy & Copper |
| Protection Feature | DC Short Lightning Protection |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 10% to 70% non-condensing |
| Safety Standards | ROHS, WEEE Compliant |
| Country of Origin | Taiwan |
Gain Calibration Plot
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
3dB Beamwidth Radiation Pattern
UPDATING IN PROGRESS
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
High Power Capacity
Handles up to 500W continuous CW RF power with built-in DC short lightning protection.
Compact & Lightweight
Precision-engineered aluminum body weighing only 2.9 kg allows versatile laboratory and tripod setup.
Consistent Directional Gain
Smooth 4 to 14 dBi gain profile across 600 MHz to 8 GHz for accurate radiated field generation.
Taiwanese Precision
Engineered and precision manufactured with 6061 alloy and copper in Taiwan for repeatable test data.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
