500MHz to 8GHz Double Ridged Broadband Horn Antenna
Ultra-Wideband High-Power Antenna | 800W Peak Power Handling
The 500MHz to 8GHz Double Ridged Broadband Horn Antenna is a premium precision instrument designed for wide-spectrum RF testing and high-power applications. Built from high-grade 6061 Aluminum alloy with a stainless steel N-female connector, this antenna covers a massive frequency range starting from 500MHz. It is engineered to handle an exceptional **800W peak power**, making it the ideal choice for EMI/EMC measurements, antenna characterization, and directional signal monitoring across multiple communication bands.
Technical Specifications
Electrical Specifications
[Image of 500MHz to 8GHz broadband horn antenna radiation pattern characteristics]| Frequency Range | 500 MHz - 8000 MHz |
| V.S.W.R | 2.0 : 1 (Average) |
| Antenna Type | Double Ridged Horn |
| Radiation | Directional |
| Gain | 3 dBi to 17 dBi |
| Antenna Factor | 24 - 40 dB/m |
| Polarization | Vertical or Horizontal |
| Maximum Power Handling | 800W (Peak) / 600W (Continuous) |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 10 - 35 dB |
| Connector | N-Female (Stainless Steel) |
Env. & Mechanical

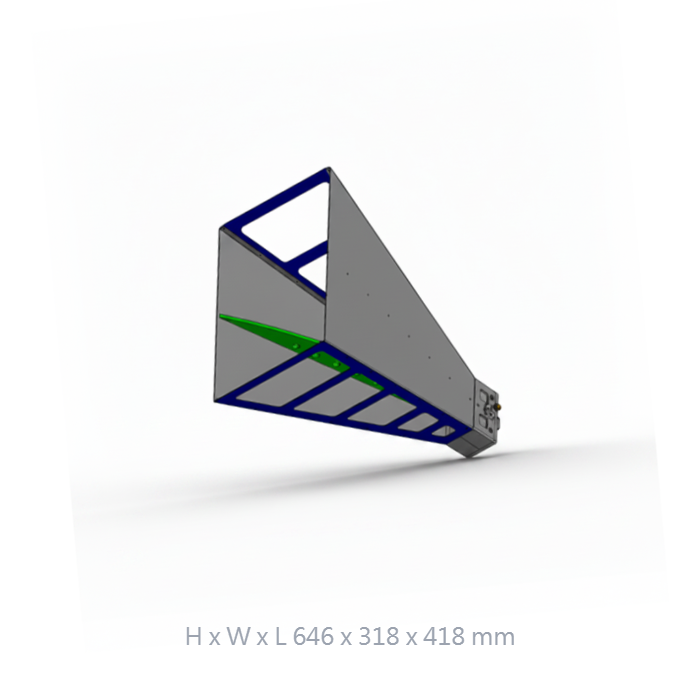

[Image of double ridged horn antenna 500MHz-8GHz mechanical dimensions diagram]
| Dimensions (WxHxL) | 318 x 646 x 418 mm |
| Antenna Weight (N.W) | 4 kg |
| Material | 6061 Aluminum Alloy |
| Mounting Options | L-Type Aluminum Bracket (M8, M6, or 1/4 inch) |
| Mounting Style | 22mm Tube / Long 300mm Indexing Ring |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS Compliant |
Key Features
Extreme Power Performance
Supports up to 800W peak power, providing robust reliability for high-intensity microwave testing.
Supports up to 800W peak power, providing robust reliability for high-intensity microwave testing.
Broad Spectrum Coverage
Unified performance from 500MHz to 8GHz, effectively covering UHF, L, S, and C bands in one unit.
Unified performance from 500MHz to 8GHz, effectively covering UHF, L, S, and C bands in one unit.
Integrated DC Short Safety
Features lightning protection design to safeguard connected receivers and high-value instrumentation.
Features lightning protection design to safeguard connected receivers and high-value instrumentation.
Consistent Beam Stability
Uniform gain and low VSWR (2:1 avg) ensure highly accurate and repeatable directional measurement data.
Uniform gain and low VSWR (2:1 avg) ensure highly accurate and repeatable directional measurement data.
Precision Taiwan Engineering
Made in Taiwan using 6061 Aluminum for superior mechanical stability and long-term durability.
Made in Taiwan using 6061 Aluminum for superior mechanical stability and long-term durability.
Consolidated Database
Performance is verified by a consolidated performance database for accurate calibration and analysis.
Performance is verified by a consolidated performance database for accurate calibration and analysis.
