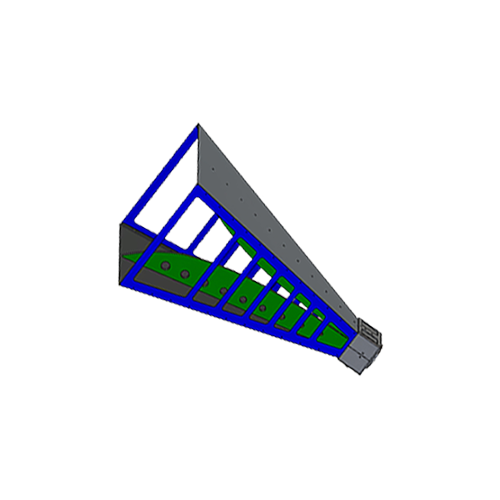

Broadband Double-Ridged Horn Antenna
Model: HA-03M06G-NF | 300 MHz - 6 GHz | 800W High Power
Core Electrical Specifications
| Frequency Range | 300 MHz to 6 GHz |
| Nominal Gain | 7 dBi to 20 dBi |
| V.S.W.R (Average) | 2 : 1 |
| Maximum Input Power | 800 Watts |
| Horizontal Beamwidth | 21° |
| Vertical Beamwidth | 22° |
| Antenna Factor | 12 to 37 dB/m |
Mechanical & Environmental Parameters

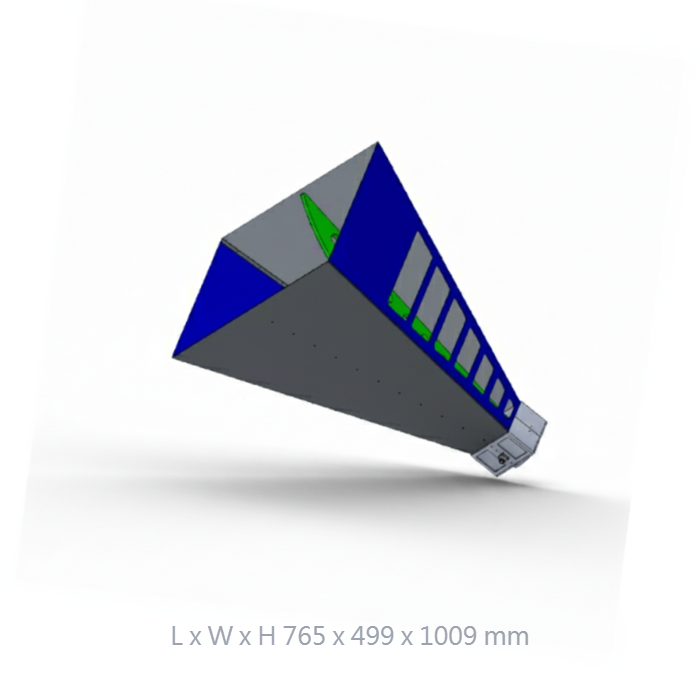

| Dimensions (LxW x H) | 765 x 499 x 1009 mm |
| Net Weight (G.W) | 14859 g |
| Structural Material | Aerospace Grade Aluminum |
| Mounting Interface | M8 / M6 / 1/4" L-Mount Options |
| Compliance Standards | RoHS, WEEE, CE, FCC |
Key Tactical & Lab Features
High-Intensity Power Dominance
Reliably manages up to 800W of input power, making it a primary radiator for intensive electronic protection and mobile tactical security operations.
Superior Signal Integrity
Features a substantial 20 dB Front-to-Back Ratio (FBR) and precise directional focus, ensuring repeatable and accurate data collection in shielded chambers.
Broadband Operational Efficiency
Single-radiator coverage from 300 MHz to 6 GHz eliminates the need for multiple antenna swaps during comprehensive EMC and Radar testing.
Industrial Grade Architecture
Constructed from high-quality Aluminum with a robust N-Female interface, built to withstand the rigorous demands of professional antenna range calibration.
