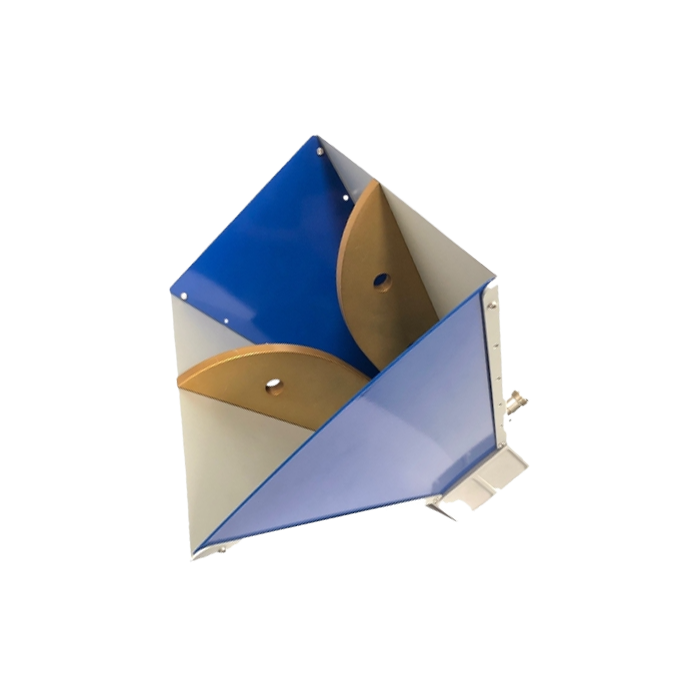

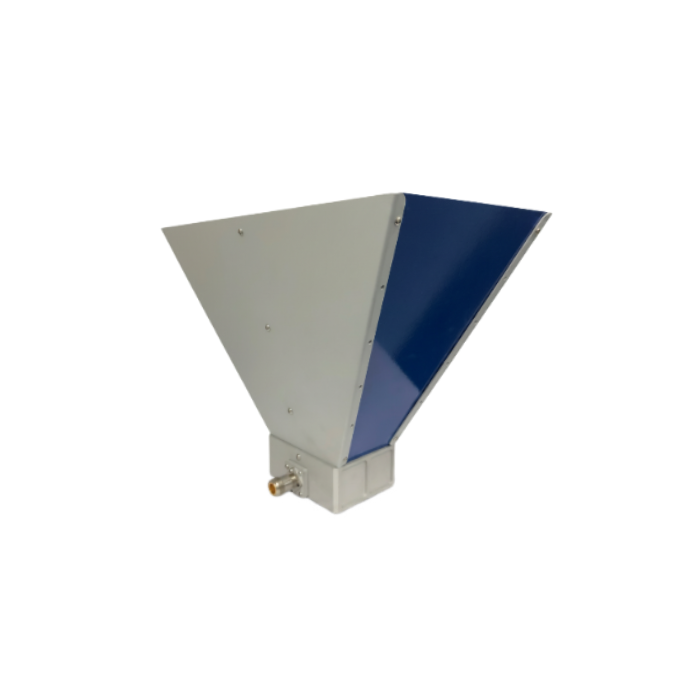

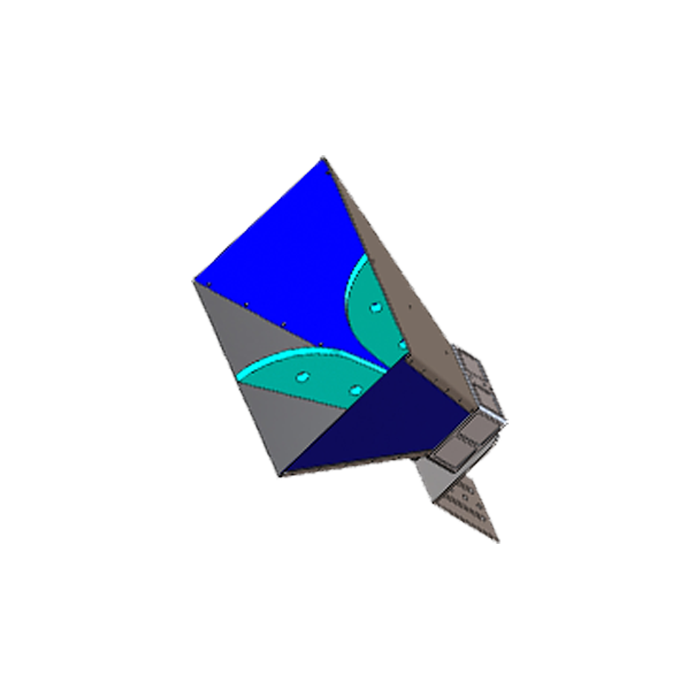

700MHz to 8GHz Double Ridged Broadband Horn Antenna
Broadband Directional Antenna | 500W High Power Capacity
The 700MHz to 8GHz Double Ridged Broadband Horn Antenna is a precision-engineered solution for professional RF and microwave environments. Constructed from premium 6061 Aluminum alloy, it offers a robust frequency span suitable for Antenna Measurement, EMC/RF testing, Surveillance, and Radar Detection Systems. Designed and manufactured in Taiwan, this antenna ensures stable gain and low VSWR performance with integrated DC short lightning protection and an N-female connector for maximum RF integrity.
Technical Specifications
Electrical Specifications
| Frequency Range | 700 MHz - 8 GHz |
| V.S.W.R (Avg) | 2.0 : 1 (Measured from 1GHz to 8GHz) |
| Antenna Type | Double Ridged Horn |
| Radiation | Directional |

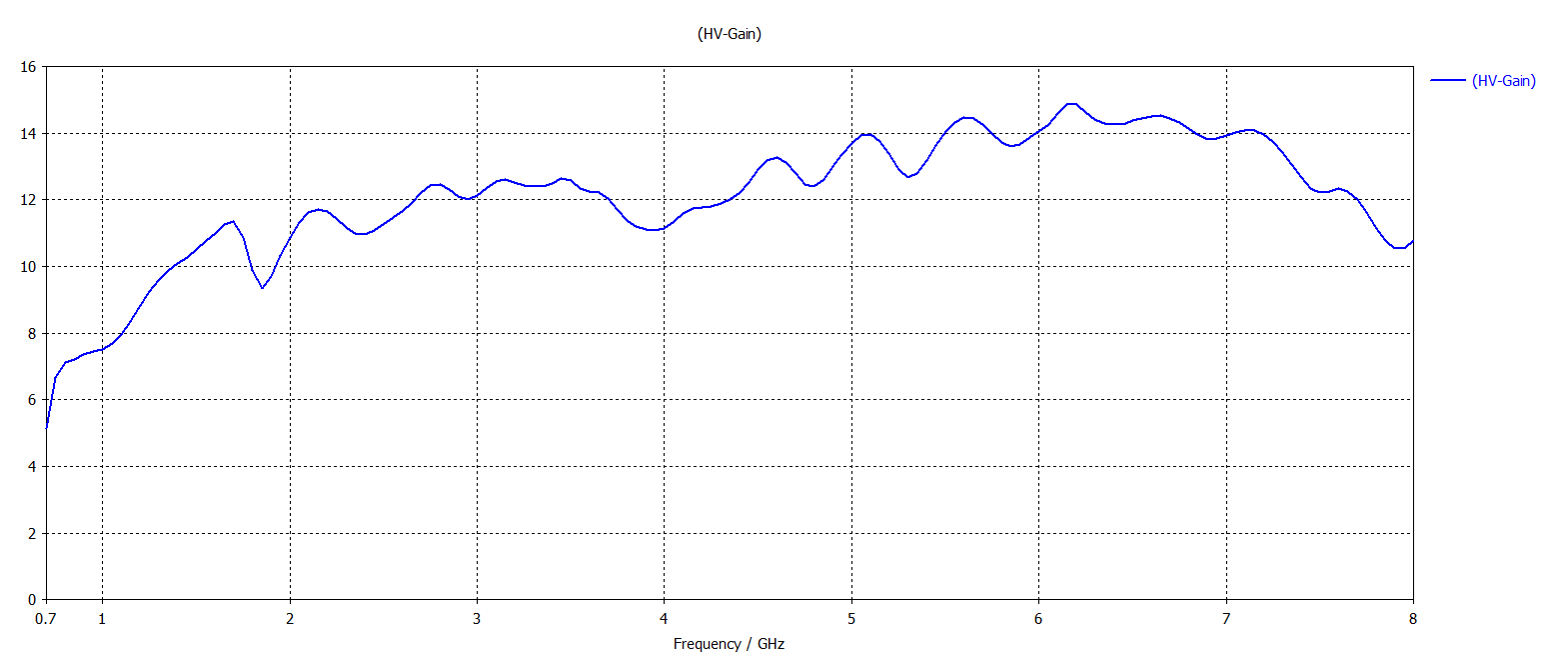

| Gain | 4 dBi to 17 dBi |
| Antenna Factor | 21 - 40 dB/m |
| Polarization | Vertical or Horizontal |
| Maximum Power | 500W (Peak) / 300W (Continuous) |

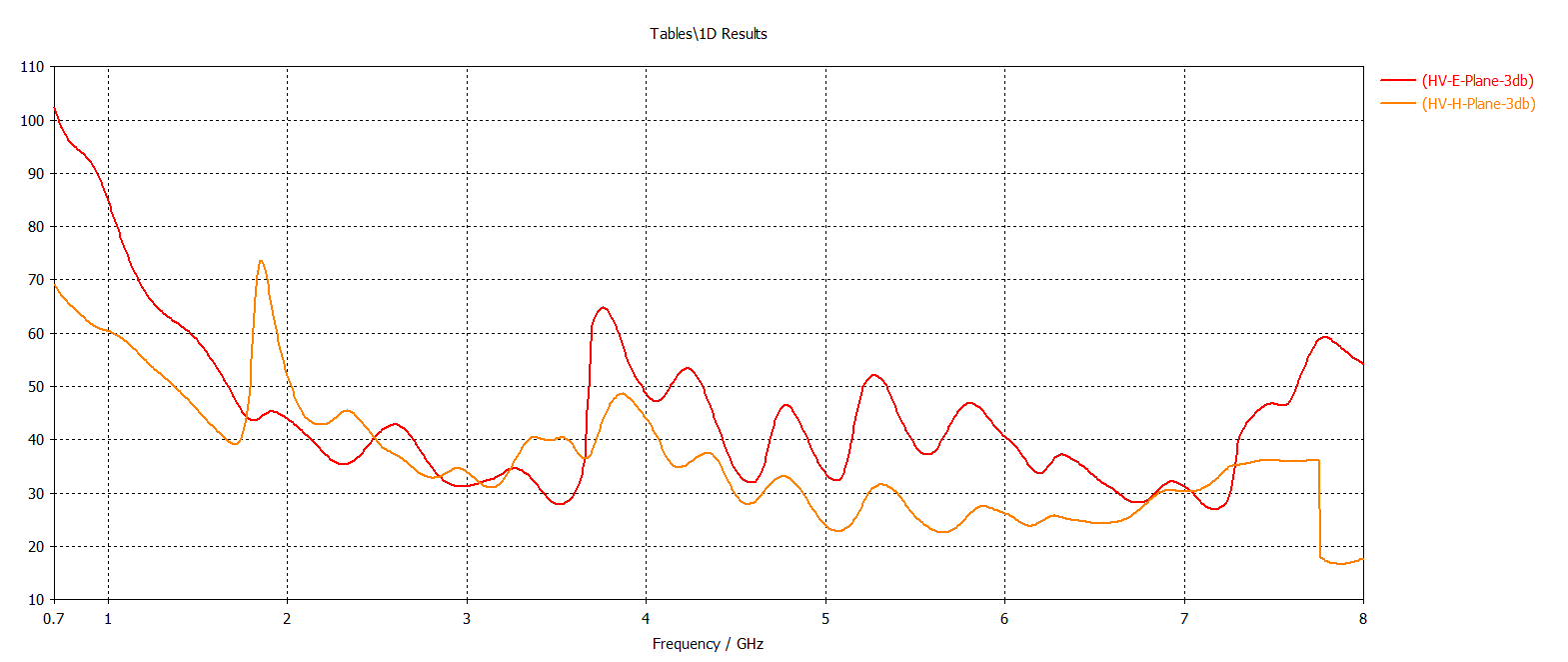

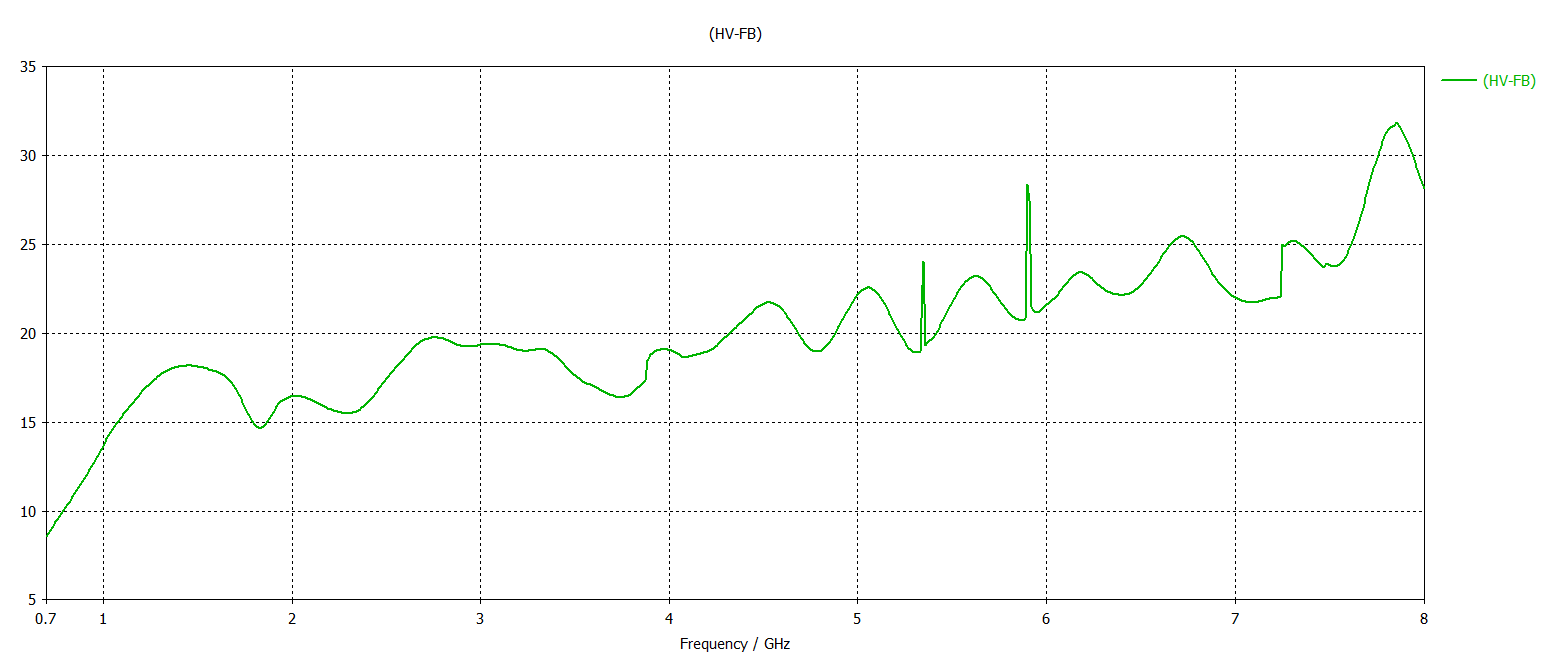

| Vertical Beam-width | 42° |
| Horizontal Beam-width | 58° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 19 dB |

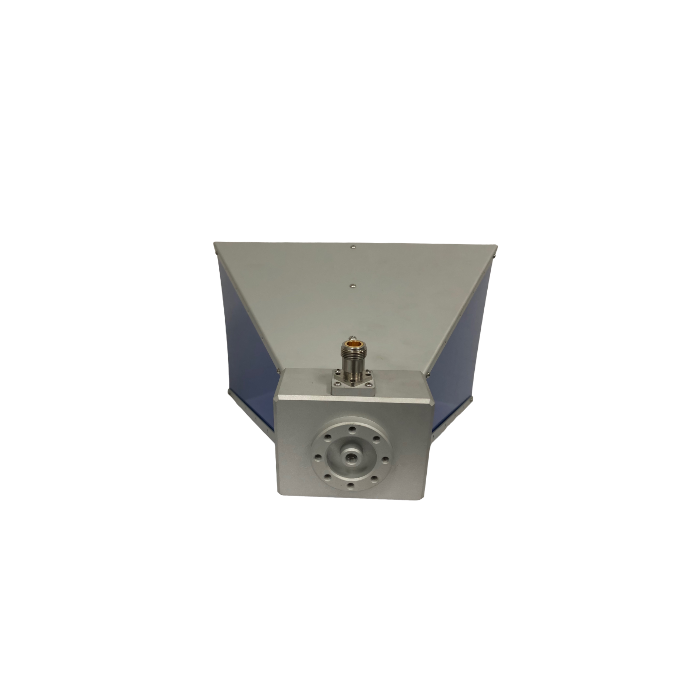

| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

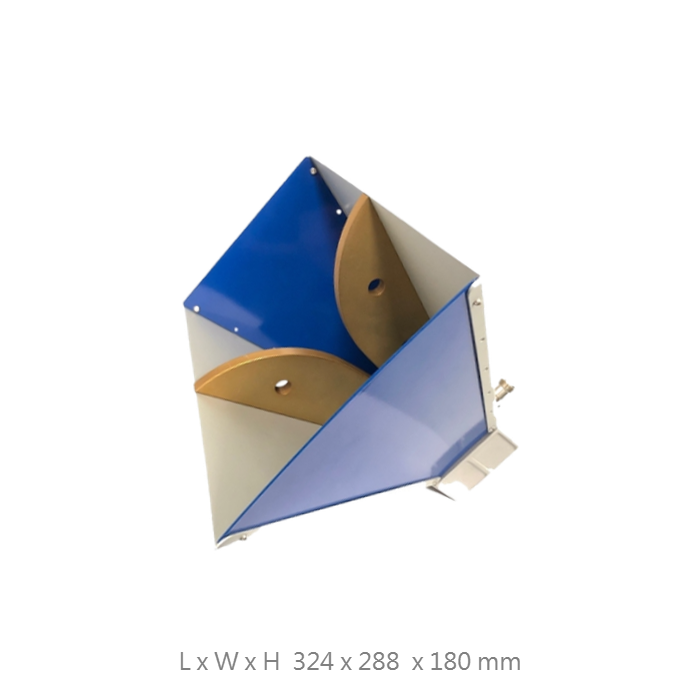

| Dimensions (L x W) | 324 x 288 mm |
| Height | 180 mm |
| Antenna Weight (N.W) | 1357 g |
| Material | 6061 Aluminum Alloy |

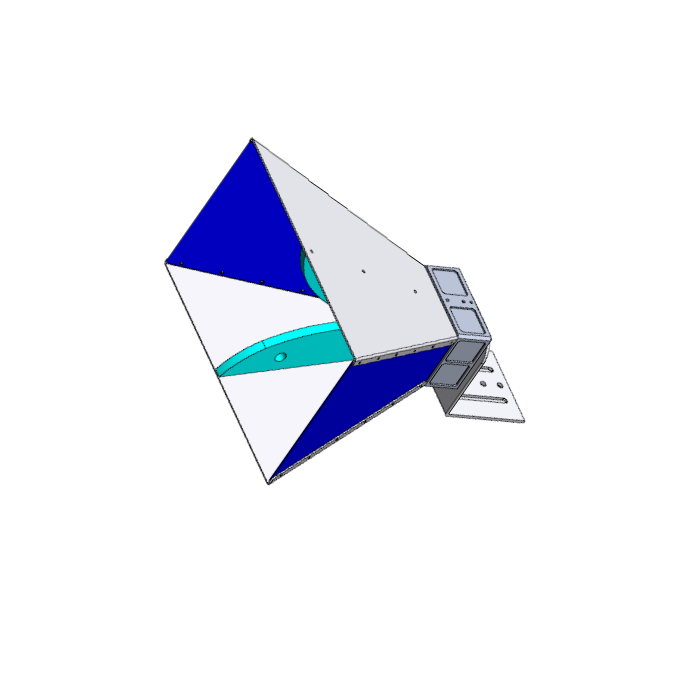

| Mounting Options | L-Type Aluminum Bracket (M6 or 1/4 inch) |
| Indexing Ring Mount | Compatible with 22mm Tube / Long 150mm |
| Operating Temperature | -20°C to +80°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
High Power Capability
Reliably manages up to 500W peak power, supporting high-intensity RF testing and radar detection.
Reliably manages up to 500W peak power, supporting high-intensity RF testing and radar detection.
DC Short Lightning Protection
Built-in design ensures safety by protecting connected measurement instrumentation from transient surges.
Built-in design ensures safety by protecting connected measurement instrumentation from transient surges.
Broad Spectrum Accuracy
Low average VSWR of 2:1 provides highly efficient signal transmission and fidelity across the band.
Low average VSWR of 2:1 provides highly efficient signal transmission and fidelity across the band.
Uniform Gain Stability
Maintains a progressive gain of 4-17 dBi for precise and repeatable data acquisition.
Maintains a progressive gain of 4-17 dBi for precise and repeatable data acquisition.
Premium Taiwan Quality
Precision-manufactured in Taiwan using 6061 Aluminum for superior mechanical and RF stability.
Precision-manufactured in Taiwan using 6061 Aluminum for superior mechanical and RF stability.
Versatile Mounting
Supports various mounting styles, including indexing rings and L-brackets, for easy system integration.
Supports various mounting styles, including indexing rings and L-brackets, for easy system integration.
