700MHz to 13GHz Double Ridged Broadband Horn Antenna
Ultra-Broadband Directional Antenna | 500W Peak Power

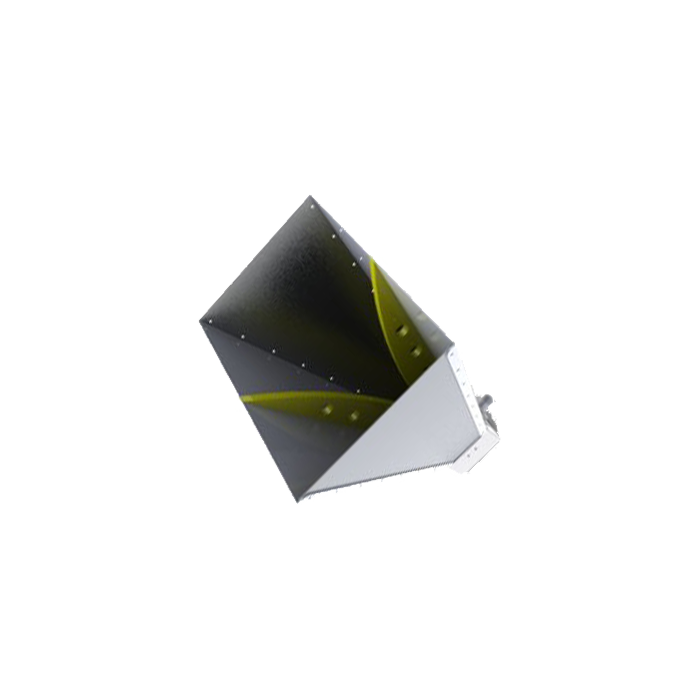

The 700MHz to 13GHz Double Ridged Broadband Horn Antenna is a versatile high-performance solution for broadband microwave applications. Crafted from premium 6061 Aluminum alloy and featuring an N-female connector, it covers a massive frequency span, making it ideal for Antenna Measurements, EMC/RF testing, Surveillance, and Radar Detection Systems. Designed and manufactured in Taiwan, it ensures low VSWR and uniform gain with integrated DC short lightning protection.
Technical Specifications
Electrical Specifications
[Image of 700MHz to 13GHz broadband horn antenna radiation pattern beamwidth]| Frequency Range | 700 MHz - 13 GHz |
| V.S.W.R | 2.0 : 1 (Average) |
| Antenna Type | Double Ridged Horn |
| Radiation | Directional |
| Gain | 4 dBi to 18 dBi |
| Antenna Factor | 24 - 45 dB/m |
| Polarization | Vertical or Horizontal |
| Maximum Power | 500W (Peak) / 300W (Continuous) |
| Vertical Beam-width | 90° - 10° |
| Horizontal Beam-width | 60° - 10° |
| Impedance | 50 Ohm |
| Front-to-Back Ratio (FBR) | 10 - 35 dB |
| Connector | N-Female (Stainless Steel) |
Mechanical & Environmental Specifications

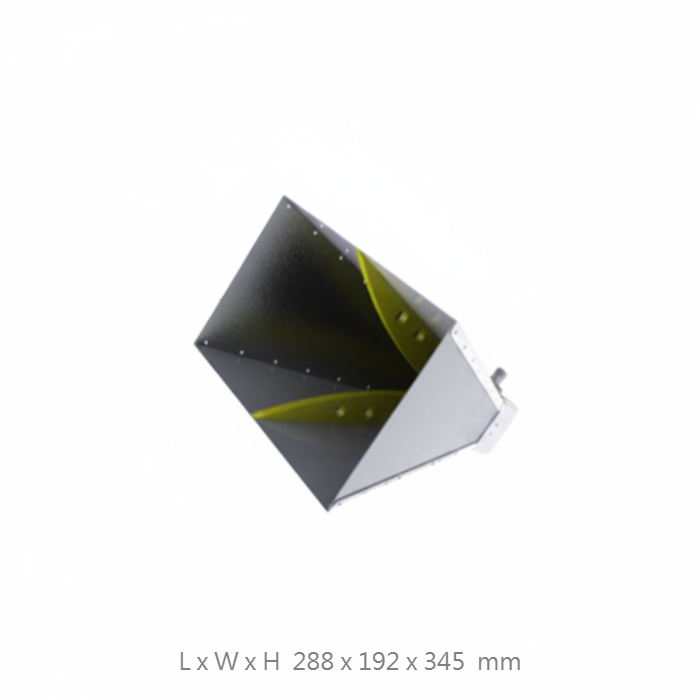

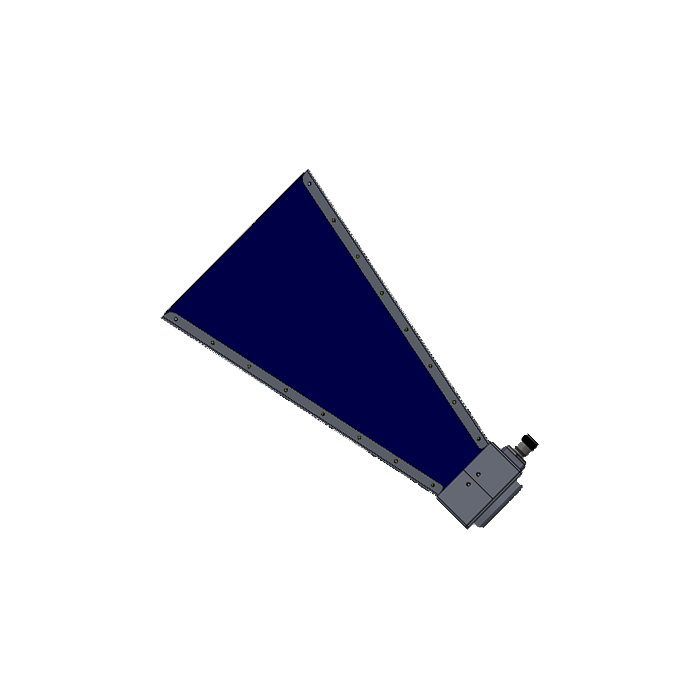

[Image of double ridged horn antenna mechanical dimensions diagram 700MHz-13GHz]| Dimensions (W x H x L) | 192 x 345 x 288 mm |
| Antenna Weight (N.W) | 1.67 kg |
| Material | 6061 Aluminum Alloy |
| Mounting Options | L-Type Aluminum Bracket (M6 or 1/4 inch) |
| Mounting Style | 22mm Tube / Long 200mm indexing ring |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Compliance | RoHS Compliant |
Key Features
Ultra-Broadband Coverage
Spans from 700MHz up to 13GHz, covering multiple RF bands in a single antenna unit.
Spans from 700MHz up to 13GHz, covering multiple RF bands in a single antenna unit.
High Power Handling
Reliably manages up to 500W peak power, making it suitable for active radar and high-intensity RF testing.
Reliably manages up to 500W peak power, making it suitable for active radar and high-intensity RF testing.
DC Short Lightning Protection
Built-in design safeguards connected measurement instrumentation from transient surges.
Built-in design safeguards connected measurement instrumentation from transient surges.
Low VSWR & High Efficiency
Maintains an average VSWR of 2:1 for efficient signal transmission and high-fidelity reception.
Maintains an average VSWR of 2:1 for efficient signal transmission and high-fidelity reception.
Premium Taiwan Quality
Precision manufactured using 6061 Aluminum alloy for long-term mechanical and RF stability.
Precision manufactured using 6061 Aluminum alloy for long-term mechanical and RF stability.
Consolidated Database
Supported by a consolidated performance database for accurate calibration and data analysis.
Supported by a consolidated performance database for accurate calibration and data analysis.
