600MHz - 8GHz Vivaldi Antenna
Fan-Beam Radiation Pattern | Ultra-Wideband | Model: VC-06M08GA-SF
The VC-06M08GA-SF is the newly launched evolution in our UWB antenna line, professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) as the enhanced successor to the VC-07M10G-SF. Operating within an expansive microwave spectrum across the continuous 600 MHz to 8 GHz band, this rugged Vivaldi Antenna offers a versatile single-antenna solution for wideband spectrum monitoring, ground-penetrating radar (GPR), and EMC pre-compliance testing. Featuring a low-loss SMA-Female connector interface, it ensures flawless structural impedance coplanarity and stable power transfer, managing continuous wave power loads up to 25 Watts (CW). Precision sculpted from premium 6061 Aluminum Alloy in Taiwan, it exhibits exceptional mechanical longevity, a robust profile, and uniform radiation paths combined with a maximum V.S.W.R threshold of 3.0 : 1. It stands as a critical asset for modern laboratory setups, automated antenna characterization ranges, and mission-critical high-frequency applications where uncompromised millimeter-wave performance parameters must be maintained flawlessly.
Electrical Specifications
| Frequency Range Class | 600 MHz to 8 GHz (Ultra-Wideband Spectral Optimization) |
| Nominal Gain Profile | -14 dBi to 4 dBi (Frequency dependent) |
| V.S.W.R Profile (Max) | 3.0 : 1 (Stable Broadband Performance) |
| Maximum Power Handling | 25 Watts (CW Continuous Wave Limit) |
| Polarization / Impedance | Linear / 50 Ohms |
Key Tactical Features

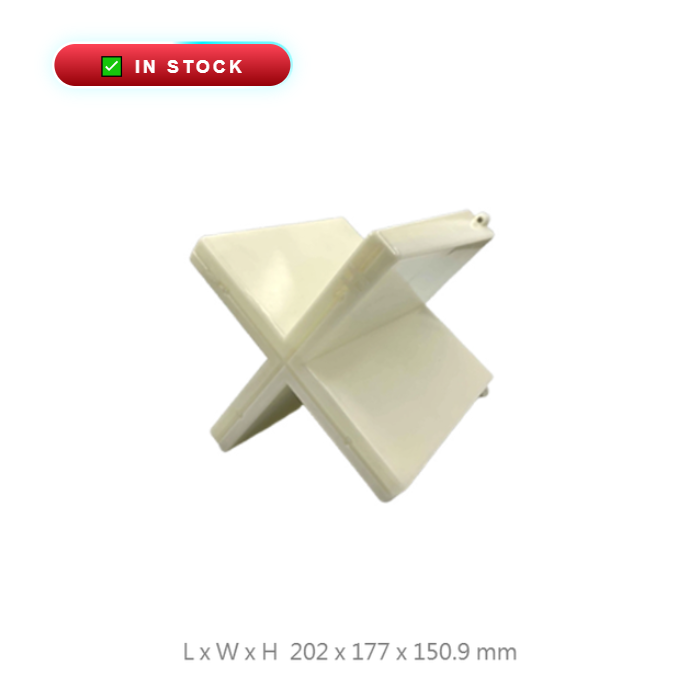

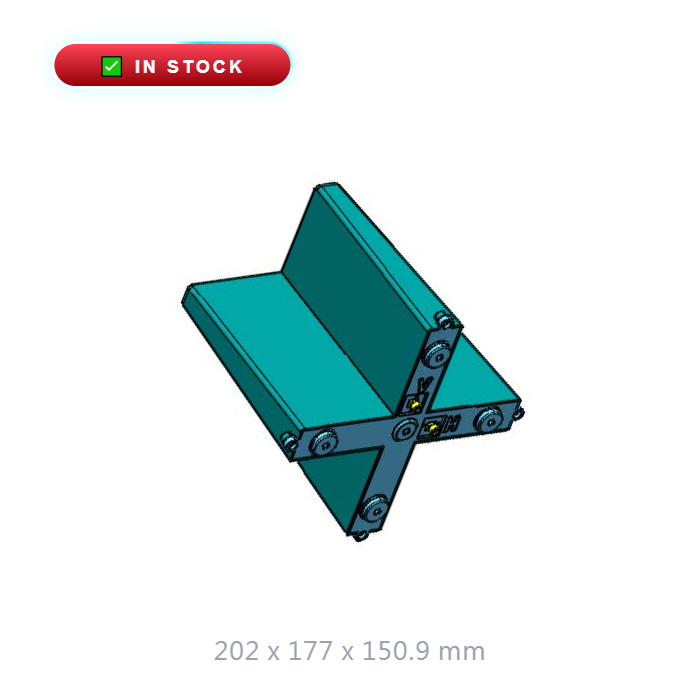

| Physical Dimensions (L x W x H) | 202 x 177 x 150.9 mm |
| Net Weight Profile | ~ 330 g (Lightweight Aerospace Footprint) |
| Connector Port style | SMA-Female (SMA-SMA Layout Configuration) |
| Structural Body Material | High-Grade 6061 Aluminum Alloy |
| Operating Temperature Range | -20°C to +80°C |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Ultra-Wideband Evolutionary Design
Serves as the enhanced successor to the VC-07M10G-SF, delivering an expanded spectrum from 600 MHz to 8 GHz for total flexibility in broad-area testing environments.
Ground Penetrating Radar Stability
Engineered with precise radiation properties and gain consistency across the spectrum, making it an ideal choice for advanced GPR modules and radar infrastructure.
Robust 6061 Aluminum Alloy
Precision structured with structural aluminum alloy body architecture to survive extreme thermal windows from -20°C up to +80°C without mechanical degradation.
EMC Pre-Compliance Ready
Maintains traceable and repeatable directional fan-beam characteristics required for high-accuracy spectrum monitoring and professional calibration laboratories.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual certified radiation patterns, or customized weatherproof structural designs.
