WR90 8.2 to 12.4GHz SMA-Female Waveguide Coaxial Adapter
X-Band Right-Angle Precision Transition | Flange: UBR | Model: WC-090-UBR-SF

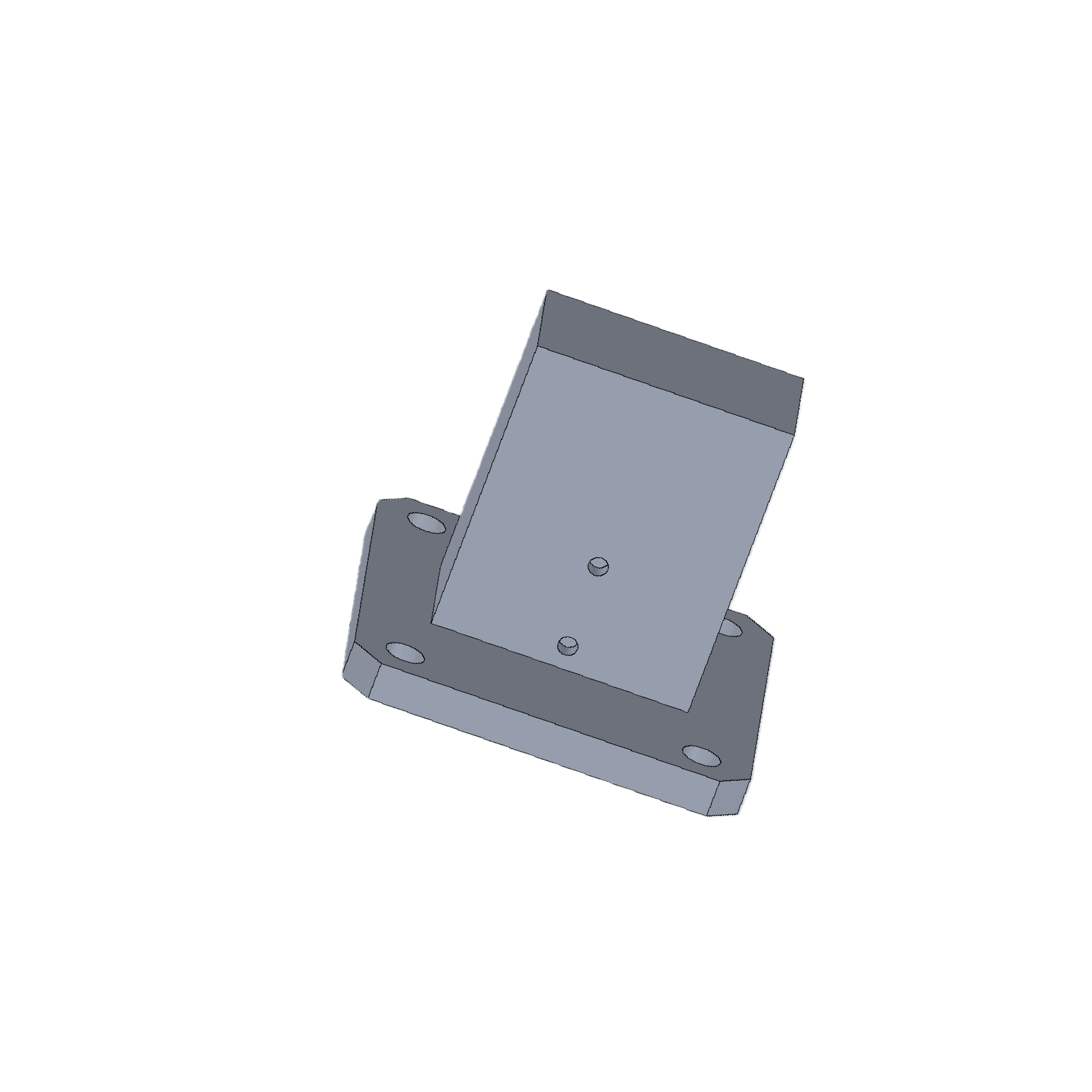

The WC-090-UBR-SF is a precision X-band rectangular waveguide to coaxial adapter professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) in Taiwan. Operating across the 8.2 GHz to 12.4 GHz frequency range, it provides an efficient and low-loss right-angle transition between standard WR-90 (WG16 / R100) rectangular waveguides and 50-ohm SMA-Female coaxial connections. Built with tight mechanical tolerances, it delivers a low maximum VSWR of 1.25:1 with exceptional repeatability. Featuring a compact aluminum body with an integrated square UBR flange (compatible with UBR100 / FBP100 patterns) and a passivated stainless steel SMA-Female connector, it handles up to 50W CW / 500W Peak power, serving as a dependable component for satellite communications, microwave links, and precision laboratory RF measurements.
Technical Specifications
| Frequency Range | 8.2 - 12.4 GHz |
| Waveguide Size | WR-90 (WG16 / R100) |
| Flange Type | UBR (UBR100 / FBP100 Compatible) |
| Connector Interface | SMA-Female (Right-Angle) |
| Impedance | 50 Ω |
| V.S.W.R (Max) | 1.25 : 1 |
| Continuous Power (CW) | 50 Watts |
| Peak Power Handling | 500 Watts |
Mechanical & Physical Data

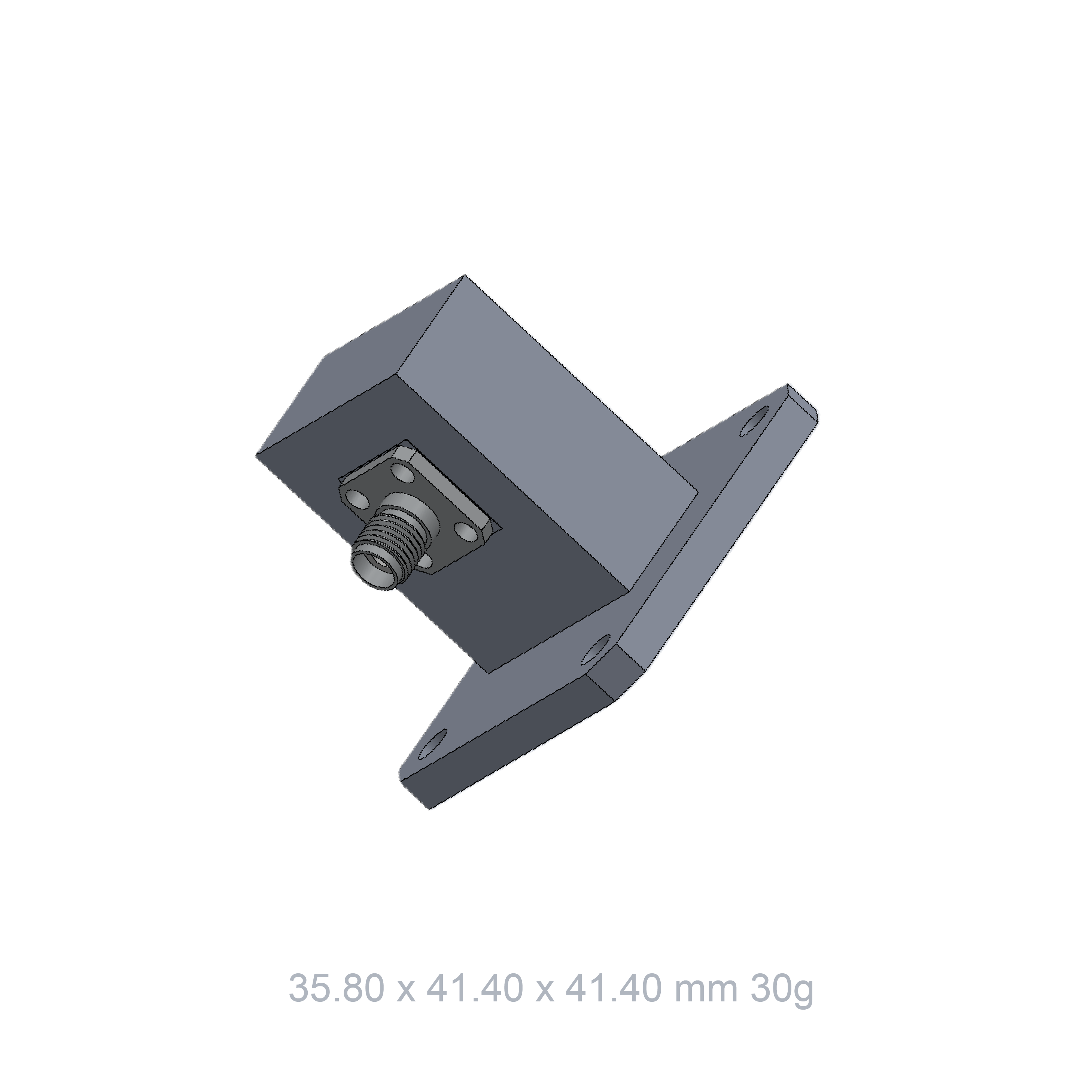

| Dimensions (L x W x H) | 35.80 x 41.40 x 41.40 mm |
| Component Weight | 30 g (Estimated ~29.82 g) |
| Body Material | Precision CNC Aluminum Alloy |
| Connector Material | Passivated Stainless Steel |
| Flange Hole Pattern | 4 x 4.00 mm Thru Holes (Square Flange Pattern) |
| Country of Origin | Taiwan |
Insertion Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
VSWR Performance Curve
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Return Loss Calibration Plot
Calibration in Progress
Laboratory measurement data pending official upload. Available upon request.
Key Design & Feature Highlights
Right-Angle Transition
Orthogonal launch geometry allows convenient cable routing in compact microwave instrument enclosures.
Low VSWR Matching

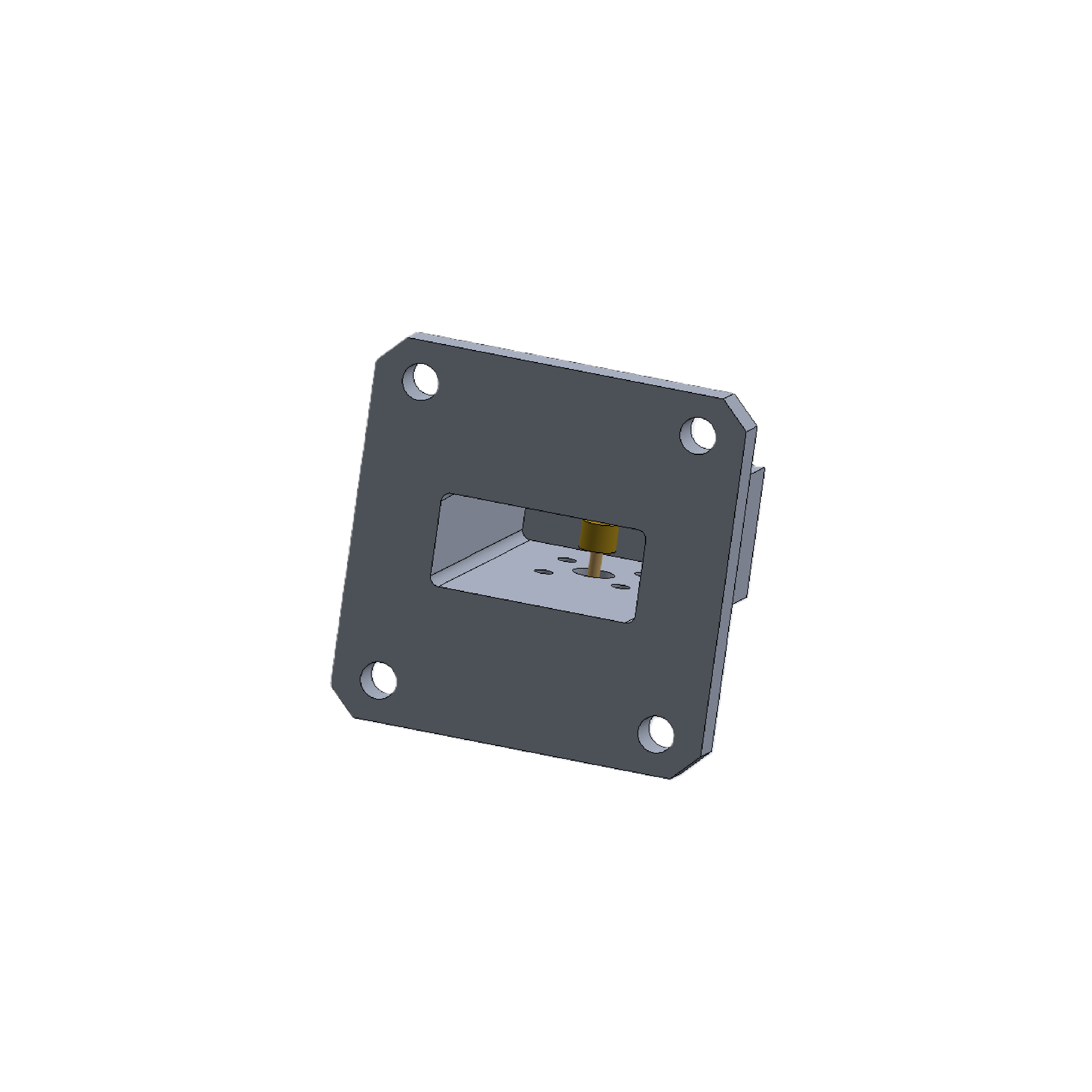

Precision internal probe design delivers minimal reflection and smooth RF transition across X-band.
Durable Stainless Connector
Equipped with a rugged passivated stainless steel SMA-Female port for dependable mating repeatability.
Taiwanese Precision
CNC machined from quality aluminum alloy in Taiwan ensuring accurate mechanical and RF tolerances.
Contact FT-RF Engineering Division
Contact our technical engineering division today to request official quotes or customized mounting solutions.
